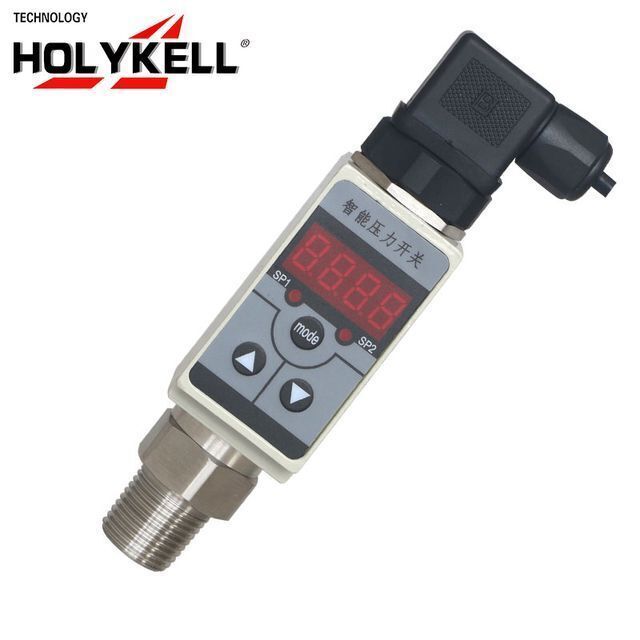

Holykell OEM New type pressure switch for water pump,water pump electronic pressure switch

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	4500 Piece/Pieces per Month water pump electronic pressure switch;	Max. Current:	20mAHOL,20mAHOL;
Output:	4~20mA/RS485;	Max. Working Pressure:	100MPa,100MPa;
Port:	Guangzhou;	Place of Origin:	Hunan China;
Brand Name:	HOLYKELL;	Specification:	water pump electronic pressure switch;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Working Temperature:	-20℃~80℃;
Packaging Detail:	Standard Carton or Wooden carton 2017 new type pressure switch for water pump,water pump electronic pressure switch;	Inside Material:	silicon oil;
Measurement Range:	-0.1~0~0.01~100MPa;	Net Weight:	0.6KG;
Model Number:	water pump electronic pressure switch;	Connection Interface:	M20*1.5 G1/2 (customized);
Max. Voltage:	220V AC 24V DC,220V AC 24V DC;

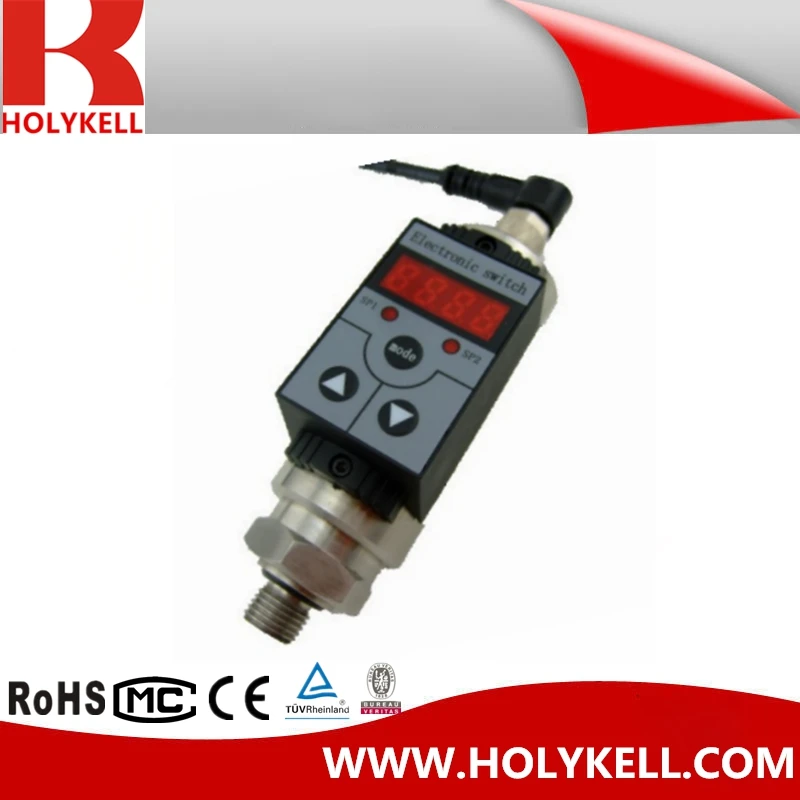

New type pressure switch for water pump,water pump electronic pressure switch

PS300 series pressure switch is an intelligent digital pressure measurement and control products, which with pressure measurement, display, output and control integrated. This product is a full electronic structure, use isolated silicon oil filled diaphragm as sensing components, the output signal is composed of high precision, low drift amplifier processing, signal send into the high precision A/D converter, the digital signals into the microprocessor can processing and through processing the signal can control two channels switch, which is monitoring and control of the pressure control system. The intelligent digital pressure switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.

(Kindly Check Here To Get Detail Information)

Features

²Measurement range: -0.1~100MPa

² Full stainless steel structure

²Multiple pressure ports

²Super brightness LED display

² Intrinsic safety explosion-proof type

² Conform to the state explosion protection standards

²Explosion-proof certificated, explosion-proof sign: ExiaIICT6

² Can provide up to two way control points or electronic switch quantity, contact point value and contact state can be set and control optionally, precise and reliable

Application:

²liquid, air,gas which is compatible with 316L stainless steel

² Applicable to petroleum, chemical industry, metallurgy, electric power, hydrology, industrial processes at the scene.

Specification:

Model: Parameter:	PS300S/ PS300M/PS300A1/PS300R
Pressure Range:	-1 Bar-1 Bar; 0-0.1 Bar.....1000 Bar / 0-2 Psi…15000 Psi Optional
Pressure Type:	Gauge pressure; Absolute pressure; Sealed gauge pressure; Negative pressure optional.
Safe Overload:	150% F.S.(standard)
Burst Pressure:	300% F.S. (standard)
Accuracy: (Linearity Hysteresis Repeatability)	≤ ±0.5%F.S ≤ ±0.25%F.S Including non-lin., rep. and hys. Optional
Display Units Accuracy:	≤ ±0.1%F.S
Display Units Span:	-1999~9999
Total Error Band:	0...50 °C max. ±0.5 %FS -10...70 °C max. ±1.0 %FS
Long Stability:	Standard: 0.1%F.S±0.05%
Working/Storage Temp:	-20℃~80℃
Tempe Compensation:	-10℃~60℃(standard)
Medium compatible:	Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel
Output:	Two switches output; One switch with 4~20mA or RS485 as output signal; Two switches with 4~20mA or RS485 as output signal optional
Power Supply:	12~36 V DC
Switch type:	PNP, NPN optional
Load Resistance:	<24Vdc 1.2A
Max power consumption:	<1w
Zero Temp. Drift:	0.03%FS/℃(≤100kPa), 0.02%FS/℃(>100kPa)
Body materials:	316 stainless steel (standard); 1Cr18Ni9Ti stainless steel optional
Material of diaphragm:	316L Stainless steel
Filling oil:	Silicon oil (standard); Fluorocarbon oil (Oxygen Services)

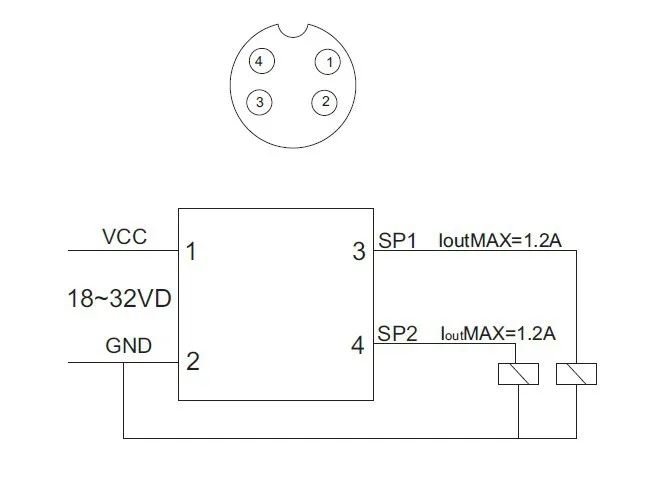

Electronic connection:	Plug: M12 (4-poles) Type IP65; M12*1-5P; DIN43650 optional
Mechanical vibration:	±20g
Pressure connect port:	G1/4’’male, G1/2’’male, 1/8’’NPT male, 1/4’‘NPT male, 1/2’‘NPT male and female optional. (by customized)

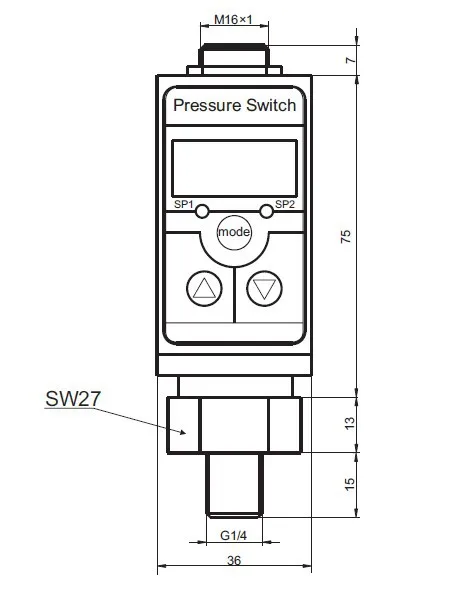

Dimension:	See below drawing
Water Proof:	IP65
Response time:	≤5ms
Endurance:	≥1 million cycles, 0…100 %FS at 25℃
