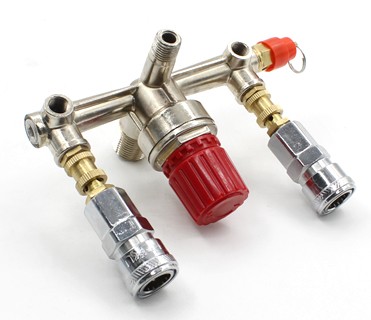

Compressor Pressure Switch Control Valve Manifold Regulator Pressure Gauge Pressure Switch

Click here to contact

Product details

Certification:	CE certification	maximum. Work pressure:	120 psi

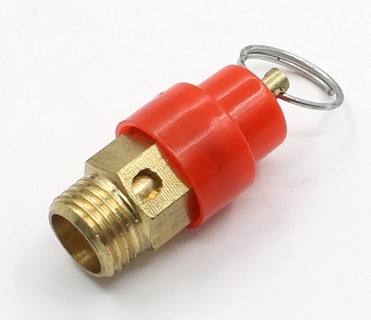

Package Included:	Pressure Control Switch Valves Manifold Regulators, Pressure Gauges, Safety Relief Valves	maximum. current:	20A
Origin:	China Shanghai	color:	as the picture shows
model:	PS-M01	brand:	bingo
Supply capacity:	10000 pieces per month	port:	Ningbo/Shanghai
Is it smart:	No	size:	17x15.5x19cm
maximum. Voltage:	240V	Packaging Details:	Air Compressor Pressure Switch Control Valve Manifold Regulator Pressure Gauge Carton
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal	Measuring pressure:	0-180 psi
Pressure range:	90-120 psi

Product Description

1. Automatic control. Automatic loading/unloading.

2. There is a red ON/OFF switch knob.

1x pressure regulator

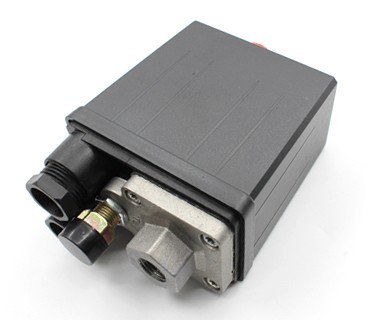

1x vertical cross pressure switch

1x air compressor valve

1x metal connection tube

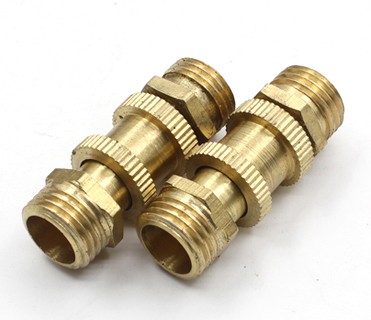

2 T valves

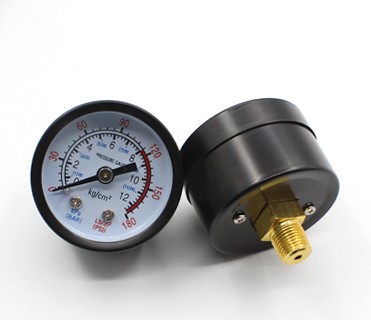

2x180psi pressure gauge

Product parameters

maximum voltage	240 volts
Maximum AMP Rating	20A
pressure range	90~120 PSI (The pressure is lower than 90 PSI, the compressor is turned on. The pressure is more than 120 PSI, the compressor is turned off. It is not adjustable.)
measure pressure	0~180 psi
color	as the picture shows
Dimensions (LWH)	17 x 15.5 x 19 cm / 6.69" x 6.10" x 7.48"
