color: | Black | model: | LF08V |
Burst pressure: | 10 bar | brand: | Love |
connect: | 1/8NPT, 1/4NPT, R1/8, R1/4, G1/8, etc. | Certification: | CE certification |
maximum. Voltage: | 250VAC | media: | Air, water, oil, etc. |
Whether smart: | No | application: | Cooling System |
Electrical connections: | 6.35*0.8 or 4.8*0.8 | delivery time: | Usually 15 working days |
Supply capacity: | 50000 pieces per month | Substrate: | brass or plated steel |
port: | Shanghai, Ningbo | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Packaging Details: | 200pcs/box | Origin: | Zhejiang, China |
maximum. current: | 5A | circuit: | SPST-NC, SPST-NO |

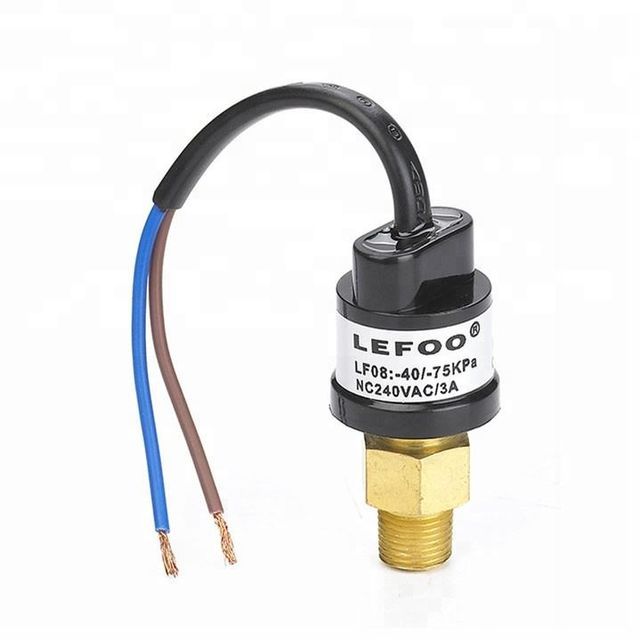

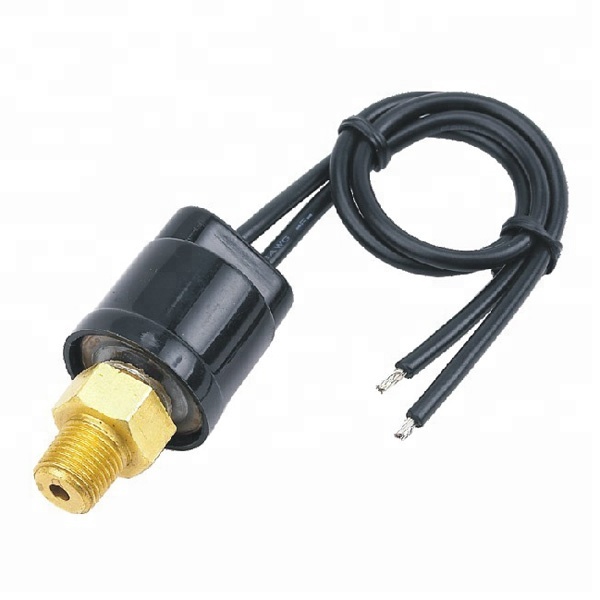

1. Product picture:
2. Product specifications:
The LF08-V vacuum switch is a self-resetting design pressure switch with a dead zone between closing and opening pressure set points. It can be used for vacuum pressure control of vacuum tanks, refrigeration equipment or indoor cooling units or remote outdoor condensing units of domestic cooling systems.
|
Typical applications: safety control/air conditioning/refrigeration/vacuum tank pressure control/automotive braking system |
Serial Number
|
LF08-V
|
Moderate
|
Air, water, engine oil, transmission oil, hydrocarbon media, coolant
|
pressure set point
|
-0.85 bar to 1.5 bar
|
withstand voltage
|
10 bar
|
burst pressure
|
100 bar |
range of working temperature
|
-30°C to ~80°C
|
switch type
|
SPST-NC, SPST-NO
|
power rating
|
120/240VAC, 3A 5~28VDC, 6A |
Dielectric strength
|
Open contact voltage of 750 Vrms
1550 Vrms terminal to header |
terminal
|
1/4” blade, lead wire
|
Lifetime under relevant load |
100,000 cycles |
connect
|
1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc. |
options |
Various connector thread sizes; Lead wires (potting and sealing); Protective caps.
|

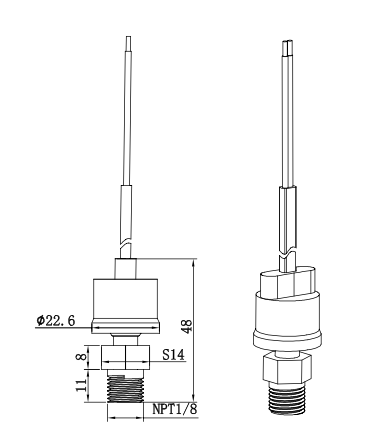

3. productDimensions (mm):

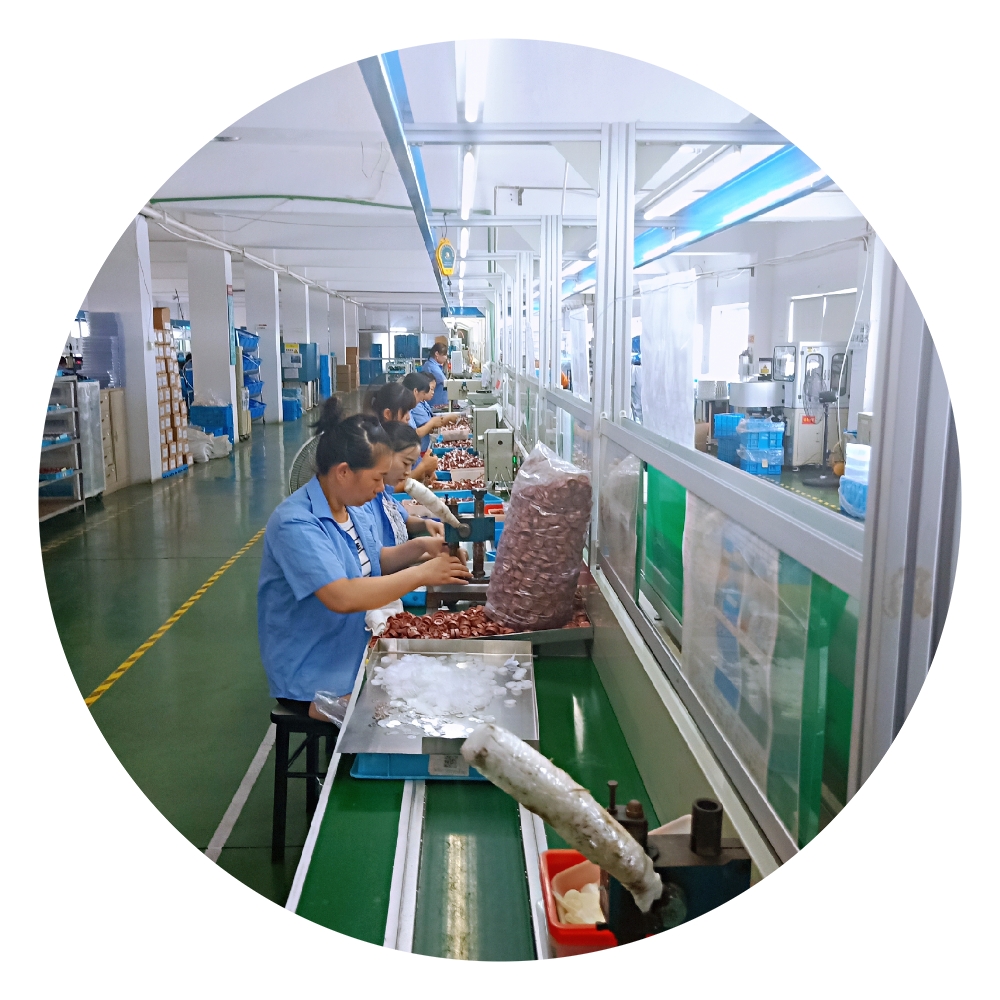

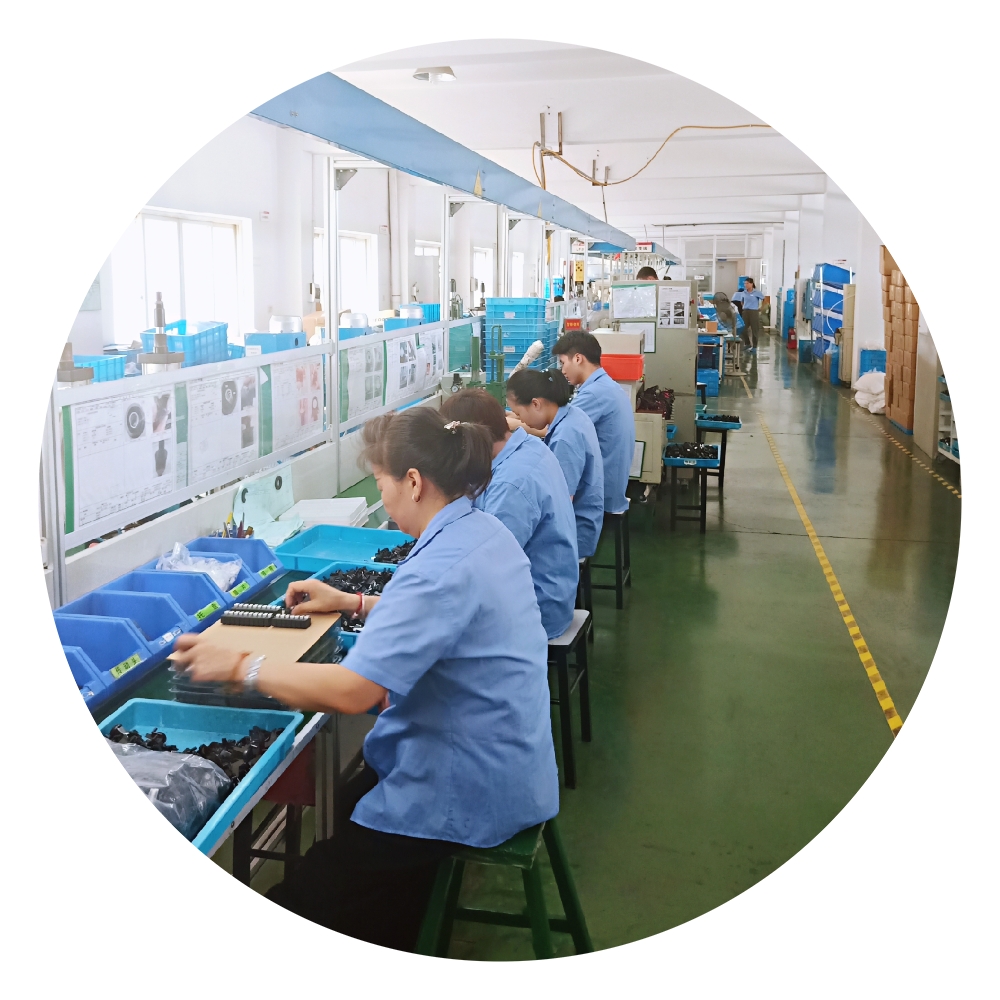

4. Production line:

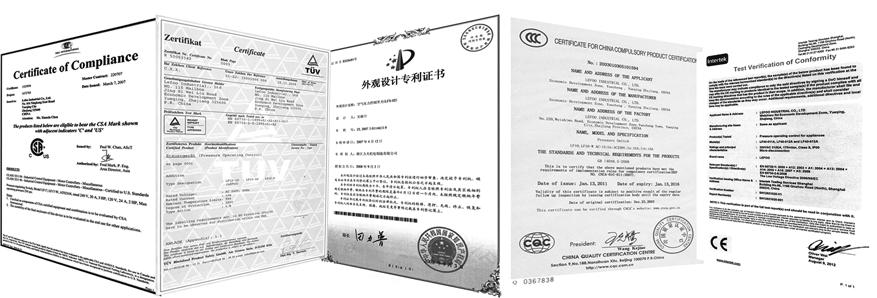

5. Patent:
6. Quality control:
7. Why choose us?
25 patents
45 products have obtained UL, CSA, VDE, CCC, CE certification
50 engineers team research and development
Cooperation experience with Fortune 500 members
8. Le Fu exhibition:
June 2018Shanghai Water Show
April 2018 Canton Fair
2018.4 China Refrigeration Exhibition
2018.3 MCE Milan
2018.1 AHR Chicago
9. Packaging and transportation:
if you want to know more
Please feel free to contact me for details!
