LFB Clean room differential pointer pressure gauge for health care building intelligence, fans or blowers pressure, furnace gas

Supplier: Zhejiang Lefoo Controls Co., Ltd.
Region: Zhejiang, China
Contact: Mr Daniel Zhang
Price: $15.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Selling Units:	Single item;	Single gross weight:	5.0 KG;
Pressure Range:	0-500PA;	Dimension:	120.65mm*55.6;
Brand Name:	LEFOO;	Place of Origin:	Zhejiang China;
Single package size:	56X28X16 cm;	Max. Voltage:	Consult the seller;
Max. Current:	20mA;	Starting Pressure Setting:	100PA;
Model Number:	LFB;	Application:	HVAC, CLEANROOM SYSTEM;
Max. Working Pressure:	1000kpa;	Weight:	about 560g;
Media:	AIR;	Product Name:	DIFFERENTIAL PRESSURE GAUGE;
Working Temperature:	-7℃~+60℃;

LFB differential pressure gauge is a kind of elastic pressure gauge which makes use of simple, non-friction magnetic spiral movement and rubber diaphragm as the sensitive element to measure the pressure. It indicates thepressure of tested gas by pointer, no matter it’s positive, negative or differential pressure. This design has the function of shock resistance, anti-shaking and overpressure proof. And it’s no necessity to fill with liquid, to avoid problem of gasification, freezingor smell.

It is widely used for measuring fan&blower pressure, filter resistance, wind speed, furnace pressure, orifice differential pressure, air bubble water level, liquid amplifier or hydraulic system pressure, etc.Meanwhileit’s also used for air gas ratio and automatic valve control in combustion processas well asmonitor of blood pressure and respiratory pressure in health care equipment.

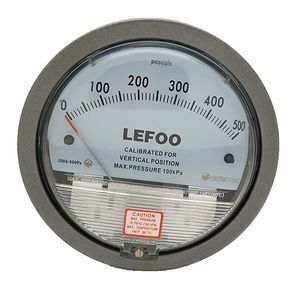

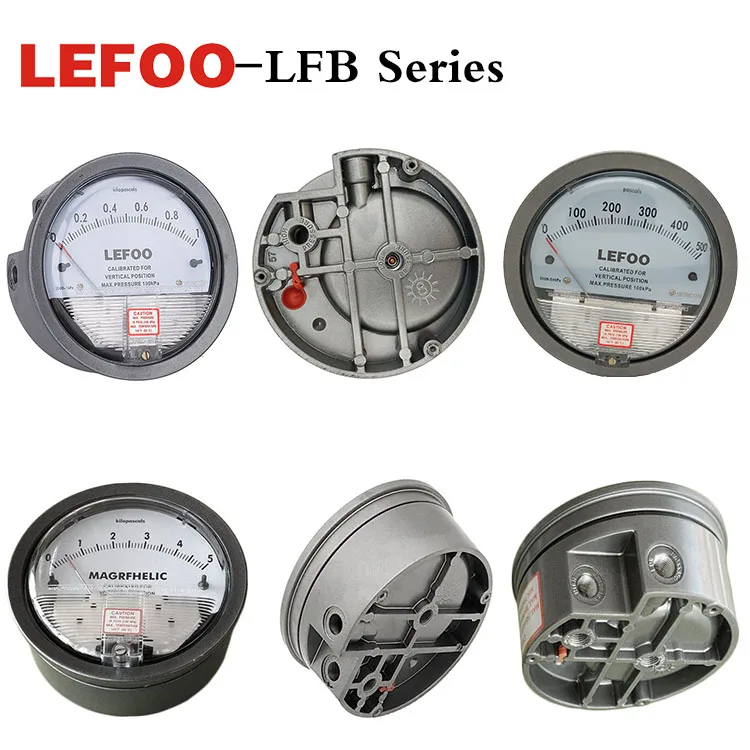

1. Product Pictures:
