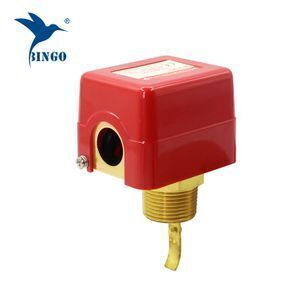

Economic vane water flow switch for fluid flow switch paddle flow switch

Supplier: Wenzhou Bingo Imp. & Exp. Co., Ltd.
Region: Shanghai, China
Contact: Mr Daniel Hu
Price: $6.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Base material:	ABS;	Place of Origin:	Shanghai China (Mainland);
Contact form:	SPDT;	Material:	plastic, brass, SS034,316;
Operating Temperature:	0℃~100℃;	Connection:	1/4'',1/2'', 3/4'', 1'', 1.25'', 1.5'',;
Supply Ability:	10000 Unit/Units per Month for Economic vane water flow switch for fluid;	Protection grade:	IP54;
Packaging Detail:	We have professional packaging staff in charge of the packing of the Economic vane water flow switch for fluid. If you have special requirments of the package, pls feel free to contact us. We can specially service for you!;	Connection size:	1/2'',3/4'',1'';
Brand Name:	BINGO;	Pressure:	<30bar of the white and red;
Port:	SHANGHAI/NINGBO;	Model Number:	Varies Models;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram,Paypal;	Flow Rate:	1.5-48.5 m3/h;
Media Type:	Liquid;

Product Description

Economic vane water flow switch for fluid

Paddle flow switch is a kind of speed type flow switch. It is by the water flow velocity impact block slice, the greater the flow velocity of water , the greater the force on the block slice. The force makes the block slice move, Triggering control signal . The baffle of water flow switch can be designed according to the size of the water flow ,and this can reduce the water resistance produced by the water flow through the water switch, and that can reduce the pressure loss of water system.

Detailed Images

ABS shell.

Solid texture, waterproof and dustproof, beautiful appearance.

Screw thread interface.

Made of brass/stainless steel, different models can be made.

Target slices

Stainless steel, with 5 targets.

Product parameter

Model	FS-M1003
Fluid medium	water,ethylene glycol and other non-hazardous liquid
Housing material	ABS
Base material	Brass
Paddle material	SUS 304(1.5",2.5",3.5",5",6")
Electriccal rate	15A,125VAC/250VAC
Contact form	SPDT
Fluid temperature	Max.100℃
Max.fluid pressure	1.5Mpa
Protection grade	IP54
Connection	G3/4"

Installation diagram

Normally closed

When the flow goes up to the switching value, the connection terminal 1-2 is connected, and the flow drops to the lower switching value. 1-3 is connected.
