Factory direct sales DN25 G1 air conditioning power central air conditioning boiler copper control valve large flow switch

Supplier: Zhongshan Qingong Sensor Technology Co., Ltd.
Region: Guangdong, China
Price: $14.10 / 1 - 49 pieces
$12.70 / 50 - 99 pieces
$12.00 / 100 - 199 pieces
$11.60 / >=200 pieces
Min. Order: 1 piece

Click here to contact

Product details

model:	SK-DN25-DB	media type:	liquid
Is it smart:	Do not	place of origin; place of origin:	China
Packaging Preview:		payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Packaging Details:	carton	Certification:	Chief Executive
brand:	Qin Gong sensor	Operating temperature:	-20~120℃

Company Profile

China, GuangdongProvince

Zhongshan Qingong Sensing Technology Co., Ltd.

Welcome

We have 10 years of experience in the production of flow switches, insisting on professionalism, focus, single-mindedness, and customer-centricity are our continuous progress.

How the flow switch works

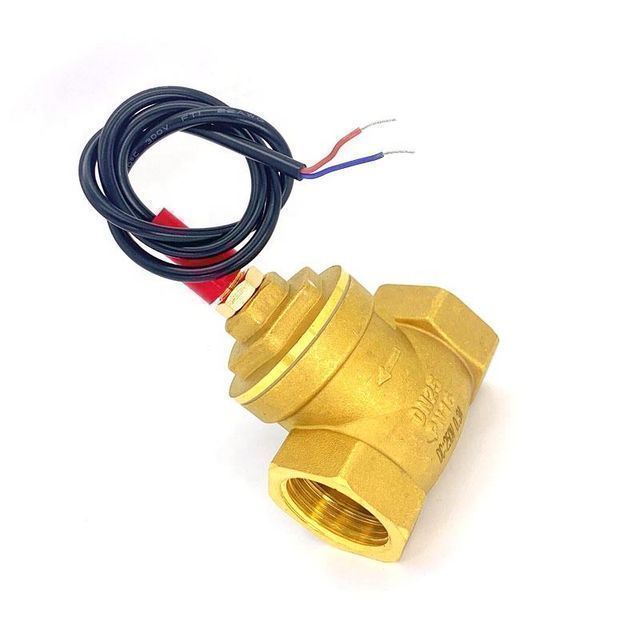

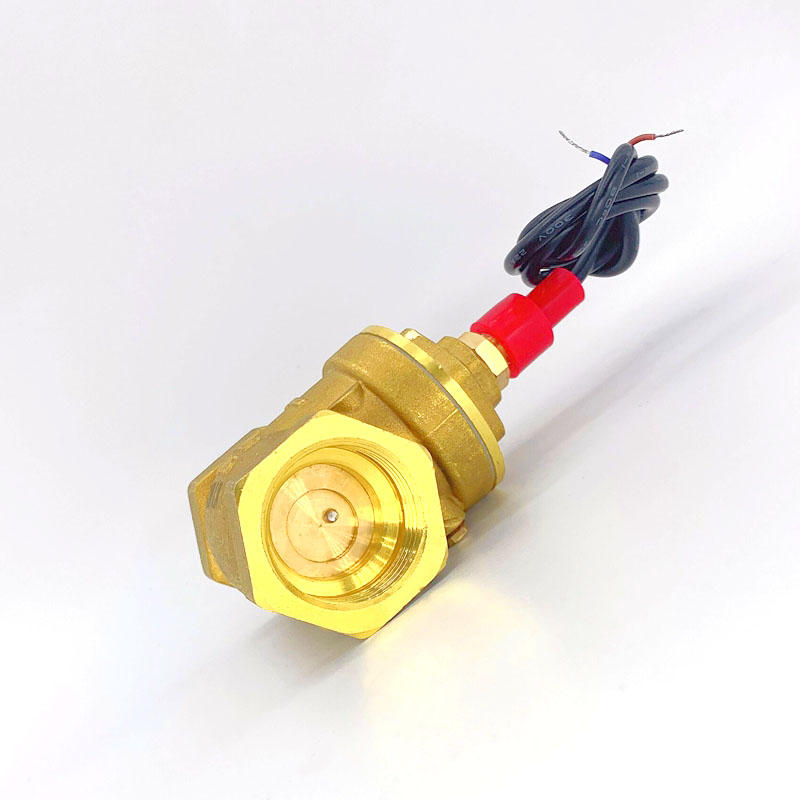

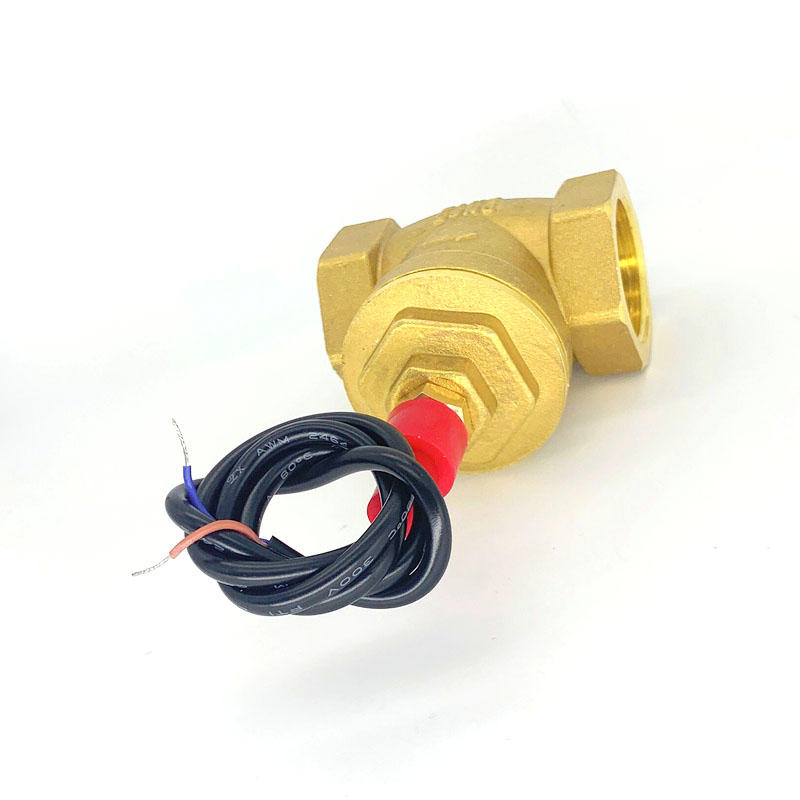

SK-DN25-DB, flow switch

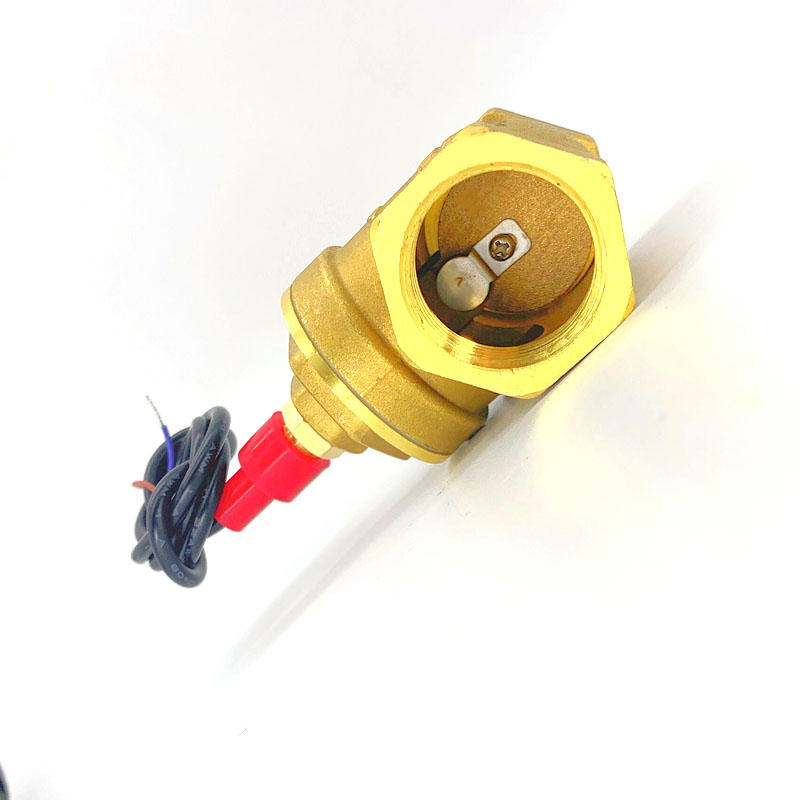

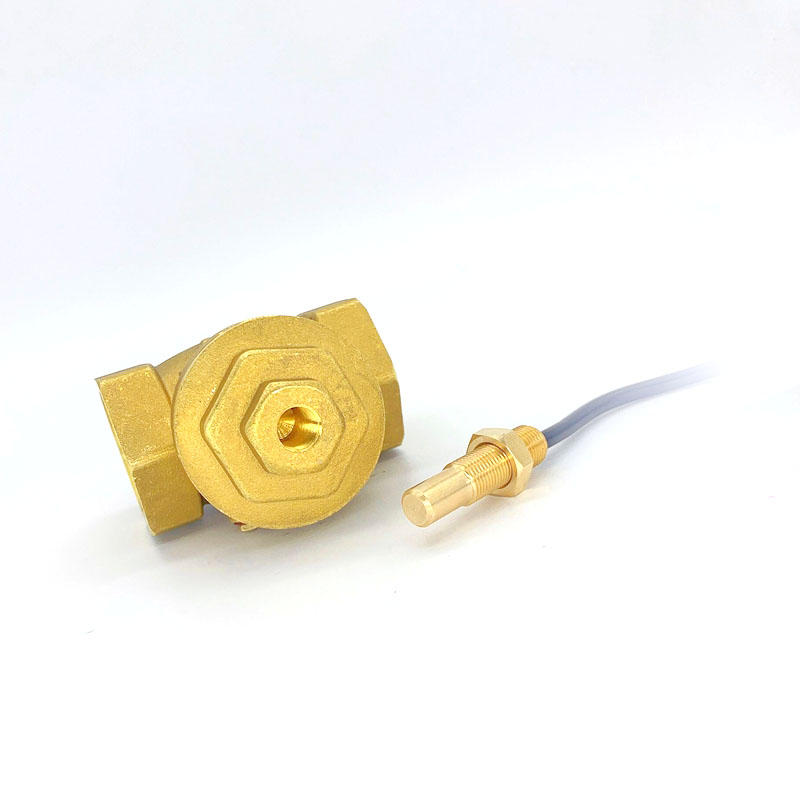

The inner baffle is pushed up by the water flow, and the reed switch in the outer sensing rod senses the magnetic trigger signal (ON) above the baffle, and automatically resets the disconnection signal (OFF) when there is no water flow.

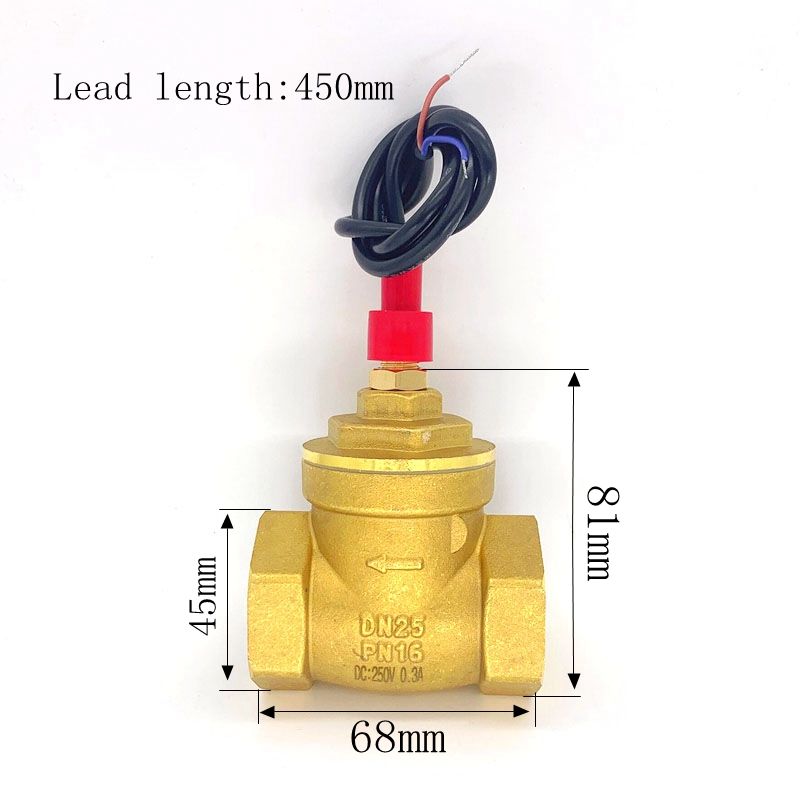

Flow switch parameters

switch type	Reed Switch/Normally Open	Operating temperature	-20~120℃
start process	7-8L/min	product material	brass

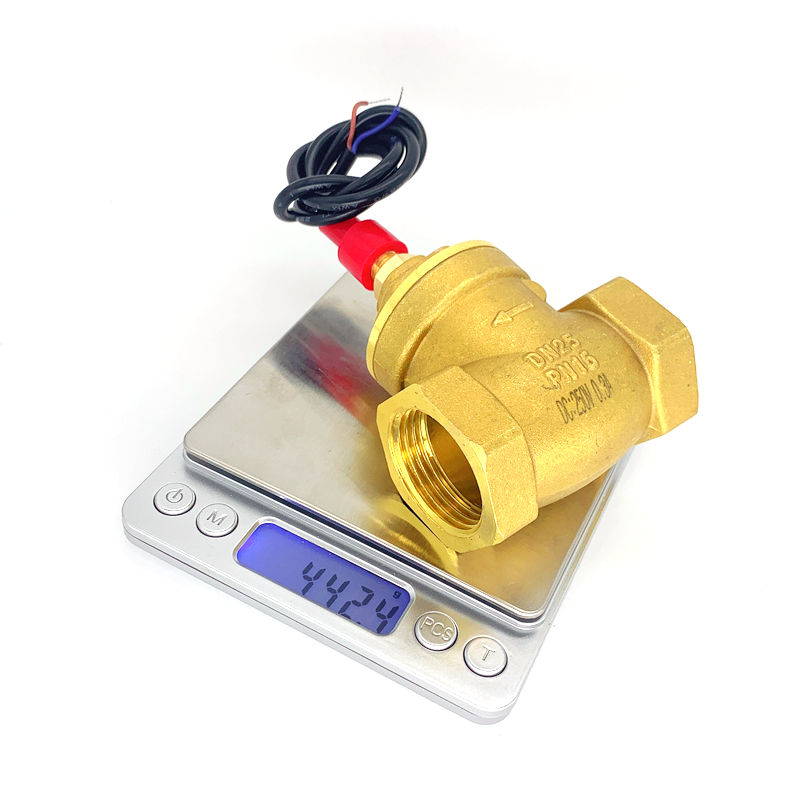

Maximum flow	60L/min(MAX)	product weight	443 grams
work pressure	0.05~1.6MPa	Installation method	Horizontal installation

Electrical Characteristics of Reed Switches

Name	Test Conditions	unit	Numerical value
Resonant frequency (typ.)		hertz	3200
Switching power (max)		W	70
Switching voltage DC (max)		five	200
Switching voltage AC, RMS value (max)		five	250
Switching current (max)		Well	1000 DC/AC
Breakdown Voltage (min)		five	400
Contact Resistance (Initial Max)	excitation	mΩ	90 (27 hours)
Contact Resistance (Initial Typical)	excitation	mΩ	60 (27 hours)
Contact capacitance (max)	without test coil	pF	0.2
Insulation resistance (minimum)	Relative humidity≤45%	mΩ	10⁶
