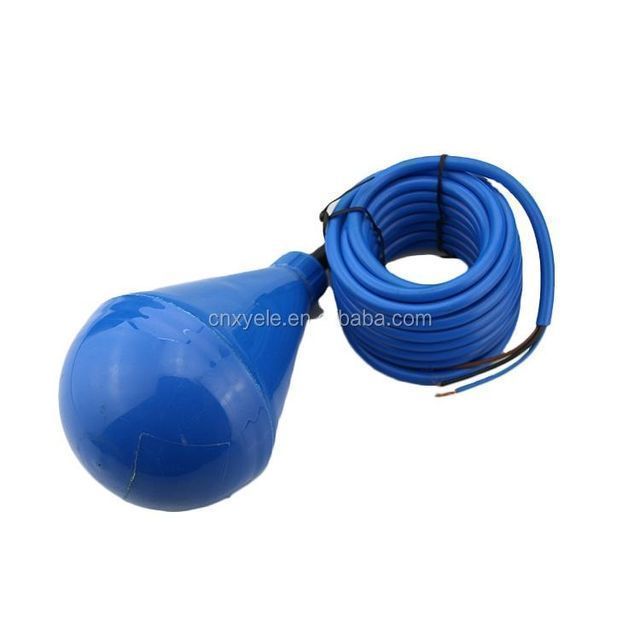

Hot selling newest plastic automatic mercury level switch/electric water tank pump float switch

Supplier: Yueqing Xingyang Electron Co., Ltd.
Region: Zhejiang, China
Contact: Mr JUGUANG ZHENG
Price: $5.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

energy consumption:	<1.5KW	Packaging Details:	Standard export packaging
Is it smart:	Yes	Supply capacity:	25000 pieces per month
media type:	liquid	Certification:	ce
place of origin; place of origin:	Zhejiang, China	port:	Ningbo
current:	10A	model:	XYM15-5
Voltage:	220V	Working pressure:	Max 1bar
brand:	CNXY	payment terms:	Western Union, wire transfer
Operating temperature:	0° to 80°c

Specification:

Rated voltage: 250V(380V)/120V
Rated current: 16A(8A)/10A(8A)/10A(4A)
Working temperature: 0°C Mechanical life: ≥100.000 times
Electrical life: ≥50.000 times
Protection class: IP68CS

Length: 2m 3m 5m 10m 20m

feature:

Micro switch: 10(8)A 250V~10(4)A 380V
Switch currency: +++ ≥50 000 Switch work is professionally tested by VDE
Protection connection: T 70U
Protection: Waterproof
Maximum temperature: 70°C
Working pressure: max.1bar
Breaking capacity: 250V direct KW
Standard cable length: 5m ~ 100mm or according to customer requirements
Float: Polypropylene
Cable: Polypropylene jacket
Counterweight: Polypropylene sealed housing
Cable material: HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2, 3x0.75mm2, 3x1.0mm2
