Port: | Qingdao , Shanghai; | Power head power: | 4kw; |
Engine displacement: | 212CC; | Swing speed: | 360m; |
Supply Ability: | 5000 Set/Sets per Year; | Gradeability: | 28°; |
Model Number: | YXK1500; | Place of Origin: | China; |
Swing angle: | 180°; | Engine Type: | 4-Stroke; |
Name: | Manual pile driver/drill rig; | Packaging Detail: | Engine packaging: wooden box Rig packaging: Thicken protective film; |
Maximum torque: | 400kn.m; | Payment Terms: | L/C,T/T,Western Union; |
Drilling depth: | 0.5-1.5(m); | Power head speed: | 360rpm; |

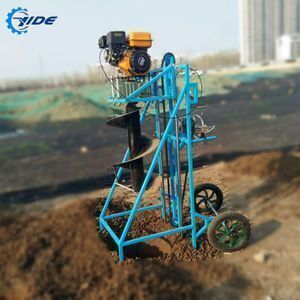

Custom manual 7.5HP small shelf earth auger drill digging machine
Highway guardrail drilling rig is a piling drilling machine widely used in highway, railway, construction, hydropower, port and other construction projects. with advanced product performance, high work efficiency, comfortable operation, and standardized components for key components, which can adapt to various harsh working environments and are ideal equipment for construction.
Pressure system: Advanced hydraulic system, high-quality hydraulic components and strict assembly process to ensure high efficiency and durability of hydraulic system.
Model design: The overall frame structure is excellent and the materials are completely GB. High strength, good stability, and industrial design, the operator's working space is more spacious.
Production process: The production process is more reasonable, and the wear parts are heat treated. The welding process is rigorous, the overall stress relief treatment of the frame welding, the deformation is reduced, and the testing equipment is perfect.
Pile machinery | Loaded pile driver |
Brand | YIDE |
model | YD920 |
Drilling diameter | 114-160(mm) |
Drilling depth | 1.6(m) |
Swing speed | 2(m) |
Swing angle | 180(°) |
Power head power | 45(kw) |
Power head speed | 1500(rpm) |
Maximum torque | 2500(kn.m) |
Gradeability | 15(°) |
Walking speed | 40(km/h) |
Vehicle weight | 4.2(t) |
Matching drill pipe type | Concrete drilling |
Dimensions | 420*228*270(cm) |
Hydraulic hammer impact frequency | 13-18HZ |
Hydraulic hammer flow | 60-851/min |
Hydraulic hammer working pressure | 14-16MPA |
Diesel engine power | 45kw |
Hydraulic system flow | 55-65ml/r |
Distance between wheels | 1670mm |
Machine quality | 4200kg |
Configuration details | Huichai 4102 engine (with integrated pile driver oil pump) 1 set, 260 hammer head 1, 1 hammer cake, 1 set of O-ring set, 1 set of wrench tool kit. |
Name | Electric pile driver/Spiral pile drilling machine |
Brand | YIDE |
model | YXK-350 |
Drilling diameter | 150(mm) |
Drilling depth | 2.2(m) |
Swing speed | 30(m) |
Swing angle | 360(°) |
Power head power | 5.5kw / 7.5kw |
Power head speed | 36(rpm) |
Maximum torque | 20(kn.m) |
Gradeability | 25(°) |
Walking speed | 3-5(km/h) |
Vehicle weight | 0.03(t) |
Matching drill pipe type | Spiral pile nail |
Dimensions | 2200*500*450mm(cm) |
Motor voltage | 380V |
Motor phase number | Three-phase electricity |
Mobile mode | Push the wheel |
Machine weight | 150-220KG |
Drilling speed | 2 minutes / meter |
Rotating speed | 36 rev / min |
Transmission mode | Upper slide chain drive |
Lifting method | Manual hoist |
Slide rail diameter | 30MM |
Pile length range | ≤2 MM |
Pile diameter range | ≤110MM |
Jining Yide Construction Machinery Co., Ltd. located in jining, shandong province. Yide Is a professional machinery import and export enterprise. main products are rollers, excavators, loaders, road rollers and various mechanical accessories. Our products are of excellent quality and have professional technicians to do after-sales service. Some products have passed CE certification .The product has been welcomed by many foreign customers .
