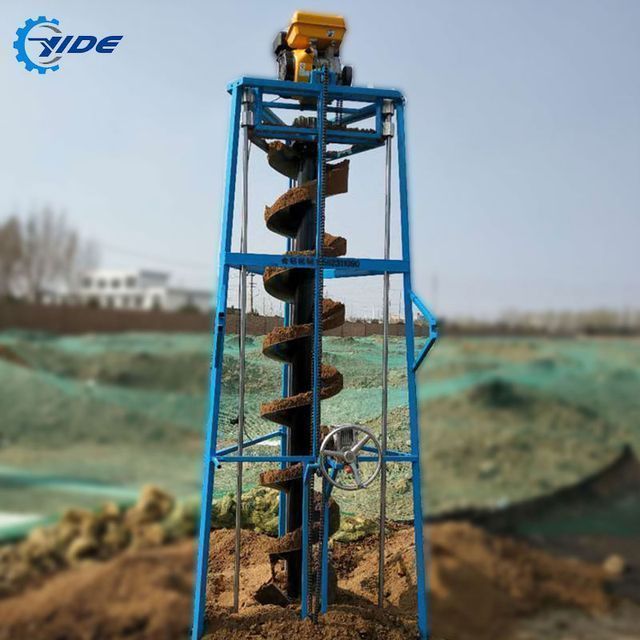

use: | planting, digging, driving, drilling | Name: | Triangular rod pile driver |
Engine type: | Four-stroke | Power type: | gasoline |
suitable: | Electric power communication engineering, tree planting, piling, drilling | Rig height: | ≤ 2800MM |
Number of optical axes: | 3 | payment terms: | L/C, T/T, Western Union |
Origin: | China | Packaging Details: | Engine packaging: wooden box Rig packaging: thickened protective film |
model: | YXK-2500 | Drilling depth: | 500-2500MM |
Optical axis diameter: | 25mm | port: | Qingdao, Shanghai |
Supply capacity: | 5000 sets per year | Drilling diameter: | 200-460MM |
Four-stroke high-horsepower pulley auger
Highway guardrail drilling rig is a piling drilling machine widely used in road, railway, construction, hydropower, port and other construction projects. The product has advanced performance, high work efficiency, comfortable operation, standardized key components, and can adapt to various harsh working environments. It is an ideal equipment for construction.
Pressure system:Advanced hydraulic system, high-quality hydraulic components, and strict assembly process ensure that the hydraulic system is efficient and durable.
Model design:The overall frame structure is excellent, and the materials used are completely national standard. High strength, good stability, industrial design, more spacious working space for the operator.
production process:The production process is more reasonable, and the wearing parts are all heat-treated. The welding process is rigorous, the overall frame welding is stress-relieved, the deformation is reduced, and the testing equipment is perfect.
Pile machinery | loading pile driver |
brand | Yide |
Model | YD920 |
Drilling diameter | 114-160(mm) |
Drilling depth | 1.6(m) |
swing speed | 2(m) |
swing angle | 180(°) |
power head power | 45(kW) |
power head speed | 1500(rev) |
Maximum torque | 2500(km) |
Gradeability | 15(°) |
walking speed | 40 (km/h) |
vehicle weight | 4.2 (tons) |
Supporting drill pipe model | concrete drilling |
aspect | 420*228*270(cm) |
Impact frequency of hydraulic hammer | 13-18HZ |
Hydraulic hammer flow | 60-851/min |
hydraulic hammer working pressure | 14-16MPA |
Diesel power | 45kw |
hydraulic system flow | 55-65ml/rev |
wheelbase | 1670mm |
machine quality | 4200 kg |
configuration details | Huichai 4102 engine (with integrated pile driver oil pump) 1, 260 hammer 1, hammer cake 1, 1 set of O-rings, 1 set of wrench tool kit. |
Name | Electric pile driver/screw pile driver |
brand | Yide |
Model | YXK-350 |
Drilling diameter | 150(mm) |
Drilling depth | 2.2 (m) |
swing speed | 30(m) |
swing angle | 360(°) |
power head power | 5.5kw / 7.5kw |
power head speed | 36(rev/min) |
Maximum torque | 20(km) |
Gradeability | 25(°) |
walking speed | 3-5(km/h) |
vehicle weight | 0.03 (tons) |
Supporting drill pipe model | screw pile |
aspect | 2200*500*450mm(cm) |
motor voltage | 380V |
Number of motor phases | Three-phase power |
mobile mode | push the wheel |
machine weight | 150-220KG |
Drilling speed | 2 min/m |
Rotating speed | 36 rpm |
transfer method | Sliding chain drive |
Hoisting method | Manual hoist |
Rail Diameter | 30mm |
Pile length range | ≤2 mm |
pile diameter range | ≤110MM |
