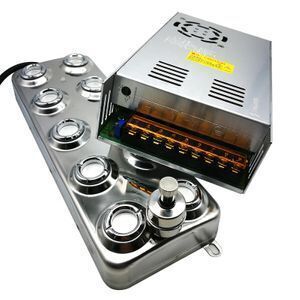

Industrial Humidifier 10 Head 5500ml Transducer Ultrasonic Mist Fogger Mist Maker Fogger

Supplier: Beijing Quanxin Ultrasonic Co., Ltd.
Region: Beijing, China
Contact: Ms Nancy Zhao
Price: $110.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Type:	Foam box and carton packing or packing as required ( Industrial Humidifier 10 Head 5500ml Transducer Ultrasonic Mist Fogger Mist Maker Fogger);	Place of Origin:	Beijing China;
Single gross weight:	3.5 KG;	Certification:	RoHS, CE, FCC;
Humidification Amount:	5000ml per hour;	Frequency:	1.7mhz;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Water Depth:	4-9cm;
Weight:	3.5kg;	Condition:	New;
Power:	300W;	After-sales Service Provided:	Free spare parts;
Single package size:	30X30X30 cm;	Size:	40-90mm;
Voltage:	220V 50HZ or 110V 60HZ;	Warranty:	1 Year;
Selling Units:	Single item;	Application:	Atomizing;
Dimension(LWH):	2539267MM;	Product name:	10 head 5500ml Ultrasonic Humidifier;
Type:	XQA5000;	Particle Size:	0.5 Micron;
Brand Name:	QXULTRASONIC;	Output Voltage:	36V AC/DC;

Industrial Humidifier 10 Head 5500ml Transducer Ultrasonic Mist Fogger Mist Maker Fogger

What is the trouble in business?

Worry about the quality and after-sale warranty ?

Which water we need to use?

What is the water level?

What is the life and How can replace the atomizing piezo?

Can customize required atomizer ?

Need your own logo on products?

Contact US

Slove all your worries with one-step service!

Listen and see our clients feedback, will send our after-sales report.

Tell us your application ,our professional team will reply you within 24 hours. Help you to choose the suitable products.

The life of piezo is above 4800 hours, The important is that we can send the free piezo and key with order.

Real pictures before sending.

Feedback

Product Description

Main Features of Ultrasonic Mist Maker Fogger

Design Features	Strong sterilization Simple and convenient operation Safe and reliable
Piezo Material	Silver electrode. Compared to Nickel or titanium electrode, the piezoelectric ceramic with silver electrode has the advantages of Acid .alkali resistant,and resistant to cavitation corrosion. The electrode strength high,not easy to scale,the actual characteristics of long service life
Atomizing Quantity	A large amount of fog and low requirement for water quality,longer life etc

Advantages of our Ultrasonic Mist Maker Fogger

♥ The stronger adaptability of atomized water quality, using pure water or tap water can work normally.

♥ Transformer scope is wide, guarantee it can still normal use even if the voltage of power supply has big change.

♥ Equipped with transformer polarity protection circuit,which can prevent damage atomizer when we connect the wrong the negative and positive.(if we connect the wrong negative and positive, it will not work )

♥ Start delay circuit, to avoid damage to the circuit because of big current when we let them work.

♥ A single nozzle line using the independent design,and adopt the over-current protection circuit, so if there is any one of nozzle which was damaged,which will not affect the other nozzle.

♥ The machine current affected by voltage and temperature is less, because of current of each nozzle adopt electronic automatic adjustment, then working voltage and temperature will have less effect for the total working current.

The working current will reduce with temperature increasing.but it does not affect the mist amount

It is to avoid the power tube which is too hot,and current increase. Then damage to ultrasonic atomizer.

♥ Adopts the high thermal conductivity, corrosion resistant ability, good mechanical strength of the metal shell, reducing temperature difference between ultrasonic atomizer interna and water. then prolong the service life of the product.

♥ Low temperature and big atomizing quantity design

♥Shell adopts stainless steel

The Specification of Ultrasonic Mist Maker Fogger

Type	XQA5000
Atomizing Quantity	Above 5000ML
Size	2539267MM
Working Frequency	1.7MHZ
Working Temperature	1-45 ℃
Over-temperature Protect	50℃
Water Level	40-90MM
Power Supply	100-120v. 220-240v
Working Voltage	DC 48V
Power	300w
LED	1pcs
Diameter of piezoceramics	20mm
Cable	1.4m
Material	Stainless Steel

If you are interested in our product,

Pls just feel free to send us your inquiry.

We wil try our best to quote the competitive price for you!----- Contact Us Now

Product Picture

Remark: We will supply the required different standard plug as need.

Related Ultrasonic Mist Maker Fogger

Working Effect of Ultrasonic Mist Maker Fogger

Some Application of Ultrasonic Mist Maker Fogger

♥ All kinds of humidifier

♥ Cold fog beauty machine

♥ Oxygen bar lamp

♥ Rockery, adornment miniascape

♥ Handicraft products produce fantastic spray humidification effect

♥ Also can be directly used in the home of ordinary container

♥ Maintain indoor appropriate moisture, make skin healthy and moist environment.

♥ If add a drop or two of sweet fume fluid in the water or disinfectant, will bring you a clean sterile,full chamber waves sweet,like a fairyland of the ideal space.
