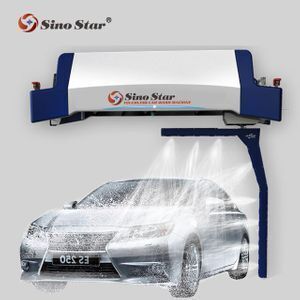

Best quality automatic car washing machines price for sale/ touchless car wash machine system for luxury car

Product details
Product name:Car washing machine system price;Single package size:100X50X50 cm;
Warranty:3 years;Size:10000*65000*3500mm;
Portable air drying system:3KW;Material:Stainless Steel;
Brand Name:Sino Star;Rail length(mm):8200mm;
Place of Origin:Jiangsu China;Type:Car Washer;
Car wash(no engine room):9300*4000*3500 mm;Model Number:S9;
Sewage disposal system:5T/h;Two guide center distance(mm):3340mm;
MOQ:1 Set;Package Type:Exporting package;
Car wash(contain the engine room):9300*6200*3500 mm;Dosage of detergent:0.2L/car;
Washing system of the chassis:3KW;Selling Units:Single item;
Single gross weight:3,000 KG;

Best quality automatic car washing machine/ touchless car wash machine system for luxury car

Product Description

Click here to contact supplier

Product name:  touchfree car wash   Model : S9

Click following  link to watch the Demo video of whole cleaning process.



https://cloud.video.taobao.com/play/u/2153292369/p/1/e/6/t/10300/50091378572.mp4



1:Technical Parameters SinoStar Car washing machine S9 Other Brand Car washing machine
L arm raw materialHigh quality real 304 stainless steel
Water pump station size

L*W*H=1200*810*639mm

L*W*H ( feet )=3.937*2.658*2.097


Chemical Station size

L*W*H=1100*471*1351mm

L*W*H ( feet )= 3.609*1.546*4.433


Rail length7500mm~8000mm adjustable
Shipment weight / Volume3.3Ton 15CBM2.6 Ton, 11CBM
Standard machine installation size

L*W*H=8000*3700*3400mm

L*W*H ( feet )= 26.247*12.139*11.155

L*W*H=7600*3600*3350mm



Power Requirements380V/22Kw, 50Hz/60Hz
Air Switch100A air switch80A
Water pump motor power18.5KW/120Bar working pressure15kw/80Bar
Fan motor power22KW/ Pressure 12000pa/ Air flow 24000CBM/H, saving 10% energy20.5Kw / full pressure 11000Pa / air volume 23000 cubic meters / h
Longitudinal motor power0.55KW asynchronous frequency control0.37Kw stepless frequency control
Transversal motor power1KW digital drive motor0.75Kw digital drive motor
Rotary motor power1KW digital drive motor0.75Kw digital drive motor
Chemical system 0.37KW
Central processing unit PLCindustrial intellient digital control system
Drive Systemvariable frequency speed control + digital driver
Detection systemintelligent three-dimensional detection system
Sensing SystemUltrasound+ Absolute value of the digital encoder
Speed360 wash 28 seconds, energy saving 60%
Wash liquid consumptionDepends on liquid proportioning
Polish shampoo consumption10ml-40ml
Crystal wax coating consumption18.5L could apply for 1000 cars
Water consumptionStandard wash 94L/car, Fine wash 150L/car
Electricity consumptionStandard wash 0.52 kW·h/car, Fine wash 0.99 kW·h/car



2:Special Feature

*Customers can set chemicals consumption automatically on touch screen according to the dirty degree of vehicles.

*Customers can add or move any single step on touch screen



3:Key Features
1. Intelligent unmanned systems, self-service card payment system.
2. Smart 360 technology.
3. Intelligent chemical mixing system.
4. Innovative suspension system non-resistance rails.
5. Unique embedded fast drying system.
6. Digital voice security alarm system.
7. Faulty self-checking system.
8. One key anti-frozen system

Buy Optional Over Glow Hi-Gloss Application System for S9 with colorful LED light will attract drivers off street and onto your wash bay !

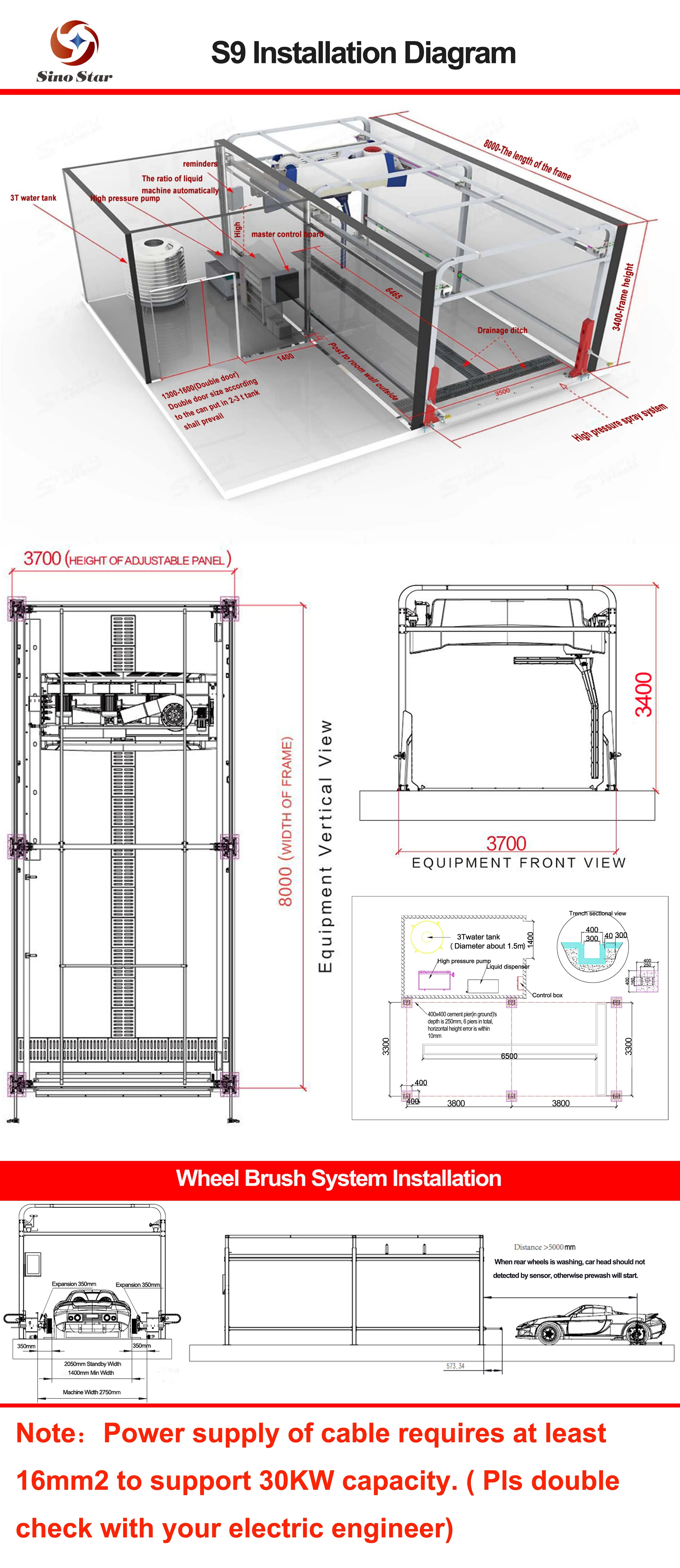

Installation drawing

Packaging & Shipping

Factory

Sucessful cases

More Products

More related products pls kindly click below:




FAQ

Q: How do you control your production quality?

A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before each shipment.



Q: Can I have a visit to your company before placing an order?

A: Sure, welcome to visit SINO STAR. Our factories locates in Jiangsu province and Zhejiang province, our showroom is in Wuxi, Jiangsu province.



Q: What kind of support can I get if I am SINO STAR’s agent?

A: Bottom price, free catalog and gift for marketing, on site training.

Q: May I know the Lead time?

A:The lead time of our machine is 15 to 30 days.



Q: What is your payment terms?

We accept Alibaba Trade Assurance, TT, LC, etc.



Q: Can you provide the whole workshop automotive equipment?

A: Yes. we have 6 series contains nearly all automotive equipment.



Q: How long is the warranty?

A: Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
