Digital Signal: | HART protocol; | Name: | Densimeter For Measuring Mixture Liquid And Liquid With 4-20MA Output; |
Temperature Range: | 0.2 °C; | Supply Ability: | 1000 Set/Sets per Month; |
Density Range: | 0 to 2g/cm3,0 to 3g/cm3; | Current Output: | 4 ~ 20mA; |
Packaging Detail: | wooden carton; | Brand Name: | AUTO; |
Model Number: | MD-3051; | Place of Origin: | Shandong China; |
Payment Terms: | T/T,paypal; | Accuracy: | 0.001g/cm3; |
Certificate: | ISO9001:2000; | Port: | Yantai; |
Resolution: | 0.0005g/cm3; |
Product Description:

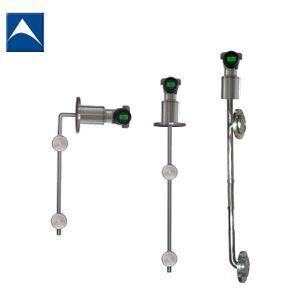

MD-3051 series online liquid level densitometer can
be used for online density measurement of various liquid
and liquid mixture. It is widely applied to the petrochemical
industry, food industry, dairy industry, paper industry,
chemical industry, biopharmaceutical industry and other
production sites.
Technical Parameters
Current Output | 4 ~ 20mA |
Digital Signal | HART protocol |
Power Supply | 16 ~ 30V DC (24V DC is recommended) |
Density Range | 0 to 2g/cm3,0 to 3g/cm3 |
Accuracy | 0.001g/cm3 |
Resolution | 0.0005g/cm3 |
Temperature Range | 0 ~ 100 °C |
Temperature Accuracy | 0.2 °C |
Ambient Temperature | -10 ~ 60 °C |
Humidity Range | 0 ~ 90% |
Remarks
When ordering, please specify the length of body, sensor
spacing, the medium, the range and the site conditions,
such as explosion-proof, corrosion, sanitary, general, etc.
Installation Information
Straight Mounted,pipe side-mounted,Flange side mounted
