Hot Sale Ultrasonic Flow Meter TUF series water flow meter portable ultrasonic flowmeter TUF-2000

Product details
Optional transducer:Clamp-on/Mounting bracket Clamp on Transducer;Selling Units:Single item;
Application:ultrasonic flow meter;Single gross weight:4 KG;
Model Number:TUF-2000H;Product Name:Ultrasonic Flow Meter TUF;
power supply:220VAC, 24VDC, battery;communicating protocol:modbus protocol, RS485;
temperature:-40-90C, -40-160C;signal output:4-20mA , pulse, relay;
application:measuring the flow rate of liquid without connecting the fluid;Package Type:cartons package. Hot Sale Ultrasonic Flow Meter TUF series water flow meter portable ultrasonic flowmeter TUF-2000;
Brand Name:AUTO;Place of Origin:Shandong China;
Pipe size:DN15mm~6000mm;Single package size:40X15X40 cm;
item:wall mounted ultrasonic flow meter,clamp on sensor flow meter;

Hot Sale Ultrasonic Flow Meter TUF series water flow meter portable ultrasonic flowmeter TUF-2000



TUF-2000 ultrasonic flow meter
Product Description

 Product Introduction

Ultrasonic flowmeter is a non-contact instrument,Not only can the media flow measurement with

 large diameter can also be used to measure is not easy to contact and observation of medium.Its

 measuring accuracy is high,  the interference is almost not affected by various parameters of the

 measured medium.In particular,  can solve the strong corrosive,  non conductivity, radiation and

 flammable and explosive medium flow measurement.

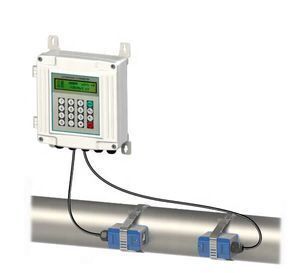

 Fixed Type Ultrasonic flow meter TUF-2000SW

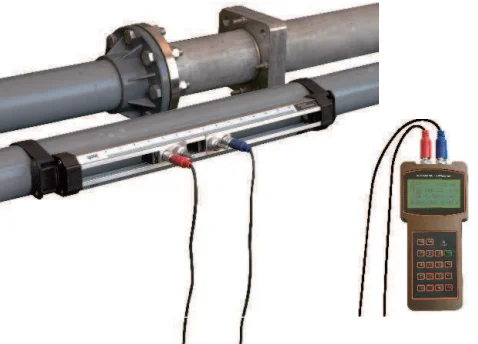

Portable Type Ultrasonic flow meter TUF-2000H

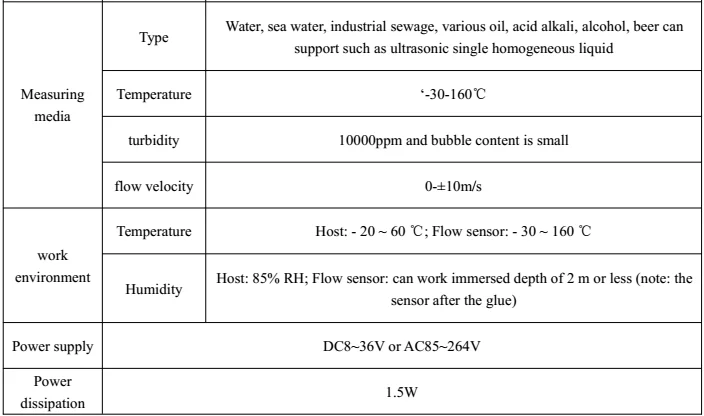

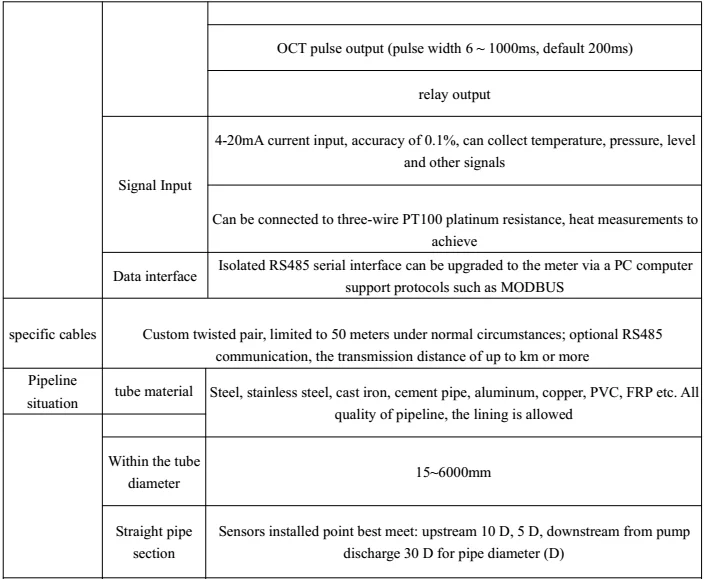

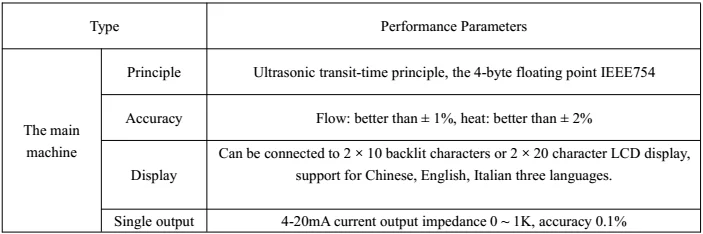

ultrasonic flow meter parameter:

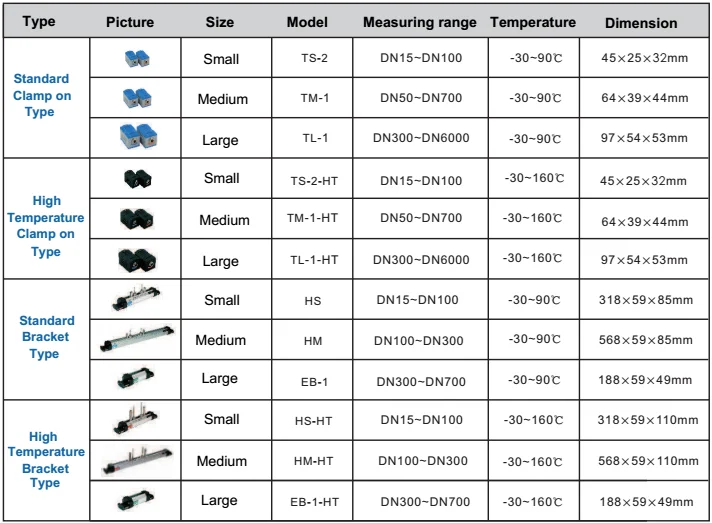

Optional Transducers

Wide Application:

Ultrasonic flow meter is mainly used in the following conditions and Industry

1. Environmental protection: municipal sewage measurement

2. Oil: native flow measurement

3. Water Service Company: River, river, reservoir water measurement

4. Petrochemical Industry: petrochemical product process flow detection

5. Paper: paper pulp flow measurement

6. Pharmaceutical factory: chemical flow measurement

7. Power plant, thermal power plant: the production process water consumption measurement,

    cooling circulating water flow measurement

8. Food: fruit juice milk flow measurement of liquid flow measurement

9. Schools, scientific research institutes: measuring water or high temperature heat conduction oil

10. Pot inspection, Metrology Institute: fluid metering



Packaging & Shipping

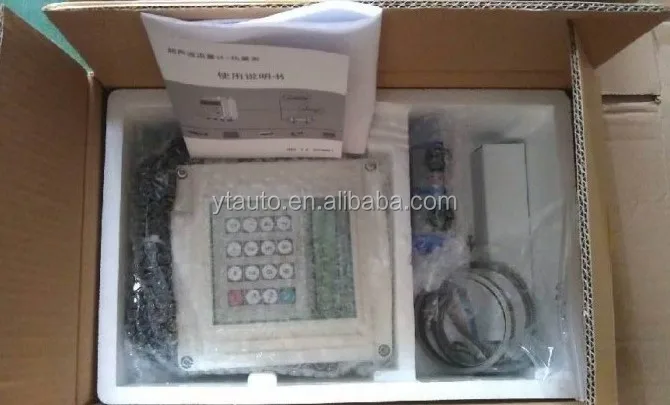

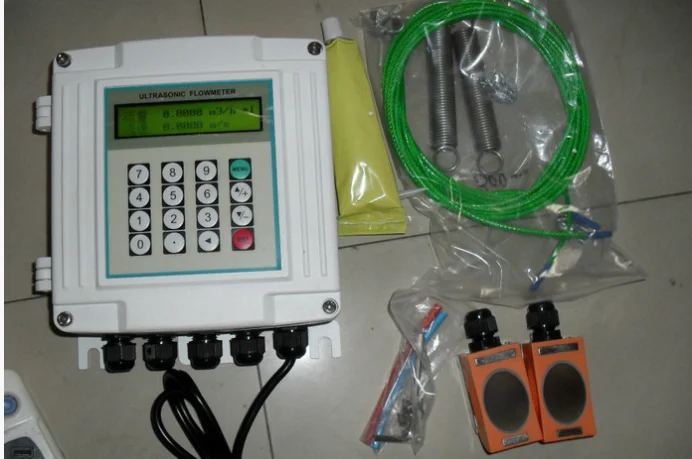

 Package





For different models please Click Bellow:

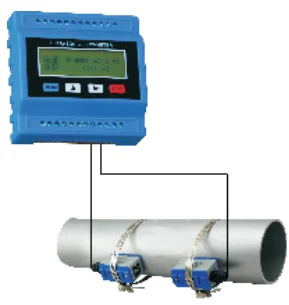

 Portable Type TUF-2000H                                 Module Type TUF-2000M





Company Information

Company Introduction





Q: Are you trading company or manufacturer ?

A: We are factory. Our company is one of the largest instruments manufacturer in Shandong Proveince, China.

Q: How long is your delivery time?

A: For small orders, we can deliver within 3-5 working days, for bulk orders, we usually need 15 working days or longer. But if you need goods urgently, we can arrange expedited production.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could provide the sample. But, you need to pay for the cost.

Q: What certificates do you have?

A: We have CE certificate, ISO9001 Quality Control Certificate, Explosion Proof Certificate, etc.

Q: What are your main products?

A: Our main products are Pressure transmitters, flow meters, level meters, level switch, etc.
