Magnetic hall effect liquid liquid flow sensor 3-24v dc DN25 4-45L/min. Turbine water flow sensor

  • Supplier: Foshan Shunde Saier Sensor Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Wendy Chan
  • Price: $11.00 / 10 - 299 pieces
    $10.00 / 300 - 999 pieces
    $9.50 / 1000 - 4999 pieces
    $9.20 / >=5000 pieces
  • Min. Order: 10 pieces
Product details
OEM:Provide OEM serviceFlow range:4-45L/min
connect:G/NPT 1" Straight ConstructionLine specification and installation direction:can be customized
Material:Stainless steel #304payment terms:L/C, Western Union, T/T, MoneyGram, PayPal
Customization support:OEM, ODM, OBMWarranty:1 year
Supply capacity:50000 pieces per dayPackaging Details:Product weight: 0.1kg/piece, each plastic bag, 20pcs in big bag, 100pcs/export carton, each box size is about 42*21*20cm, gross weight/carton is about 11kg
type:water flow sensorport:FOB Guangzhou
brand:PurcellPackage preview:
model:SEN-HZG1WA-SSWorking voltage range:DC4.5-18V, 24V can be customized
Origin:Guangdong, Chinawater temperature:below 80°C
Pressure performance:1.75MPacolor:silver
Electric strength:AC 500V 50HZ
DN25 stainless steel flow meter 3-24v dc magnetic hall effect liquid flow sensor 4-45L/Min turbine flow switch water flow sensor
Product Description
product name

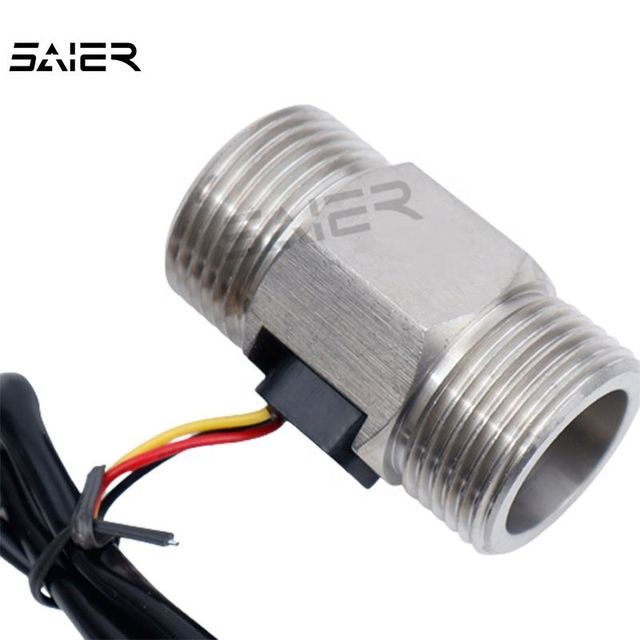

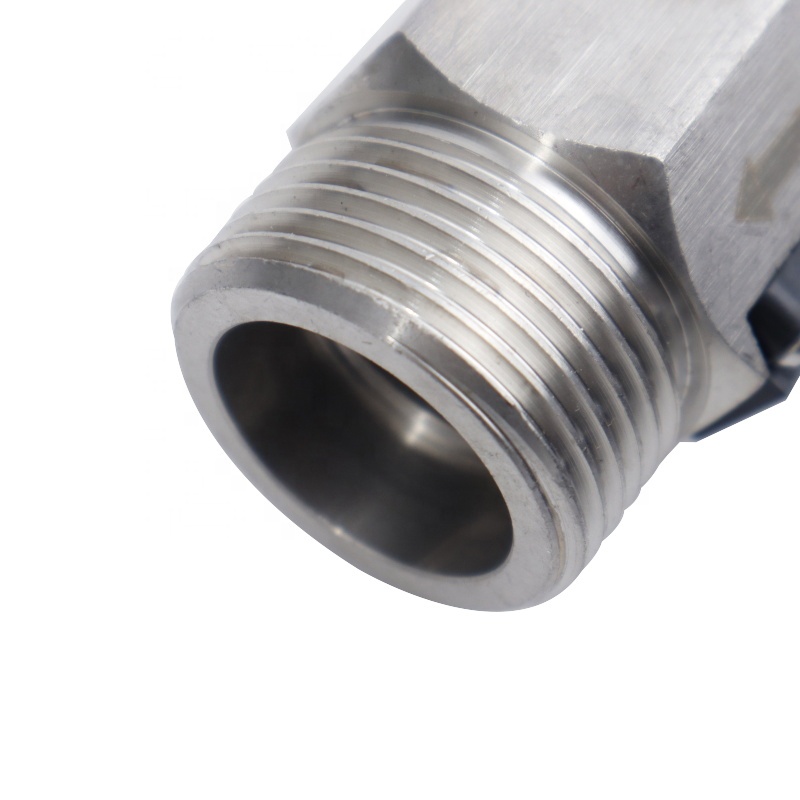

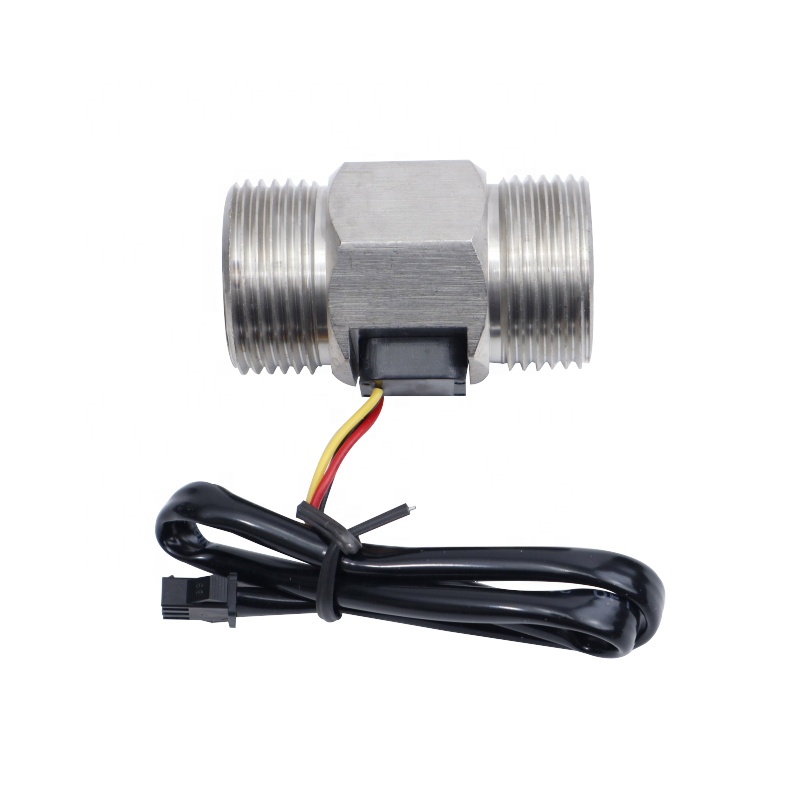

Miniature stainless steel flowmeter, turbine flow sensor
Material
stainless steel material

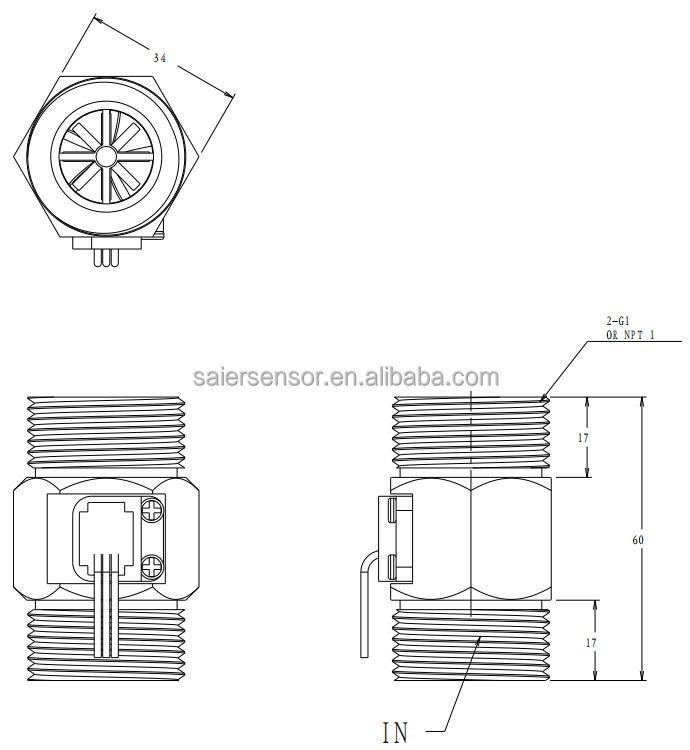

Connection size
G/NPT 1", DN25
flow range
4-45L/min
Contact rating
DC 5-24V, DC 3V can be customized
Function
Measure the water flow, install it at the water inlet of various coffee machines, water dispensers, and electrolyzers, and detect the water flow.

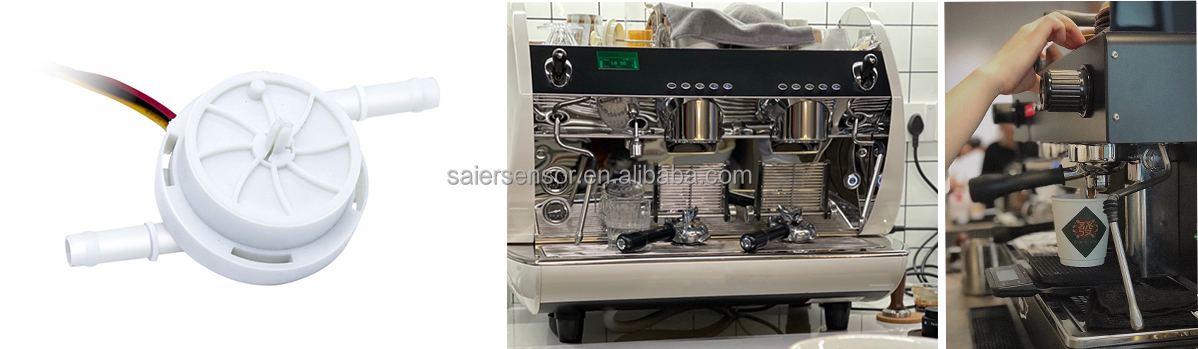

impeller flowmeter
Application: coffee machines and capsule coffee machines.
Material: food grade
