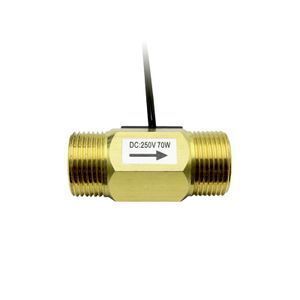

G 3 / 4 " Brass High Quality Liquid Water Flow Sensor Switch Magnetic Flow Meter Switch DN20 Threads

Supplier: Foshan Shunde Saier Sensor Co., Ltd.
Region: Guangdong, China
Contact: Ms Wendy Chan
Price: $4.82 /piece
Min. Order: 1 piece

Click here to contact

Product details

switching power:	70W;	water temperature:	less than 100 ℃;
Flow Rate:	2.5-30L/min;	Supply Ability:	100000 Piece/Pieces per Month;
Operating Temperature:	1-100;	Place of Origin:	China;
Color:	copper clour;	working voltage:	DC220/AC250;
Brand Name:	Saier;	Switching current(max):	1A;
Model Number:	SEN-CL43W;	Packaging Detail:	each in polybag, 20pcs into big bag, 100pcs/export carton, size of each carton around 422120cm, G.W/ctn around 15kgs;
Media Type:	Liquid;	Connection:	G 3/4";

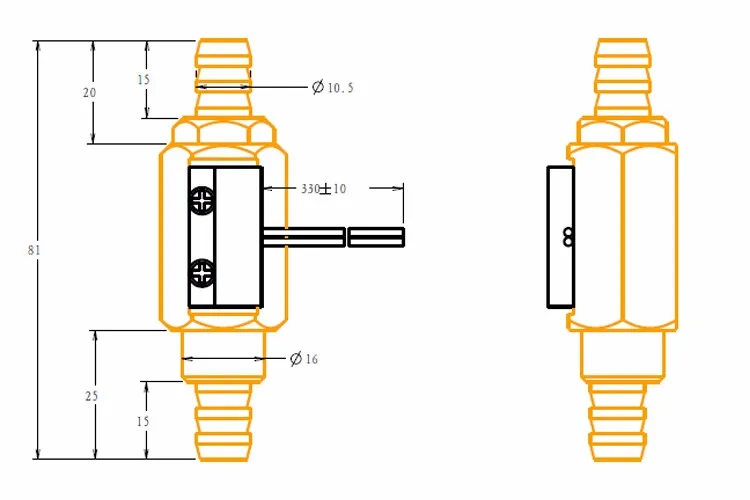

specifictation:	24.5*62mm;	Material:	Copper;
pressure performance:	0.5-1.2MPA;	Flow Range:	2.5-30L/Min;
Payment Terms:	T/T,Western Union,MoneyGram;	Port:	FOB guangzhou;

Product Description

flow switch,is the impact of using a permanent magnet to float the magnetic repulsive force and flow to interact with reed switch signal output (0/1), by the repulsive force between the permanent magnets with respect to mechanical spring to reset, more reliable, longer service life, lower flow start. G3/4 external teeth, brass, long line 320mm, two lines, installation: in any direction.
Note:
The water switch is used in conjunction with the intermediate relay in order to be safe and can not be directly connected to the high voltage circuit. At the same time, please install the filter in use, avoid the magnetic float flow switch is not installed on the card; shaking and vibration environment, in order to prevent the flow switch malfunction; cannot be used in strong magnetic environment, so that the flow switch failure; flow switch is a precision instrument, do not arbitrarily open to prevent damage to the water flow switch where, the disassembly flow switch are not within our scope of warranty.
