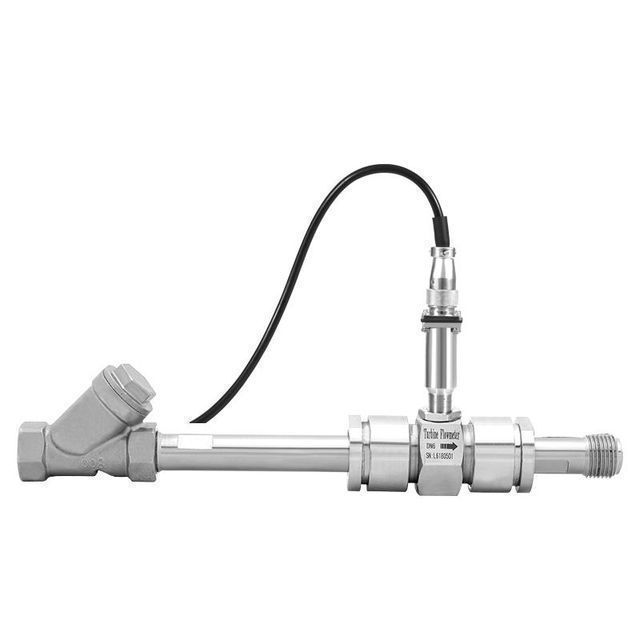

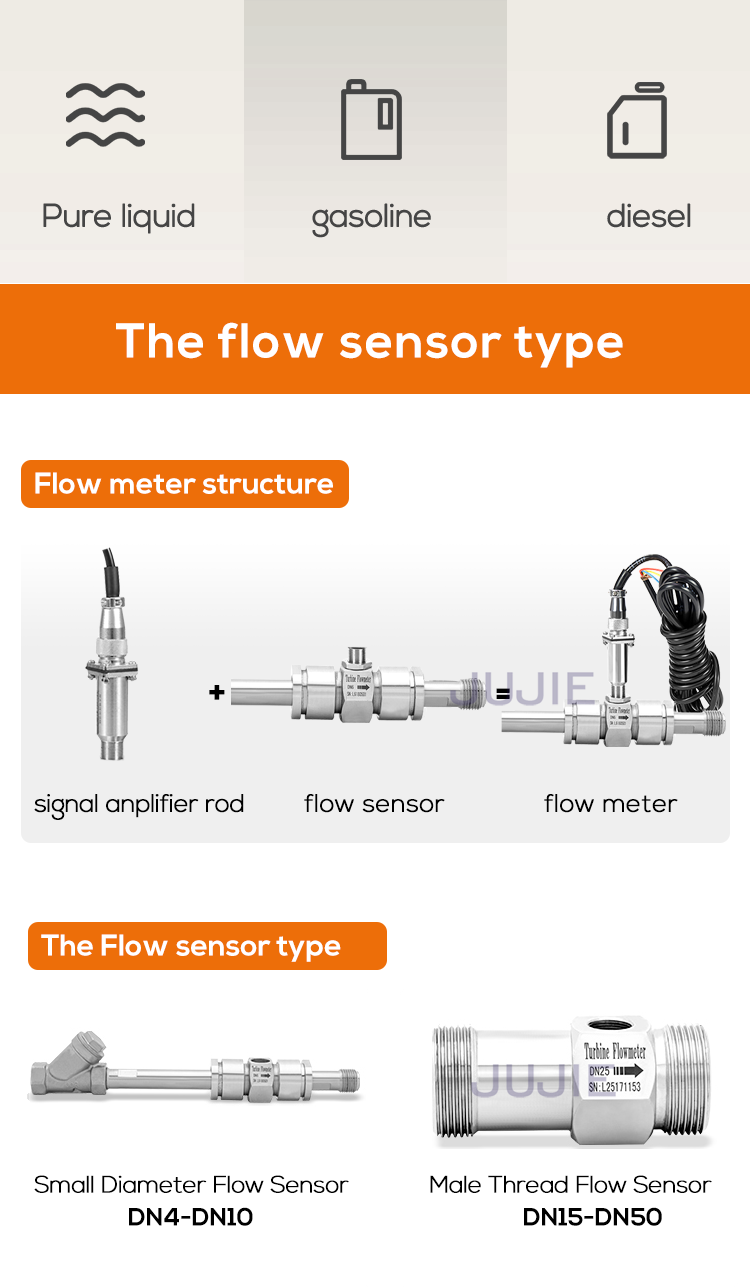

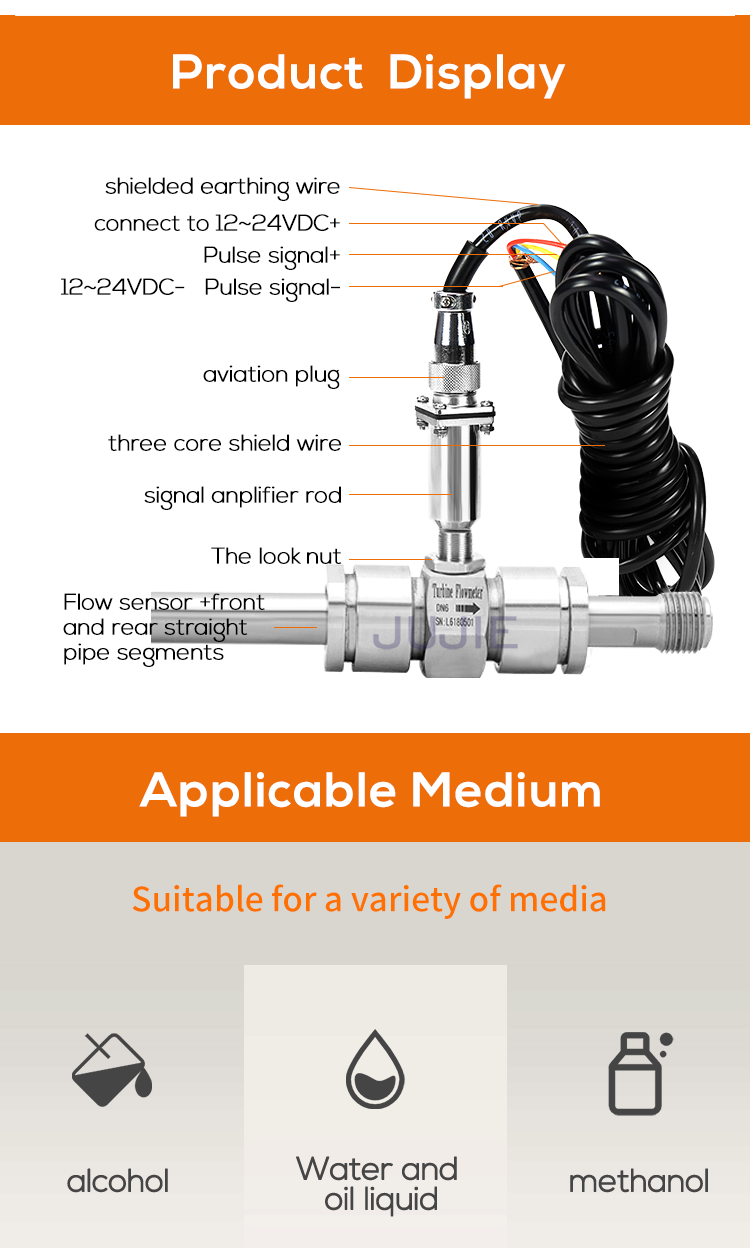

DN4 DN6 DN10 Diesel Fuel Turbine Water Flow Sensor Liquid Alcohol Flow Meter Internal Pulse Flow Sensors
-
Supplier: Anhui Jujie Automation Technology Co., Ltd. -
Region: Anhui, China -
Contact: Mr nianlong cheng -
Price: $130.00 / 1 - 9 cartons
$120.00 / 10 - 29 cartons
$110.00 / >=30 cartons -
Min. Order: 1 carton
Product details
| Signal output: | pulse | power supply: | 24V DC |
| Package preview: | brand: | Jujie | |
| place of origin; place of origin: | Anhui, China | output: | pulse |
| connect: | Wire | Gross weight per piece: | 1.500 kg |
| product name: | Turbine flowmeter | Sales unit: | single product |
| Moderate: | pure liquid | Customization support: | OEM production |
| Types of: | Variable area water flowmeter, variable area oil flowmeter | Warranty: | 1 year |
| model: | GTLWGY | Medium temperature: | -20℃~80℃ |
| Material: | stainless steel 304 | pressure: | 6.3 MPa |
| Single package size: | 20X15X10 cm | accuracy: | 1% |
Specification
Product parameters | ||||||

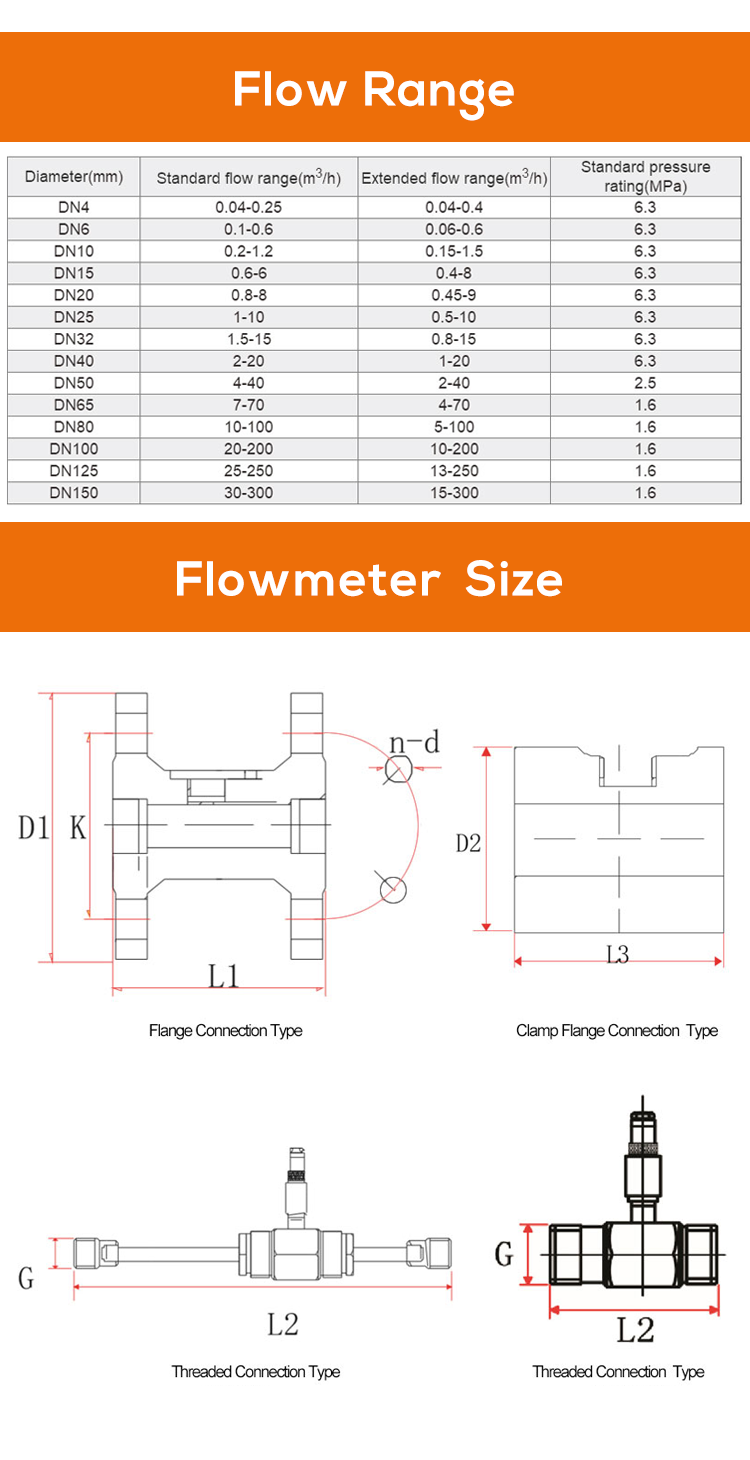

accurate | DN4-DN10: ±1.0%R; DN15-DN100: ±0.5%R; DN125-DN200: ±1.0%R | |||||
Turndown ratio | 1:10 | |||||

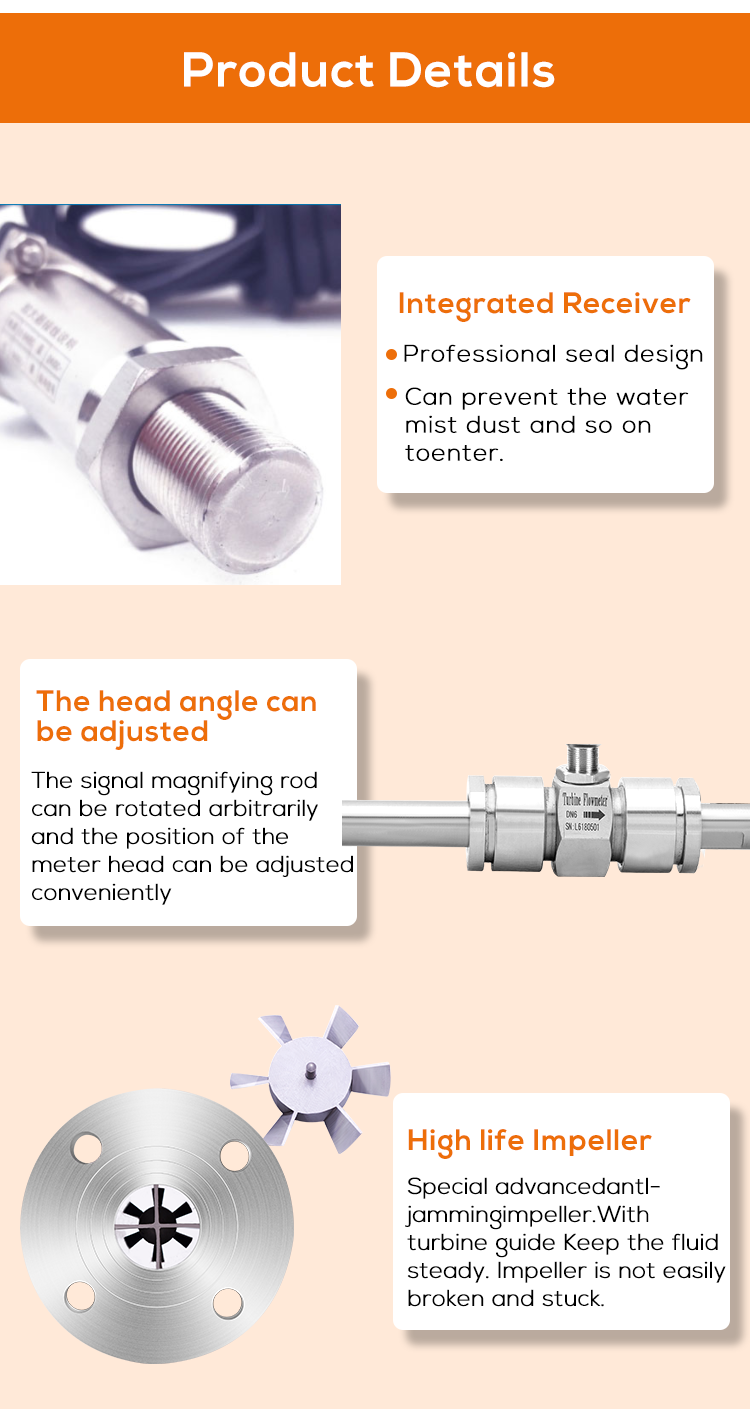

Instrument material | Sensor: SS304 (SS316); Impeller: 2Cr13; Guide: SS304; Bearing: YS8 alloy (special Material can be customized) | |||||
Conditions of Use | Ambient temperature: -30°C—60°C | |||||
Medium temperature: -100℃—100℃/120℃/150℃ | ||||||

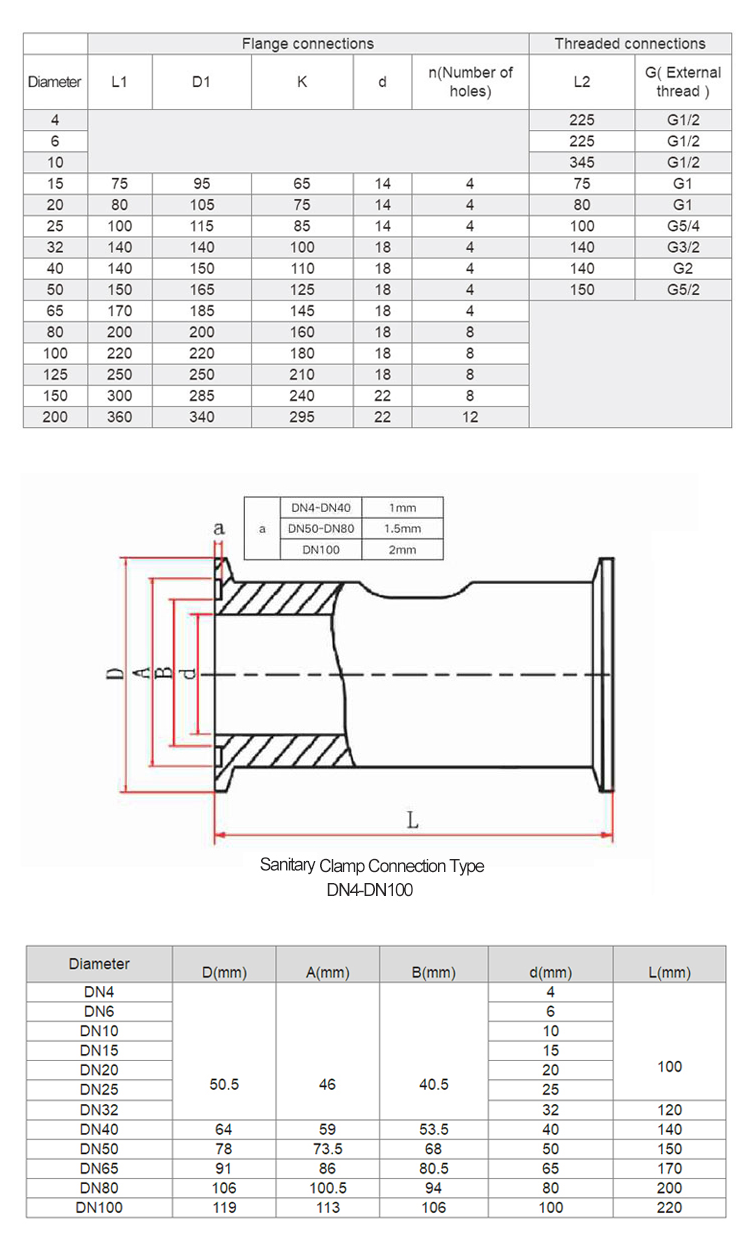

stress level | Thread connection: 2.5-6.3MPa (high pressure can be customized) | |||||
Flange connection: 1.6-4.0MPa (high pressure can be customized) | ||||||
Clamp connection: 1.0MPa | ||||||
power supply | 3.6V lithium battery (can be used continuously for 2 years)/12-24VDC | |||||
energy consumption | ≤1W | |||||

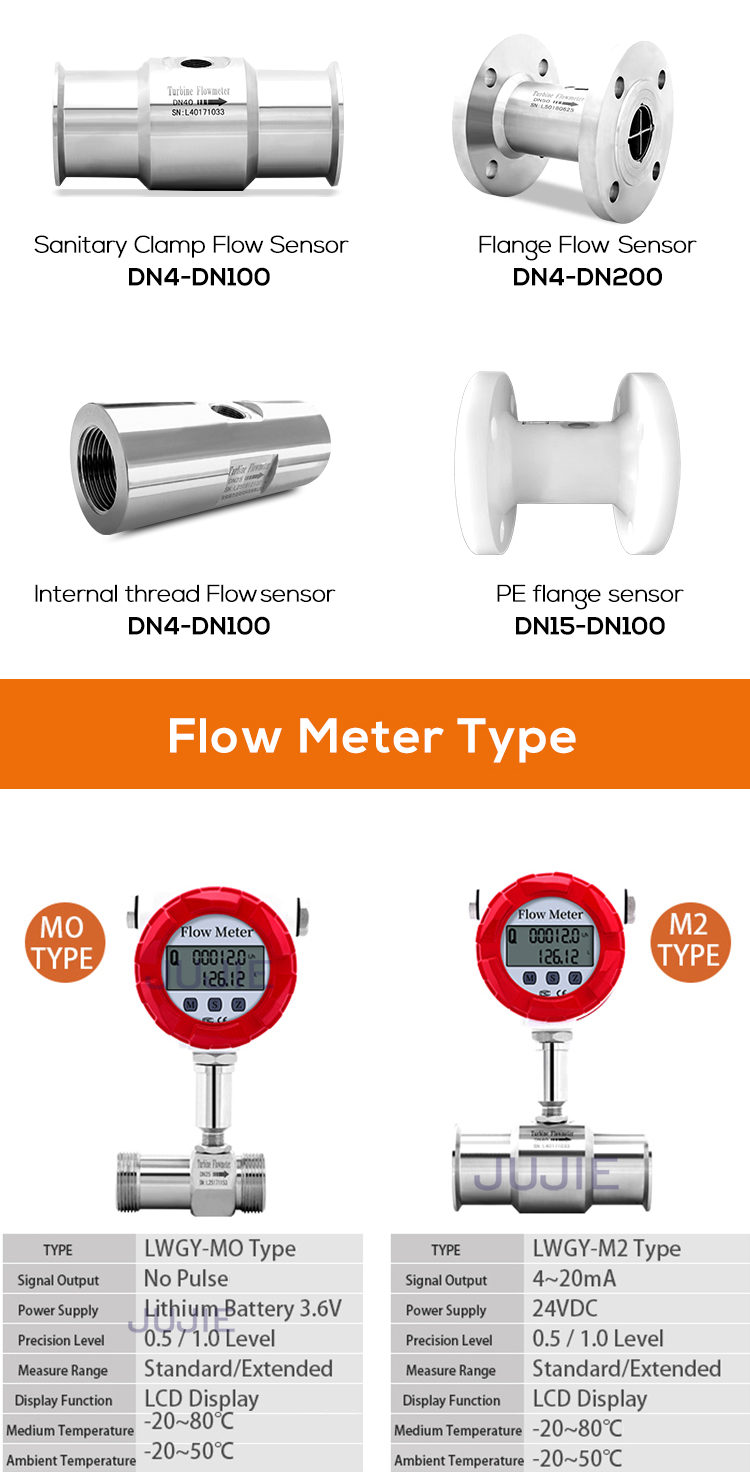

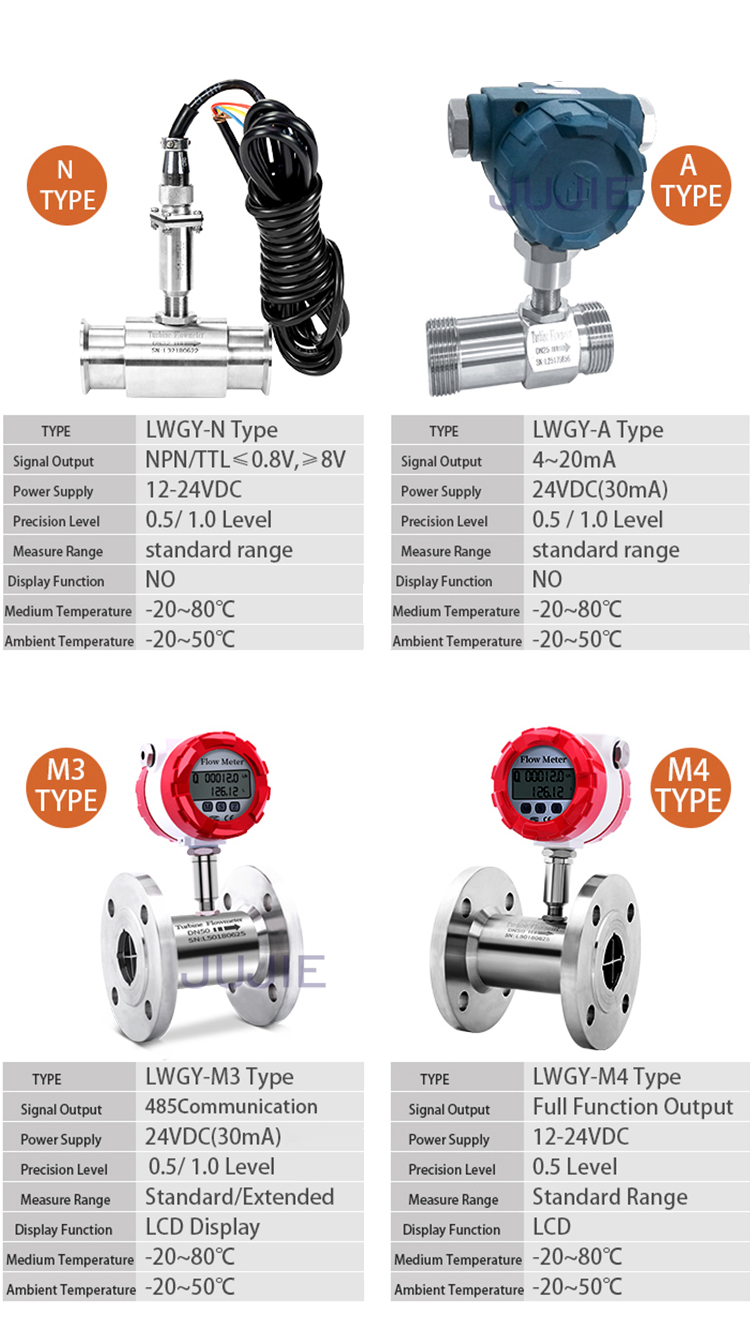

signal output | Pulse/4-20mA/RS485(Modbus-RTU) | |||||
signal interface | Internal thread M20*1.5 (NPT1/2, etc. need to be customized) | |||||
degree of protection | IP65 (IP68 can be customized) | |||||
Explosion-proof grade | ExdllCT6 Gb | |||||
exhibit | LCD instantaneous flow, cumulative flow unit (m³/h; L/min; L/h; Kg/h; Kg/min ;GPM) can be set | |||||

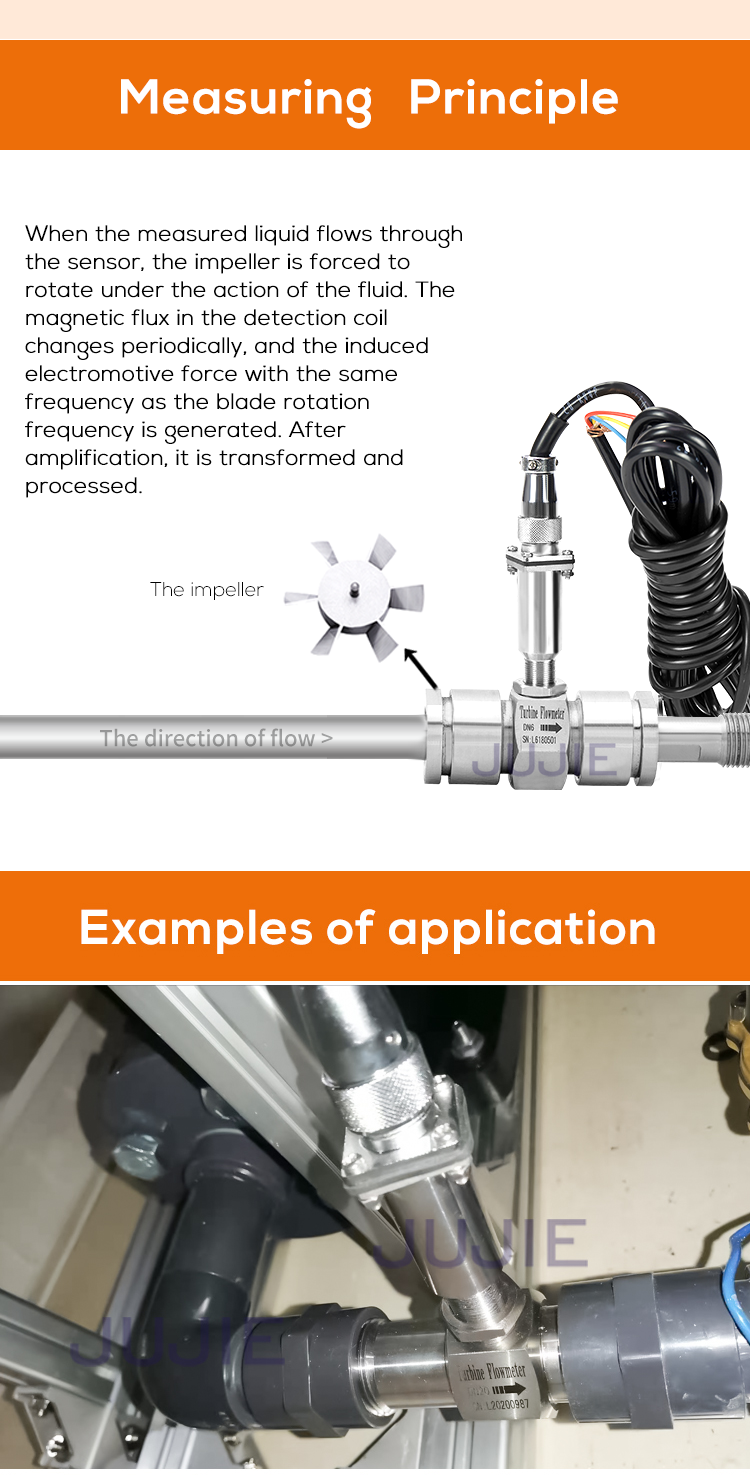

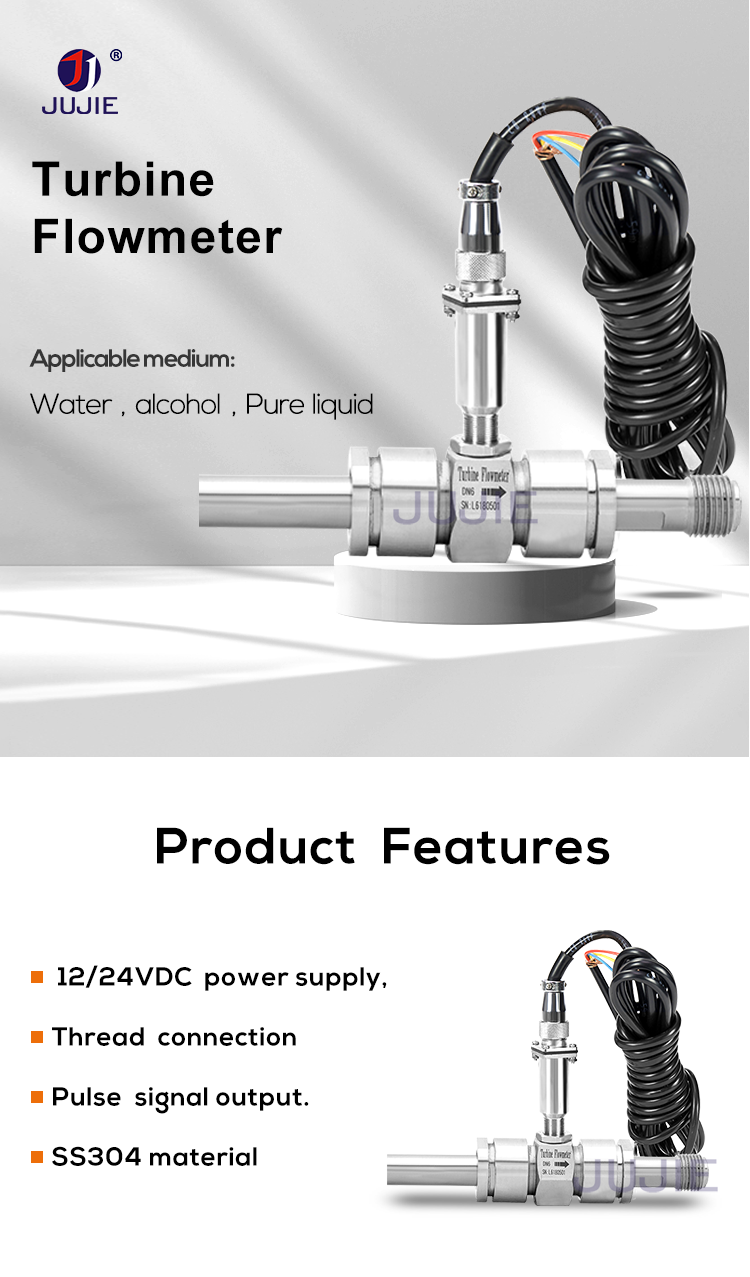

Product Description
