lightweight hand-held metal engraving machine

Supplier: Jinan Reci Cnc Machine Co., Ltd.
Region: Shandong, China
Contact: Ms RECI Laser CNC
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marking depth range:	0.05-1.0mm(according to the materials);	Supply Ability:	200 Set/Sets per Month lightweight hand-held metal engraving machine;
Dimensions:	2080mm or 20120mm;	Application:	all kinds of hard materail;
Warranty:	24 months for whole machine;	Marking speed range:	1-3 words/s(adjustable);
Milling Cutter Diameter:	2.5-4mm Marking Pin;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	qingdao;	Net/Gross weight:	3/below 20KG;
Brand Name:	Reci;	Marking Range:	2080mm/20120mm ( W*L );
Weight:	2.8KG;	Packaging Detail:	standard export Wooden box ( lightweight hand-held metal engraving machine );
Operating voltage:	220V/50HZ;	Engraving Speed:	2-4characters/s;
Main Axle Rotational Speed:	0-24000rpm;	Tag Character Content:	0~9 figures,A~Zlarge,lowercase letters Graphics,characters;
Application:	all kinds of metal, hard plastic, wood, and so on;	Rated Power:	220V;
Warrant:	2 year;	Compressed air pressure:	0.4-0.8 Mpa;
Payment Terms:	L/C,T/T,Western Union;	Condition:	New;
Place of Origin:	Shandong China;	Feeding Height:	0-200mm Optional;
Certification:	CE FDA;	Controller:	A ( SCM system ) or Controller B ( windows system );

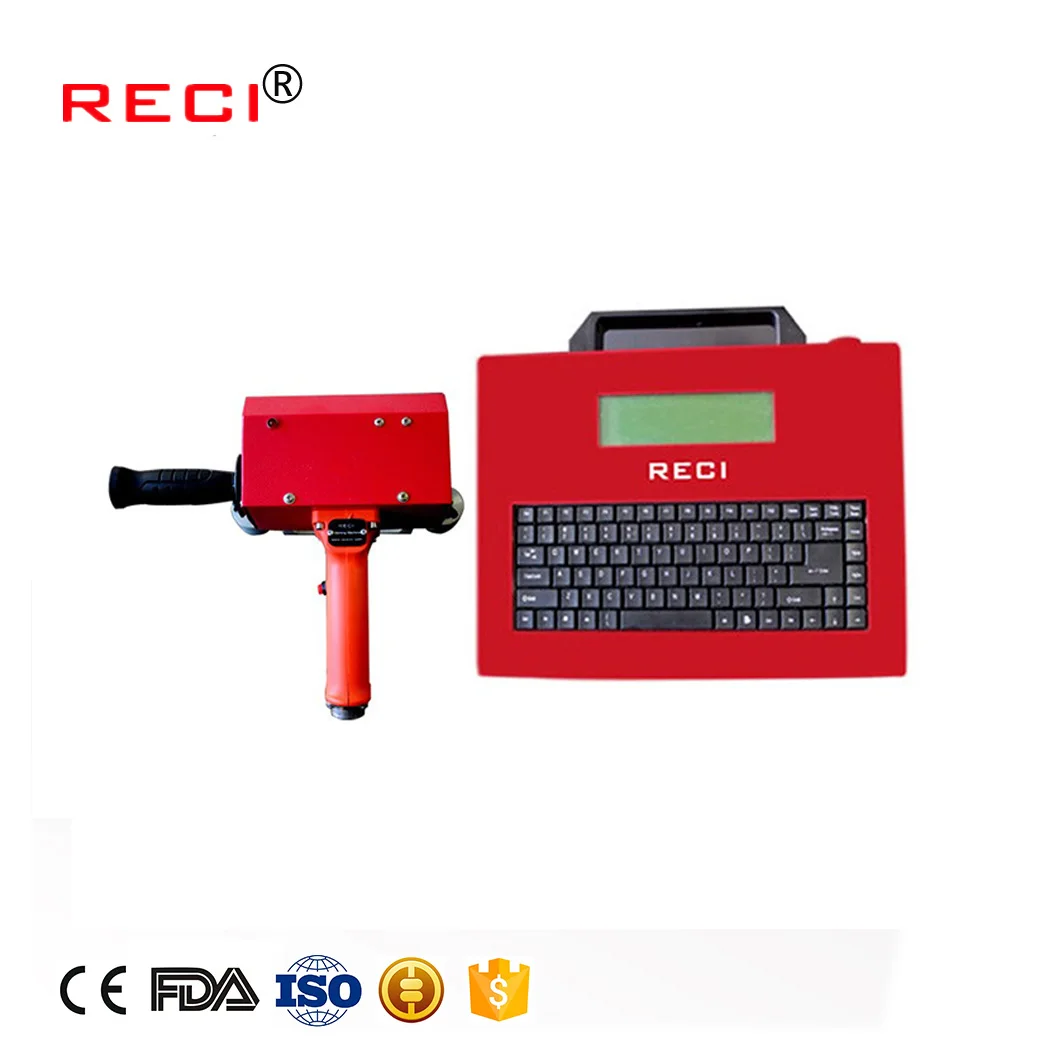

Lightweight hand-held metal engraving machine

Specification lightweight hand-held metal engraving machine

Model	RC-D2080
Controller Types	Controller A ( SCM system )/Controller B ( Windows system )
Marking Range	2080mm/20120mm ( W*L )
Marking Speed Range	10-100words/min(Adjustable)
Marking Depth Range	0.05~1.0mm(According to the materials)
Compressed Air Pressure	0.4~0.8Mpa
System Functions	1,Mark character input,editing,marking 2,VIN code automatically calculated,setting,marking 3,Serial number setting,automatically increase,marking 4,Tag data query,reporting,print 5,Characters,graphics,English character editing
Marked Font Size	Arbitrary adjustable
Tag Character Content	0~9 figures,A~Zlarge,lowercase letters Graphics,characters(users can be random homemade)
Operating Voltage	Control cabinet ~220V 50HZ ±10%
Machine Power	≤200W
Working Environment	Temperature:5~+35°C Humidity:≤80% room
Safety	Insulation resistance:Normal atmospheric pressure≥5MΩ/500V Electric strength:~50HZ/1500V/1min Leakage current:≤0.75Ma
Gross weight	Below 20KG

Description lightweight hand-held metal engraving machine

1.Adopted Taiwan HIWIN precision light-duty linear guide rail

2.Small volume and light weight 2.8KG

3.Aluminum alloy structure,stable running and precision marking

4.American MAC magnetic valve

5.Leadshine motor driver and Janpan Sanyo motor

6.High precision LED screen

7.Ningbo Fulong leather,can be used for more than 4-5 years

1, Convenient and comfortable handle,handheld and portable,very easy to take,especially for using in narrow space.

2, Electromagnetic adsorption device,can absorbed on the surface of mmaterial,make sure high precision marking effect.

3, Print cables connecting portable marking head and controller,very easy to use.

4,Controller A ( SCM system ) with touch screen,used for simple marking content such as symbols,letters and numbers.

5,Controller B ( Windows system ), a computer

6,Long life titanium alloy marking needle,the effect of mark is beautiful, and no metal powder in processing

Application lightweight hand-held metal engraving machine

Applied in mechanical working ,automobile industry,aeronautics,and petroleum equipment,etc.

Availabe for marking all kinds of metal(aluminium rating plate,copper rating plate,stainless steel rating plate),hard plastic,wood,and so on.

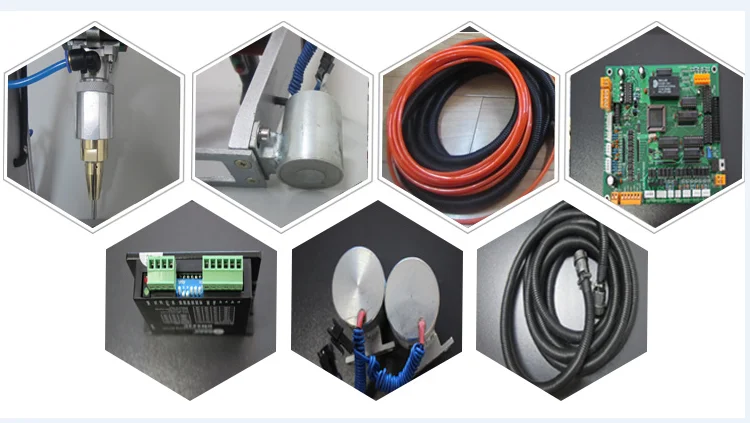

Main parts lightweight hand-held metal engraving machine

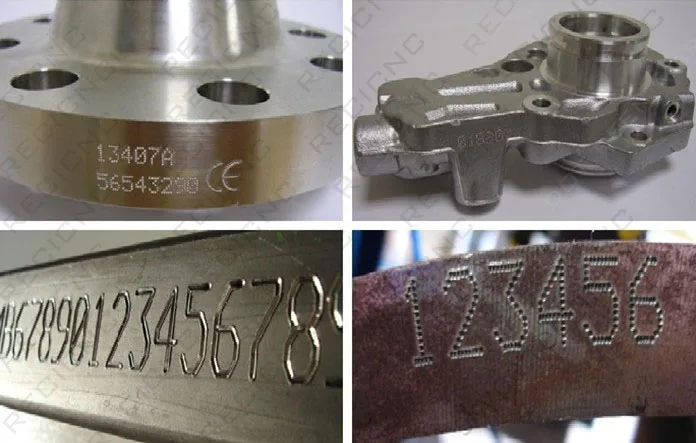

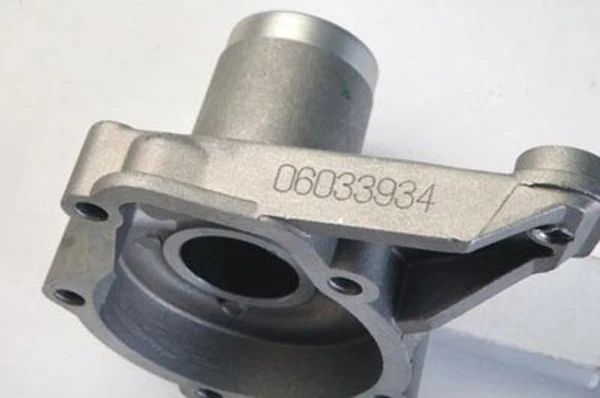

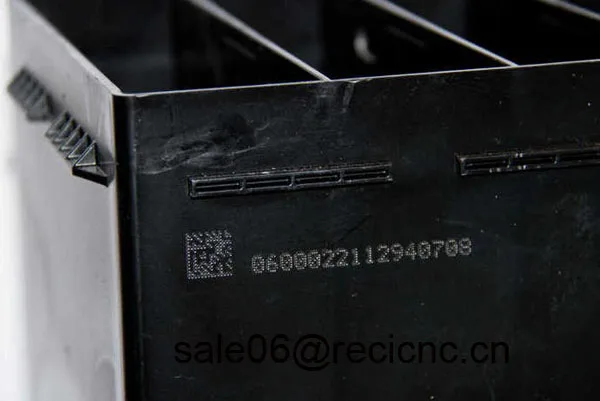

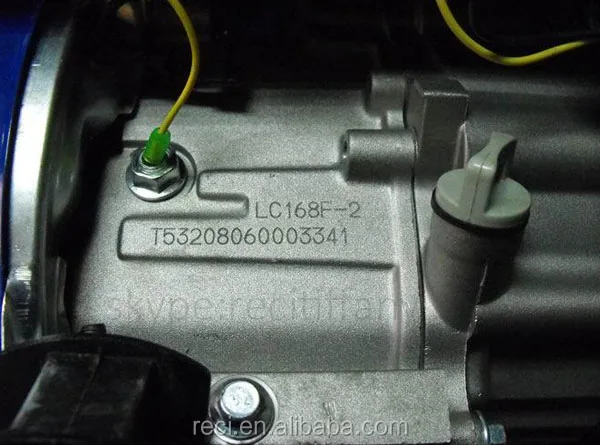

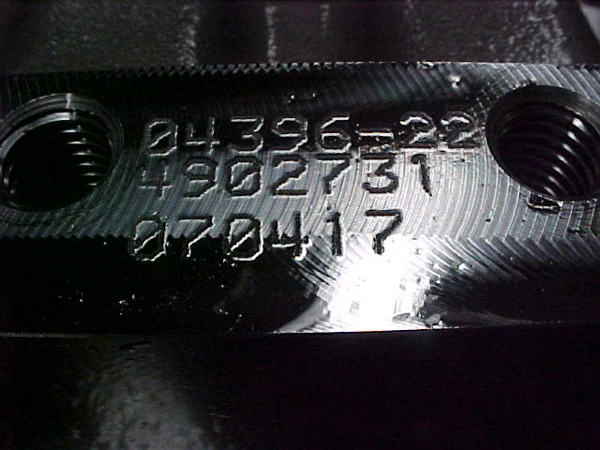

Samples lightweight hand-held metal engraving machine

Service lightweight hand-held metal engraving machine

1.2 year guarantee for product quality. (People damaged is charged).

2.Lifelong maintenance and spare parts supply.

3.Free design of fixtures as customers required.

4.Free training for machines installation and operation of the staffs.

5.Free samples marking of customer provided.

6.24 hours technical support by e-mail

7.calling or door-to-door service

8.English software, user manual and detailed Videos/CD

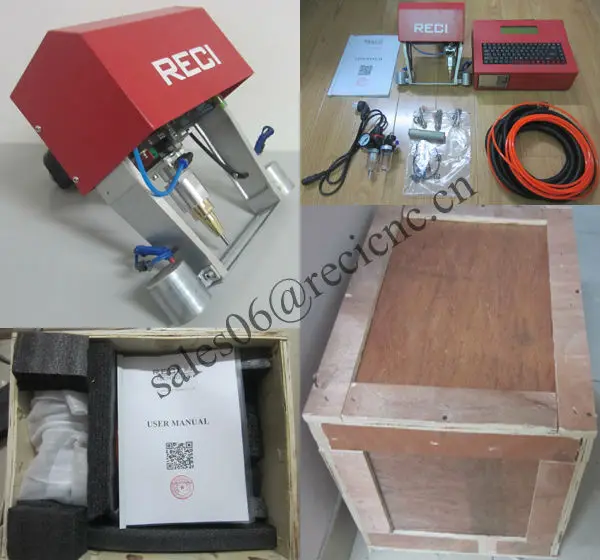

Package lightweight hand-held metal engraving machine

Certifications lightweight hand-held metal engraving machine

Shipping lightweight hand-held metal engraving machine

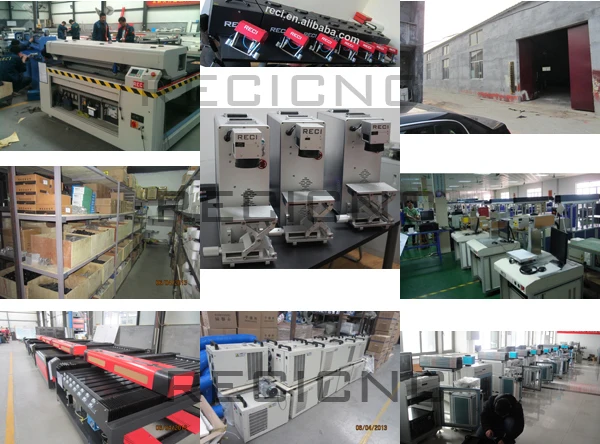

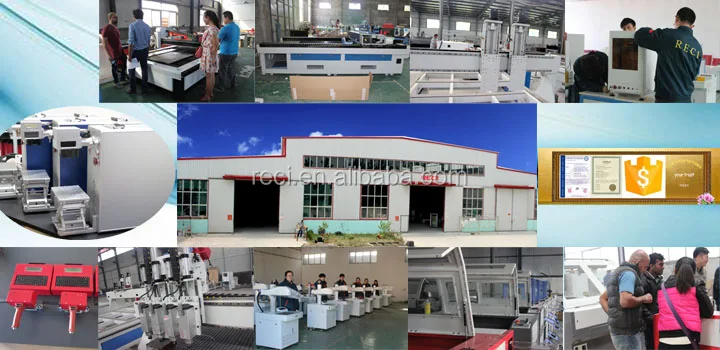

Company view lightweight hand-held metal engraving machine

Jinan Reci CNC Machine Co.Ltd is located in beautiful city Jinan,a professional manufacturer in the producing of marking machine,such as fiber laser marking machine,yag laser marking machine,CO2 laser marking machine,dot peen marking machine for many years.

The most important is the quality of our machine,it's our company's life.
