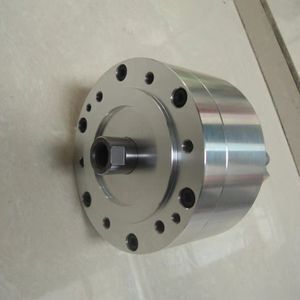

The CNC machine tool uses a no-hole rotary cylinder, and the RH125 can be matched with Power Chuck

Supplier: Yantai Hongyi Mechanical & Electrical Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Michael Jiang
Price: $89.60 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	https://sc02.alicdn.com/kf/HTB1qSURVNjaK1RjSZFAq6zdLFXar.jpg_640x640.jpg;	Type:	Hydraulic Cylinder;
Stroke:	25mm;	Maximum pressure of use:	3.5Mpa;
Maximum speed:	5500;	Package Type:	Cartons packaging or according to customer requirements agreed;
Weight:	6.8KG;	OEM:	Yes;
Single package size:	200X160X200 cm;	Place of Origin:	Shandong China;
Single gross weight:	7 KG;	Selling Units:	Single item;

The CNC machine tool uses a no-hole rotary cylinder, and the RH125 can be matched with Power Chuck

Product Description

For short form, light weight and high speed rotary cylinder.
Can screw it from the rear end of the cylinder when mounting.
The drain port should be independently connected to oil tank to avoid back pressure.

Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.

Item	Hongyi Promise on Quality
1	100% inspected and 100% qualified
2	In case of quality defects before use, buyer should notify Hongyi within a week after receiving goods, Hongyi is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety.
3	If buyer need changing before use, buyer should notify Hongyi within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety.
