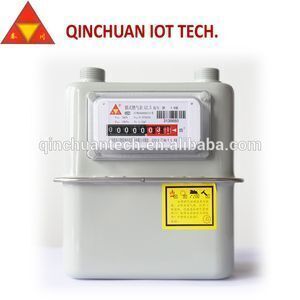

wireless automatic meter reading WAMR gas meter g4

Product details
Product name:Diaphragm Gas Meter;Packaging Detail:Paper carton, 4 units/carton.;
Certificate:ISO9001/ISO14001;Port:Shanghai (China, Mainland);
Delivery Detail:2~3 weeks;maximum working pressure:0.5bar;
Supplier type:Factory;Brand Name:Qinchuan;
class:1.5;Place of Origin:Sichuan China;
Key word:Diaphragm Gas Meter;Case:Aluminmum/steel;
Supply Ability:100000 Unit/Units per Month Diaphragm Gas Meter;Model Number:G4;
Payment Terms:L/C,T/T,Western Union,MoneyGram;pressure absorption:≤200Pa;
cyclic volume:1.2dm3;Standard:GB/T6968-1997B;

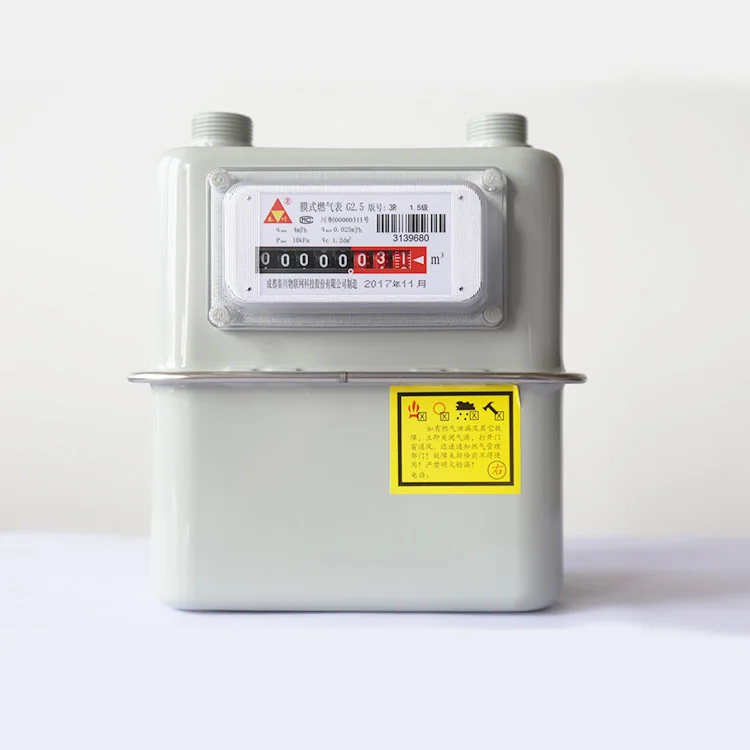

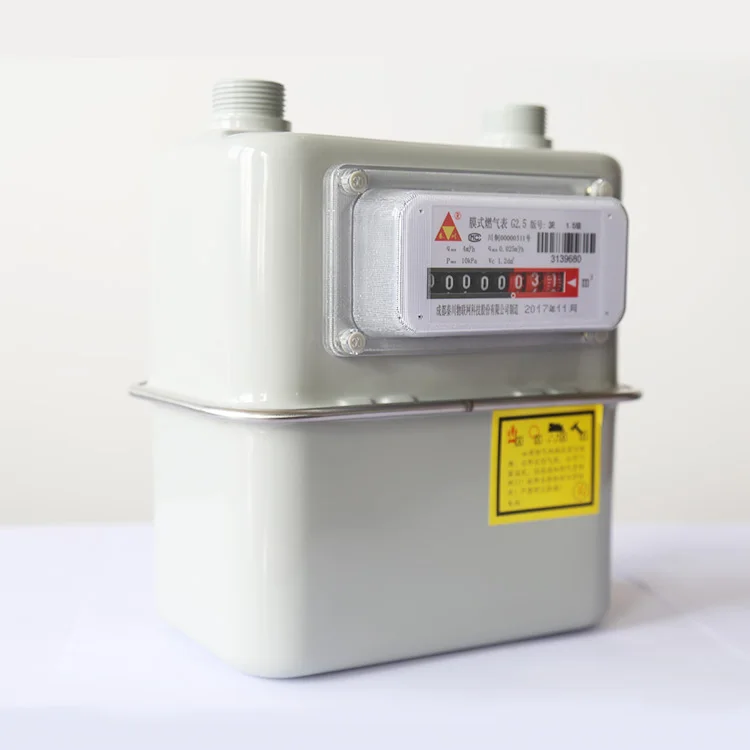

wireless automatic meter reading WAMR gas meter g2.5

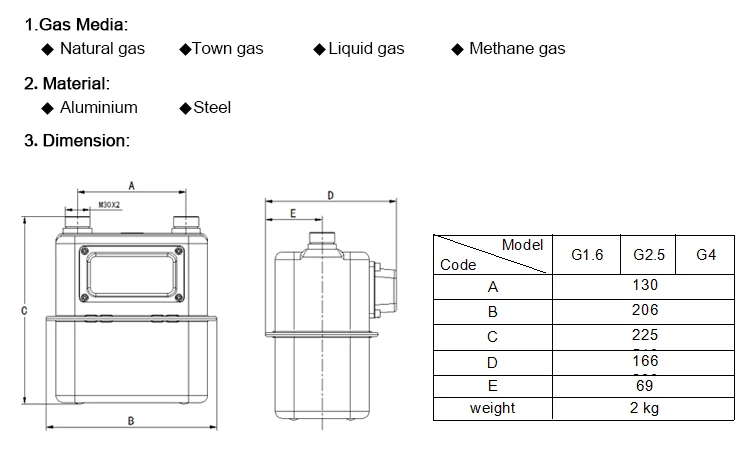

Product Description







Model

G1.6

G2.5

G4

Norminal flow rate Qn(m3/h)

1.6

2.5

4

Maximum flow rate Qmax(m3/h)

2.5

4

6

Minimum flow rate Qmin(m3/h)

0.016

0.025

0.04

Starting flow rate Qst(dm3/h)

3

5

5

Overload flow rate Qr(m3/h)

3

4.8

7.2

Error of indication

Qmin≤Q<0.1Qmax,±2%
0.1Qmax≤Q≤Qmax±1.0%

Cyclic volume(dm3)

1.2

Maximum working pressure

0.5 bar

Pressure absorption(Pa)

≤200

Durability

run the meter at Qmax for 5000h

Working temperature range

-10℃~+40℃

Storage temperature range

-20℃~+60℃











Why Choose Us





1,We possess 150 national patents, including              2,Paticipated in establishing the national

4 international patents and 81 patents for invention.             standards of IoT and sensor network.







3,Appointed as the setup unit of Academicians            4,China's Top-10 Gas Meter Brands.

and Experts Worksatation, Qinchuan keeps regular

publishing on national industry journal.



Company Information



Package & Delivery

Package details: paper carton, 4 units/carton

Delivery time: 2~3 weeks
