Inside pipe self regulating heat trace anti freeze defrost cable

Supplier: Anhui Huanrui Heating Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Mr Gordon Zhang
Price: $1.50 / >=1000 meters
Min. Order: 1000 meters

Click here to contact

Product details

Port:	Shanghai, Ningbo or other ports;	Max withstand temperature:	85°C (185°F);
Color:	OEM;	Place of Origin:	Anhui China;
Supply Ability:	15000 Meter/Meters per Week for inside pipe self regulating heat trace cable;	Conductor Material:	Tinned copper buswires;
Max resistance of braid:	≤18Ω/km;	Min installation temperature:	-40°C;
Model Number:	MSR;	Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram,PayPal;
Max maintain temperature:	65°C (149°F);	Product name:	Inside pipe self regulating heat trace anti freeze defrost cable;
Output power at 10℃:	10, 15, 25, 30 (W/m);	Approvals:	CE, EAC, EAC-ex, ATEX;
Rated voltage:	110V-120V / 220V-240V;	Brand Name:	Huanrui;
Application:	Pipe Heating;	Number of Conductors:	Twin Conductor;
Bus wire gauge:	20AWG;	Jacket:	Theromoplastic or Fluoroploymer;
Insulation Material:	PVC or Fluoroploymer;	Packaging Detail:	Packing for inside pipe self regulating heat trace cable: 1. If you want to save the freight, suggest you use the regular package that is just put heating cables in a carton without inner box. 2. If you want to protect the hating cables better, suggest you to use inner box first, and then put them in the carton. 3. If you sell goods in your own brand, suggest you use the color box, which has your own design, such as logo and so on, then put these color box in cartons.;

Product Description

Inside pipe self regulating heat trace anti freeze defrost cable

Introduction

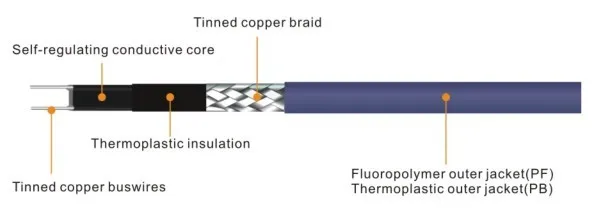

MSR inside pipe self regulating heat trace cable provides the most versatility in heat trace designs and applications. Constructed of a semiconductor heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As temperature increases, the heater’s resistance increases which lower the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy efficient heating cable.

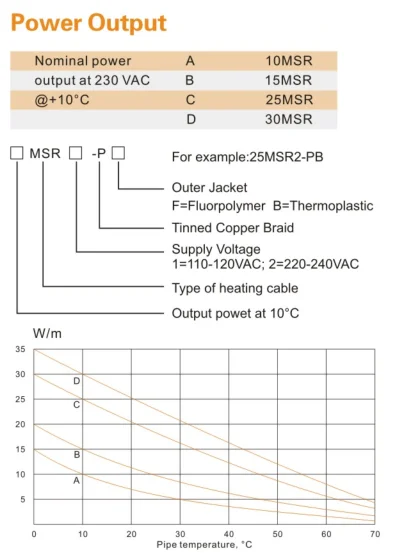

Technical Summary
Part number	Output power @ + 10°C (W/m)	Maximum maintain temperature (°C)	Max length @ +10°C 16/25A (m)	Max length @ + 0°C 16/25A (m)	Max length @ -20°C 16/25A (m)	Dimension (mm)	Weight (kg/100m)
10MSR-PB	10	65	60/80	54/70	40/60	8.3×5.4	6.6
10MSR-PF	10	65	60/80	54/70	40/60	8.0×5.1	6.0
15MSR-PB	15	65	57/86	51/68	38/55	8.3×5.4	6.6
15MSR-PF	15	65	57/76	51/68	38/55	8.0×5.1	6.0
25MSR-PB	25	65	46/55	38/50	33/49	8.3×5.4	6.6
25MSR-PF	25	65	46/55	38/50	33/49	8.0×5.1	6.0
30MSR-PB	30	65	37/45	35/43	30/39	8.3×5.4	6.6
30MSR-PF	30	65	37/45	35/43	30/39	8.0×5.1	6.0

MSR inside pipe self regulating heat trace cable series:
MSR-P	Tinned copper metal braid
MSR-PB	Thermoplastic outer jacket
MSR-PF	Fluoropolymer outer jacket
Max resistance of braid	≤18.2Ω/km
Bus wire gauge	20 AWG
Approvals	CE, EAC, ISO9001, ROHS, ATEX

Characters

1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.

Application

MSR inside pipe self regulating heat trace cable is ideally used for process temperature maintenance and frost protection of small diameter pipelines, tanks, valves, flanges. It is suitable for non-hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area. What's more, the MSR with Fluoropolymer outer jacket can be used inside the water pipe heating. The material has the drinking water certificate. It's safety and made to comply with the environmental protection standards.

MOQ: 1000 meters
OEM and ODM available

Product Advantages

Packaging & Shipping

Packing: usually packed in white box first, and then packed into carton box. If it is big order with large quantity, we can provide the customized service, such as the cable marking, adhesive tape with logo, individual color box or other order requirements.

Shipping: customer can choose the carton box packing by pallet or without pallet; the delivery method can be by sea, by air, by train, by truck or by international express.
