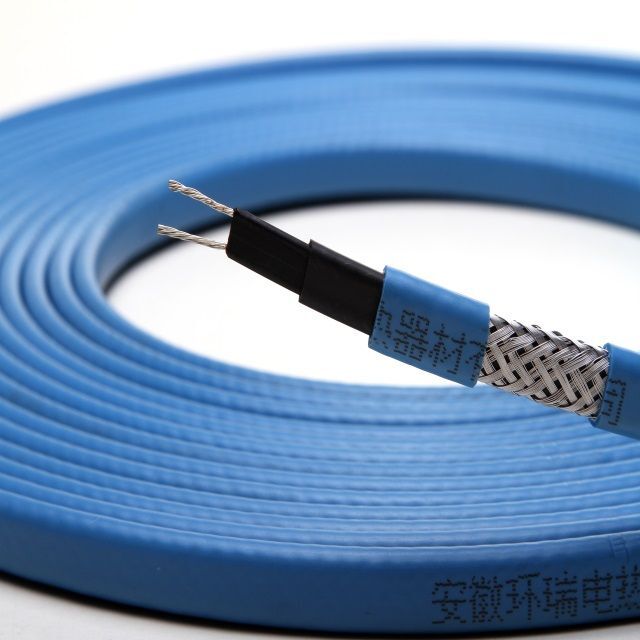

RSR heating cable for melting snow

Heating System Roof Snow Melting Heating Cable

introduce

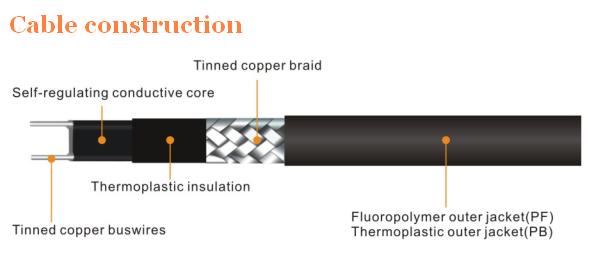

RSR Roof Snow Melt Heating Cables offer the most versatile features in heat tracing designs and applications. Consisting of a matrix of semiconductor heaters squeezed between parallel buses, the self-regulating cable adjusts its output to respond independently to ambient temperature over its length. As the temperature increases, the resistance of the heater increases, reducing the output power. Conversely, as the temperature decreases, the resistance decreases and the cable generates more heat. Therefore a thermostat is not required in some applications. It will never overheat or burn out even when wrapped individually (overlapping). Can also be cut to any length. The result - an energy efficient heating cable.

figure

1.long lasting:PTC semiconductor substrate, high quality, excellent technology.

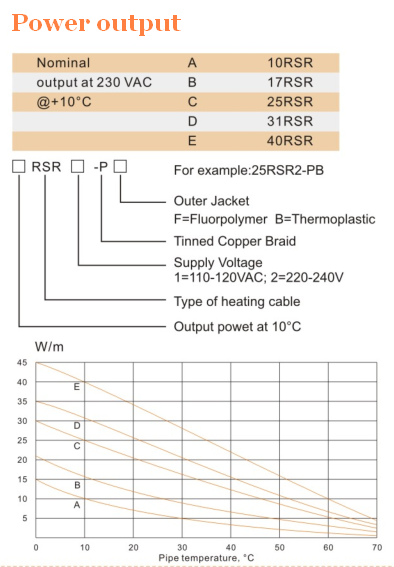

2.Low energy consumption:Due to the unique PTC characteristics, the cable can adjust the output power according to the ambient temperature.
3.Excellent heat resistance:The PTC semiconductor substrate is treated by irradiation cross-linking reaction. High insulation resistance.
4.Cut to length:The PTC semiconductor matrix consists of infinite parallel connections of carbon particles that can be cut to the exact length required.
5.Easy to install:Linear cables that provide complex installations without overheating when overlapped.

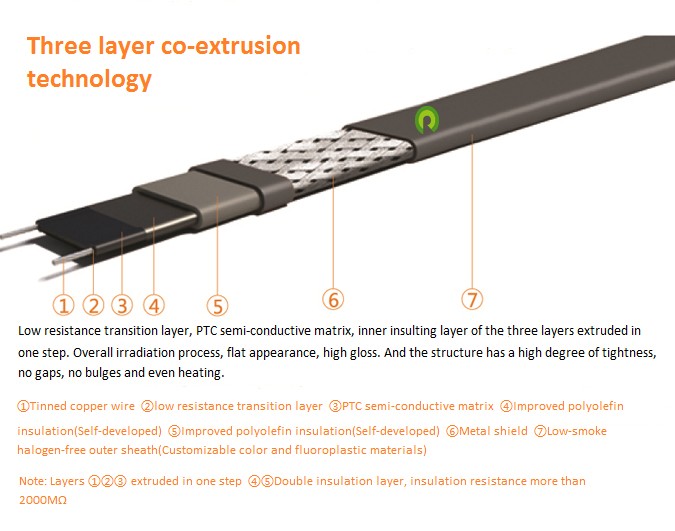

6.Low starting current:PTC 3-layer co-extrusion technology, low starting current and low decay rate.
7.Cable Durable:Anti-ultraviolet, high and low temperature resistance, weather resistance.

application

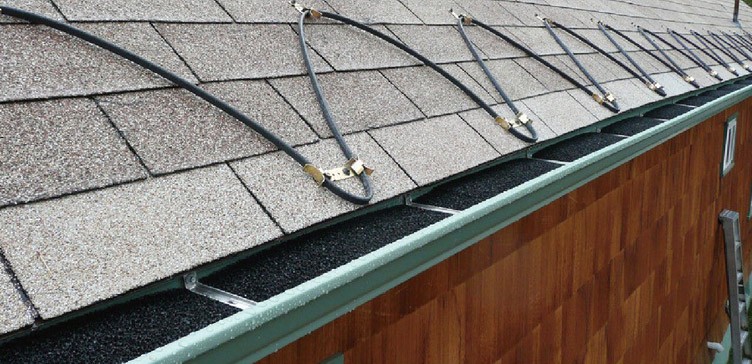

RSR Roof Snowmelt Heating Cables are ideal for process temperature maintenance and freeze protection for regular diameter pipes, tanks, valves, flanges, roof and gutter deicing, and other applications requiring low temperatures. Suitable for use in hazardous areas, fluoropolymer jacketed cables can also be used in non-hazardous and corrosive areas.

MOQ 1000 meters
OEM and ODM available
