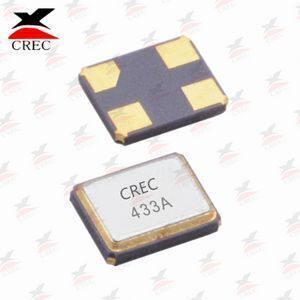

made in China manufacture for SMD type 315mhz saw resonator best price

Product details
Frequency:315mhz;Application:automotive;
voltage:10V;Certificate:RoHS;
Selling Units:Multiple of 1,000;Package Type:tape+carton;
Dimension:3225;Model Number:SMD3225;
Place of Origin:Sichuan China;Package size per batch:12.5X12.5X8 cm;
Sample:Accept;Package Preview:https://sc01.alicdn.com/kf/HTB1RPFJX8Gw3KVjSZFDq6xWEpXas.jpg_640x640.jpg;
Package:SMD;Shipment:DHL;
About Us:17 Years Experience;Gross weight per batch:1 KG;
Brand Name:CREC;Aging:10ppm/yr;
Product Description

Application :

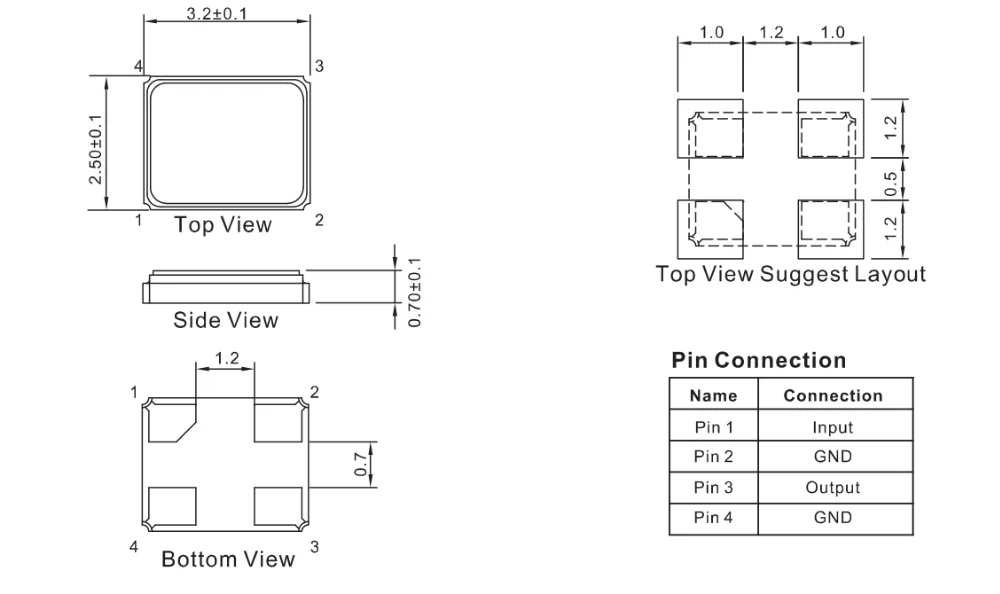

1.Ultra smalles size 3.2*2.5*0.68mm, surface mounting package.

2.1-port resonator

3.very low cost than other SMD package

4.electrostatic sensitive devices(ESD)

5.automatic mounting, solder reflow capable

6.applications for automotive electronis, remote contro, and more

7.RoHS compliant/Pb-free.

center freq.
315mhz saw resonator
tolerance form 43..92 mhz
+-75khz
insertion loss (min)
2.0dB
turnover temperature
20 to 55
operating temperature range
-40 to 85
freq. aging
<10ppm/yr
Motional resistance
13.2ohm
storage temperature range
-55 to 125
DC voltage
10V
static capacitance
1.75pf
motional inductance
89.4 uH
