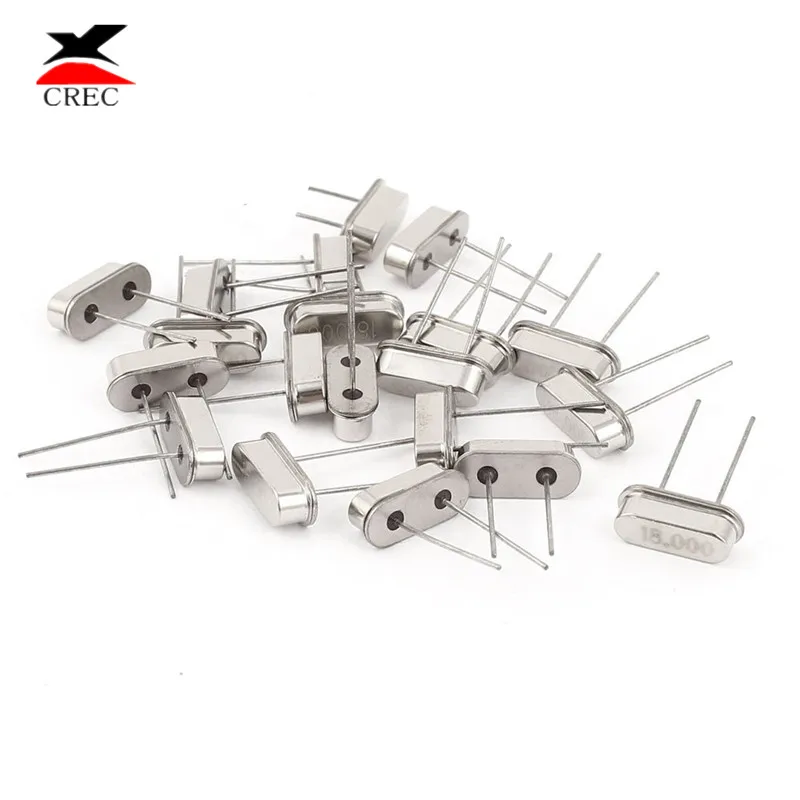

quartz crystal hc 49s 9mhz custom crystal resonator crystal

Product details
Aging:3ppm/Year;Single gross weight:0.001 KG;
Package Preview:;Packaging Detail:reel and carton;
Place of Origin:Sichuan China;Selling Units:Single item;
Build-in Load Capacitance:18PF;Package Type:DIP;
Model Number:49s;Certificate:RoHS;
Shipment:DHL;Operating Temperature Range:-40-+85;
Frequency Stability:20PPM,20PPM;Impedance:40 Ohms;
Load Capacitance:18pF;Single package size:1.15X0.45X0.37 cm;
Brand:HC49S;Brand Name:CREC;
Frequency Tolerance:20ppm,20PPM;Sample:Accept;
Supplier Type:Original manufacturer,ODM;Operating Temperature:-40-+85;
Frequency:20~20000 HZ;Vibration Mode:ATFundamental;
Frequency Range:3-37MHZ;Payment:T/T;
Package process
Specification
Frequency Range
3.000-37mhz
Vibration Mode
AT
Resonance Resistance
300-10MAX
Frequency Tolerance
20PPM
Shunt Capacitance
7PF MAX
Frequency Stability over Temperature Range
20PPM
Load Capacitance
18PF
Insulation Resistance
>500MΩ/DC/100V±10v
Drive Level
0.01mW-1mW
Aging
3PPM/.year
Other special specifications are designed according to clients' requirements, more details available.
Product description

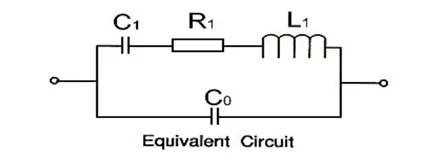

Circuit and flow

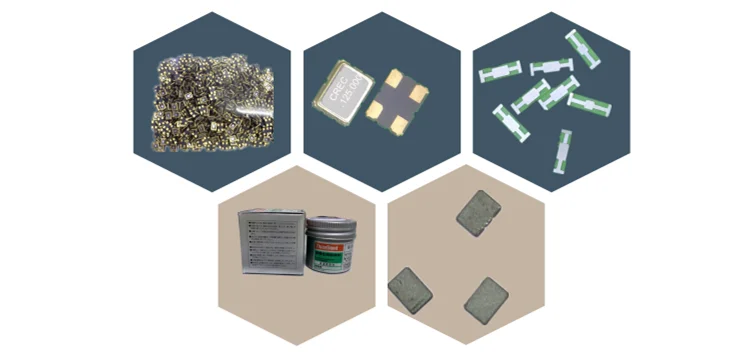

Materials
Package
One bag contains 200pcs, weight 0.135kg.
One box contains 10 bags 2000pcs, weight 1.35kg.
One carton contains 10 boxes 20000pcs, weight 13.5kg.
Features
1.Highly mass production capability.
2.A great number of standard frequencies.
3.Resistance welded type crystal unit.
4.Rohs compliant/Pb free.
5.Applications: PC、STB、LCDM、Cable Modem
Our company
We are an electronic components company providng services for Sangsung for many years, located in west High-tech zone of Chengdu, Sichuan province. With a full set of technologies and equipment for crystal growing,cutting, and piezoelectric crystal assembly, the company is committed to the R&D,prodicing and selling quartz crystal resonators,oscillators and filters.
Our web: www.chinacrec.com
Our factory
Glue
Fine tuning
The set of piece
Cut foot
Retest
Marking
There are five Ion etching trimmer , versioned S&A W-5910IB in our company.
Certification
Why chose us
1. OEM services are provided.
2.Reliability test is provided.
3.PCB test is provided for free.
4.Customization is provided.
Exhibition
FAQ
1.Are you a trade company or manufacturer?
    We are a manufacturer providing crystal resonators and oscillators.
2.Do you provide samples?
    Yes, we provide free samples 10 to 20pcs. If in stock, 2-3 days can be delivered, if not, 1 week.
3.What basic information clients need to provide when they want to buy goods?
     Frequency, Frequency tolerance, Frequency stability and Load capacitance.
4.What is the general lead time of the products?
     HC-49S Seris for 1-2 weeks, SMD Crystal for 1-4 weeks, DIP Oscillator for 1-2 weeks, SMD Oscillator for 1-3 weeks, TCXO for 2-8 weeks, Watch Crystal for 1-2 weeks.
