The Latest Low Temperature And Constant Temperature Reaction Circulating Water Bath

Supplier: Qi Yu Industry(Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Ella Guo
Price: $770.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Month;	Brand Name:	Qiyu;
Name:	Low temperature and constant temperature reaction;	Flow(L):	35;
Temperature range:	-120℃-98℃;	Control accuracy(℃):	±0.1;
ODM/OEM:	Acceptable;	Place of Origin:	Shanghai China;
Humidity:	(60-80%) Ventilation;	Packaging Detail:	A layer of bubble film is wrapped outside the glass products, and foam board is arranged in the wooden box to prevent the glass products from being damaged during transportation.;
Practical opening diameter(mm):	285;	Product name:	Low temperature cooling water circulating pump;
Lift(M):	4--6;	Classification:	Laboratory Thermostatic Devices;
Application:	Labs Research;	Model Number:	DFY-10/25;
Port:	Shanghai;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;

Instrument Features

Introduction

Low temperature and constant temperature reaction bath is a new type of experimental instrument developed by our company. It is suitable for low temperature experiments in the departments of scientific research, biology, physics, medicine and chemical industry. It can replace dry ice and liquid ammonia for low temperature reaction and related equipment to provide low temperature conditions. It can also be used as a cryogenic thermostat to measure the viscosity, with a magnetic stirring at the bottom and two stages of mixing, so that the temperature of the stainless steel groove is even more uniform. Intelligent temperature control and other characteristics.

Advantages

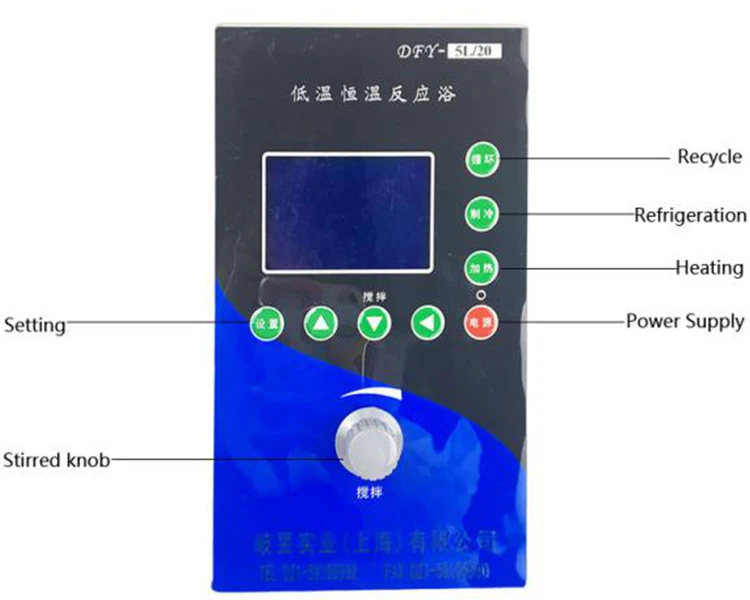

(1)Temperature digital setting and display

(2) Fully enclosed magnetic stirrer ensures mixing stability.

(3) It can be equipped with two stage agitation, together with the agitator in the reaction vessel, so that the temperature of the sample is kept uniform.

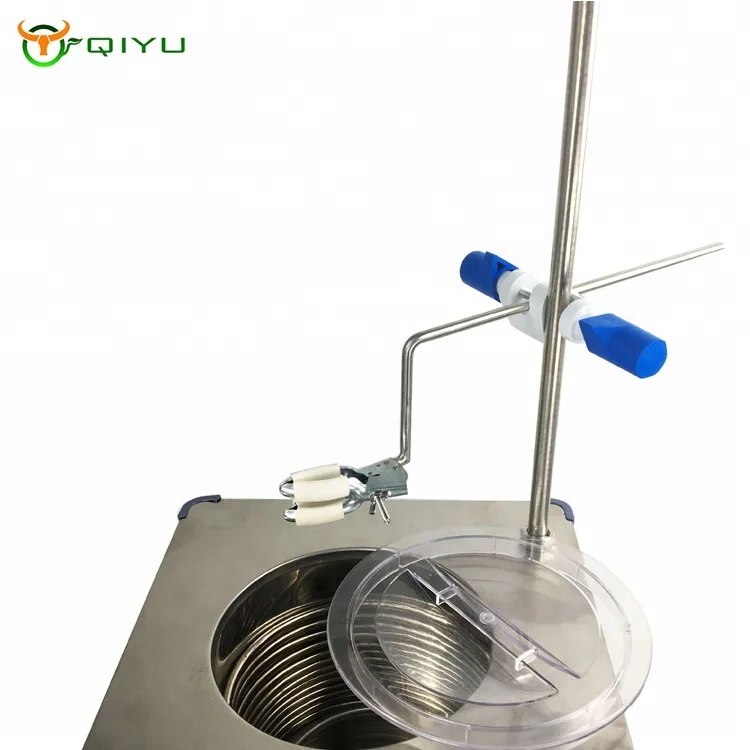

(4) Equipped with fixed rods to facilitate placement and fixation of other devices such as burette, sensor and so on.

Product Description

Type	Refrigeration performance			Cyclic performance		Temperature control performance
	Volume of liquid storage (L)	Temperature Range (℃)	Refrigerating capacity (W)	Flow (L/min)	Head (M)	Control accuracy (℃)
	Volume of liquid storage (L)	Temperature Range (℃)	Refrigerating capacity (W)	Flow (L/min)	Head (M)	Control accuracy (℃)
DFY-10/10	10L	`-12~98	1825-820	35	4--6	±0.1
DFY-10/20	10L	`-23~98	2100-780
DFY-10/25	10L	`-26~98	2170-780
DFY-10/30	10L	`-32~98	2436-820
DFY-10/40	10L	`-40~98	2548-980
DFY-10/60	10L	`-63~98	2732-310
DFY-10/80	10L	`-83~98	2900-230
DFY-10/120	10L	`-120~98	2982-200

Type	Working conditions			Dimension (mm)			Practical opening diameter (mm)
	Voltage(V)	Environment		Length	Width	Height
		Temperature	Humidity
DFY-10/10	220±10% 50Hz	25℃	(60%-80%) ventilation	580	450	730	285
DFY-10/20
DFY-10/25
DFY-10/30
DFY-10/40
DFY-10/60				720	650	900
DFY-10/80
DFY-10/120				940	710	900

Company Information

Qiyu Industrial (Shanghai) Co., Ltd. is located in the Jiading District Industrial Park of Shanghai city. We have considerable experience in R&D, and have obtained the national patent. We mainly produce glass reactor, rotary evaporator, short-path molecular distillation, temperature control system, vacuum equipment and other types of equipment.
The company has strong technical force, complete production equipment, continuous absorption of advanced technology at home and abroad, and active development of new products.
We will continue to pursue the dedication of "honesty and innovation", and provide customers with perfect pre-sale, sale and after-sales service. Internationalization and standardization will transform innovation into productivity and let customers to use synchronized international products.
