Dry Bath Block Incubators for Tube Heater

Product details
Port:Guangzhou, China;Temperature Display:yes;
Warranty:2 years;Time Setting Range:1 - 99h59min;
Model Number:TC0401001;Dimension(W x H x D) [mm:152 x 86 x 190;
Customized support:OEM,ODM,OBM;Classification:Laboratory Thermostatic Devices;
Supply Ability:5000 Units per Month;Set-up plate dimensions [mm]:96 x 76;
Weight:1.5kg;Brand Name:Four E's Scientific;
Set-up Plate Material:Aluminium Alloy;Packaging Detail:Export carton packing;
Condition:new;Place of Origin:Guangdong, China;
Display:LED Digital;Number of Blocks:1;
Payment Terms:L/C,T/T;Voltage(V):220 - 240 / 115;

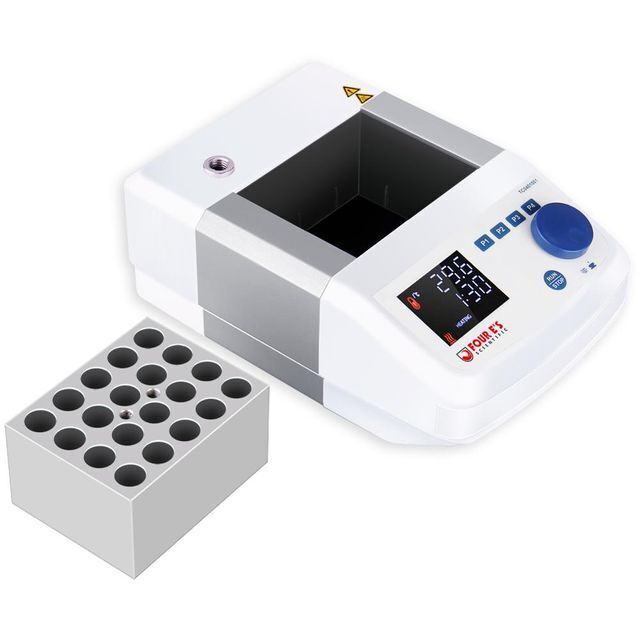

Dry Bath Block Incubators for Tube Heater



Product Description



Introduction

Dry Bath Incubators are ideal for incubation and activation of cultures, melting and boiling point determination, enzyme reactions, immunoassays, blood urea nitrogen determinations and a wide variety of other laboratory applications.



Four E’s Scientific Dry Bath Incubators can accommodate various interchangeable heating blocks and provide precise temperature control for reproducible results.



Features:

1.      LED display for easy reading

2.      3D digital wheel adjustment of speed and temperature

3.      Adjustable temperature is up to 120°C

4.      High temperature stability is up to ±0.2°C

5.      Machined aluminum heating unit allows for highly precise control of temperature

6.      Included PT1000 temperature sensor allows temperature control directly in the sample vessel.

7.      Adjustable timing range of 1min to 99h59min

8.      Fixed safety circuit

9.      Error code display

10.  Various applications with different blocks

11.   Automatic calibration with external PT1000 temperature sensor



Specification

Model

TC0401001

Number of blocks

1

Heat output [W]

165

Heating temperature range [°C]

room temp. +5° - 120

Temperature display

yes

Adjustment and display resolution [K]

0.1

Connection for ext. temperature sensor

DIN 12 878

PT 1000 variation; DIN EN 60751 Kl. A [K]

<= ± (0,15 +0,002xITI)

Temperature stability within the blocks<60°C * [±°C]

0.2

Temperature stability within the blocks> 60°C * [±°C]

0.2

Temperature Uniformity < 60°C * [K]

0.2

Temperature Uniformity > 60°C * [K]

0.2

Heating rate / Heat up time with external sensor * [K/min]

5

Set-up plate material

Aluminium alloy

Set-up plate dimensions [mm]

96 x 76

Fixed safety circuit [°C]

150

Timer

yes

Time setting range

1min - 99h59min

Dimensions (W x H x D) [mm]

152 x 86 x 190

Weight [kg]

1.5kg

Permissible ambient temperature [°C]

5 - 40

Permissible relative humidity [%]

80

Protection class according to DIN EN 60529

IP 21

Voltage [V]

220 - 240 / 115

Frequency [Hz]

50/60

Power input [W]

165

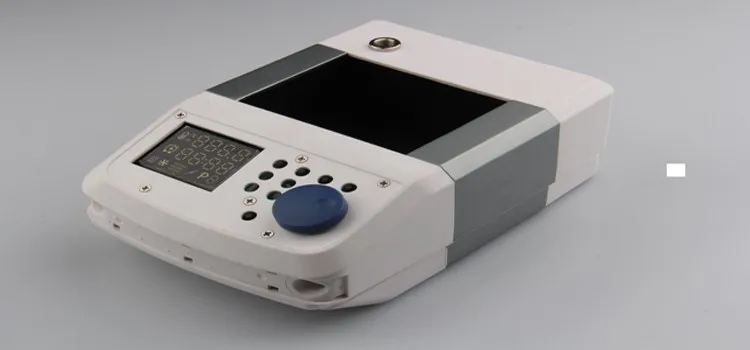

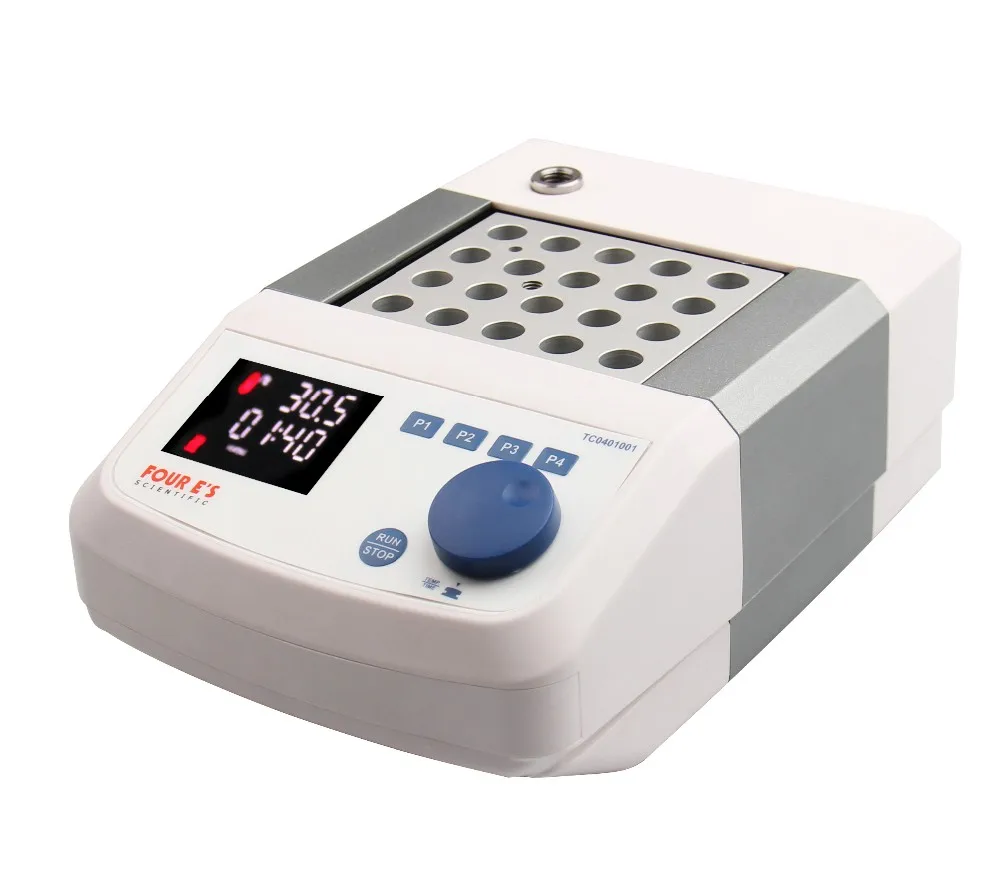

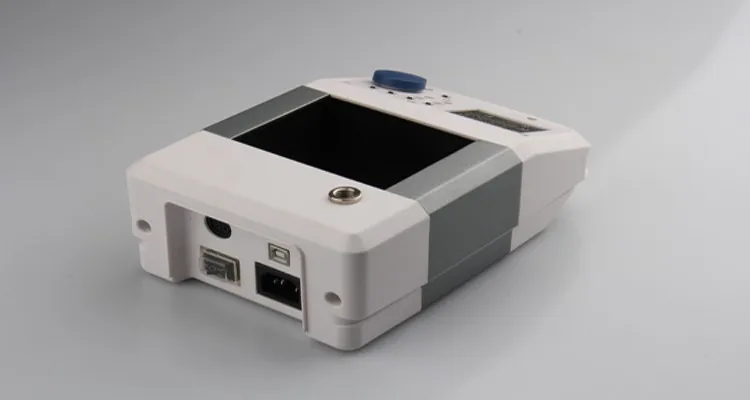

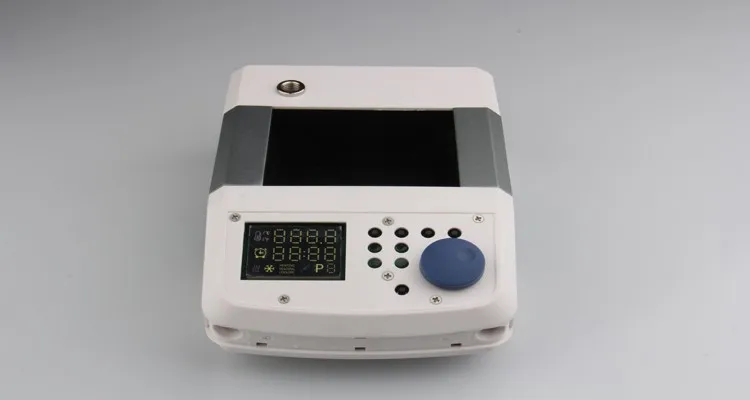

Detailed Images

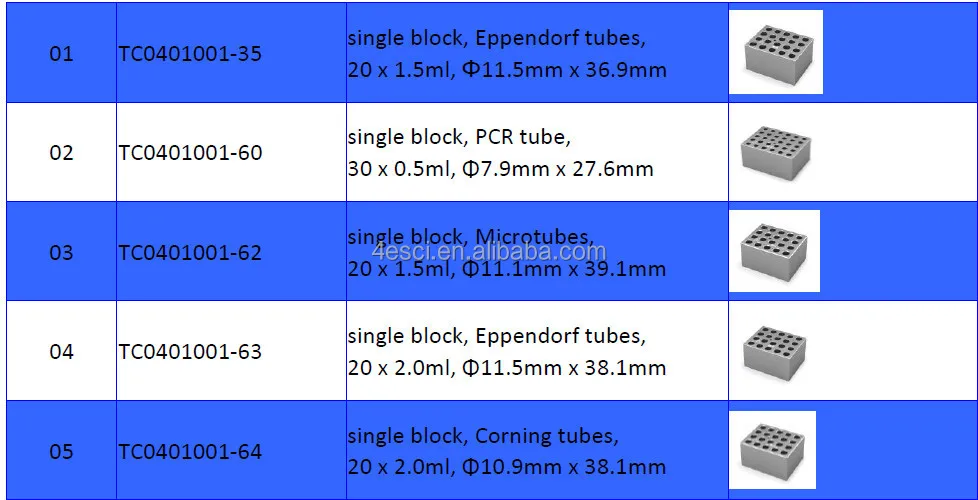

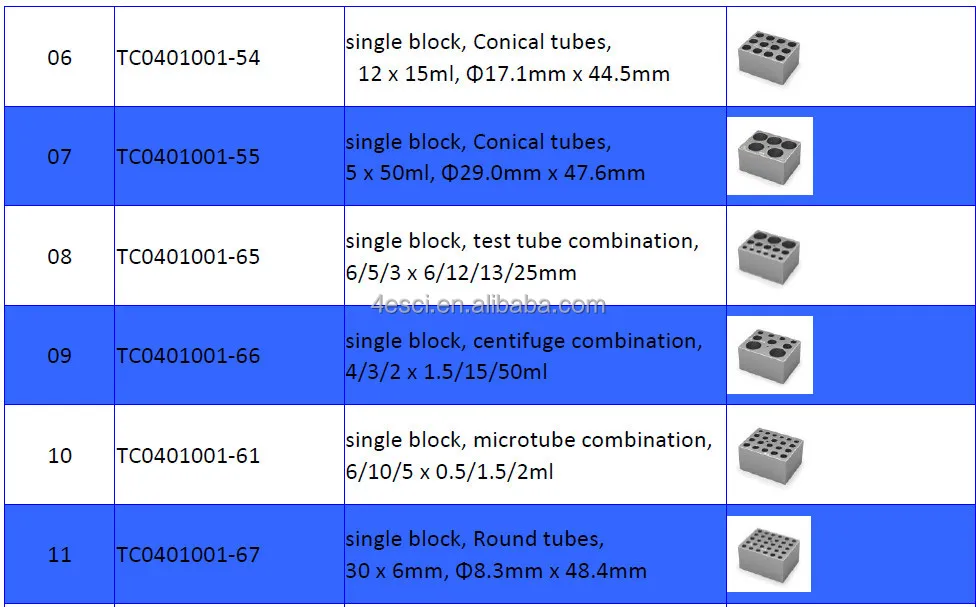

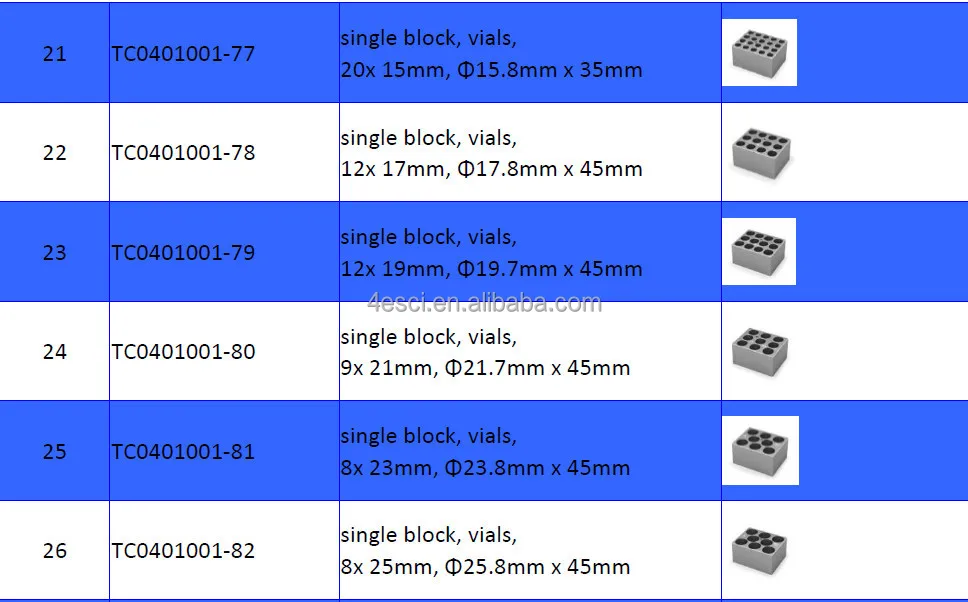

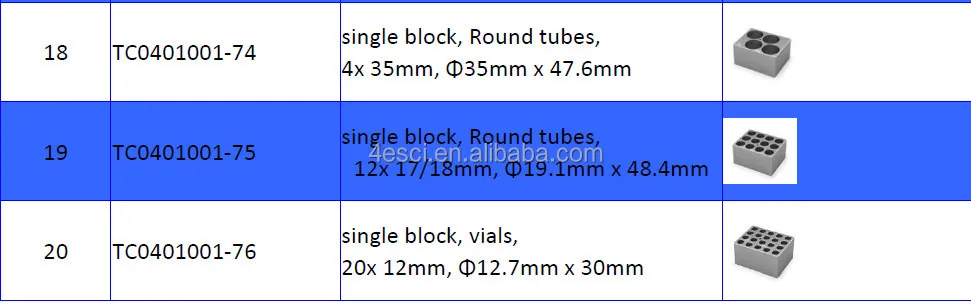

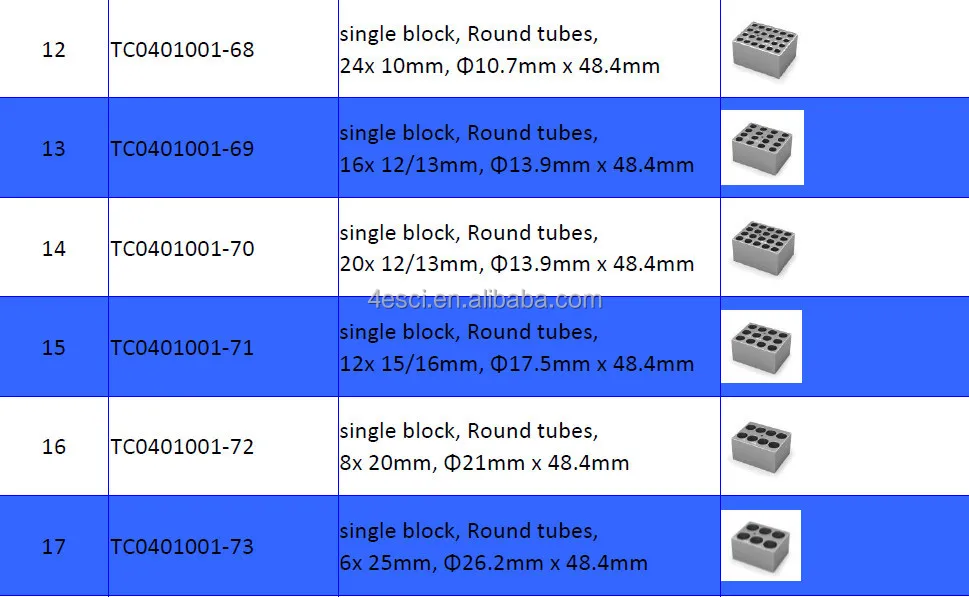

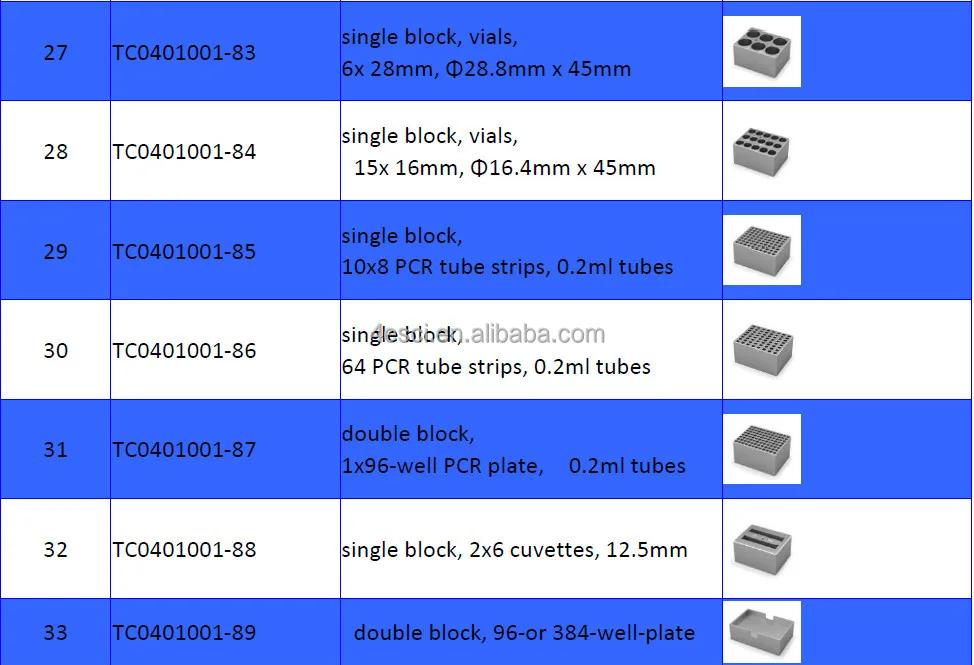

Accessories





Certifications

Certifications for Four E's Scientific Laboratory Instruments

Packaging & Shipping

In the information age, we're always keeping in mind that speed is everything and striving for the shortest lead

time to ship good products packed professionally with care.

Packaging
-Export carton packing;
-Both neutral and customized packaging can be available.


Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one based on your timeline and budget.



+
Shipping Method Remarks
Courier Shipping It's door to door and there's no nee for you to do the customs clearance and pick-up on your end.
Air Shipping It's airport to airport and you need to do the customs clearance and pick-up of the goods at your local airport,which you can have a local shipping agent to do for you.
Ocean Shipping It's port to port and you need to do the customs clearance and pick-up of the goods at your local port,which you can have a local shipping agent to do for you.

We signed good contract rate with our shipping agent, so our quotation on the freight cost in the 3 different options may help you to save your freight cost, but you can definitely choose to use your own shipping agent.



Our Services

We're born to be a service-oriented team and to achieve complete customer satisfaction has always been what we're striving for. Most of our R&D, technical and quality staff are good at English; they can write, read, listen and speak English well so we can react quickly and provide professional services once our customers have any problems related to technical matters, quality issues and so on.


Company Information

About us

Guangzhou Four E's scientific Co.,Ltd was established to serve the laboratory market worldwide with an objective to be recognized as one of China's leading manufacturers, exporters and marketers of top quality laboratory instruments and scientific equipments.



      Why us?

  • Research-intensive and innovative;
  • Wide range of lab instruments available;
  • Experienced OEM service made to customer specifications;
  • ISO9001/ISO13485 quality system certified;
  • Compliance with the advanced word standards and requirements;
  • Highest quality in the most cost effective way and prompt delivery;
  • Dedicated customer service and technical support.



FAQ

1.  Warranty

In accordance with 4E's warranty conditions,the warranty period is 24 months.For claims under the warranty,you may return the machine directly to our factory,enclosing the delivery invoice and giving reasons for the claim.You will be liable for freight costs.

The warranty does not cover worn out parts,nor does it apply to faults resulting from improper use,insufficient care or maintenance not carried out in accordance with the instrutions in the operating manual.



2.  Customization

Custom manufacturing is an important part of our business and core competency.We're experienced in the OEM services and customers who need custom products made to customer specifications are welcome to contact us directly to review your needs and get a custom quotation.
