Four E's Scientific MI0102003 Hot plate Magnetic Agitator Stirrer With DC Motor

Supplier: Guangzhou Four E's Scientific Co., Ltd.
Region: Guangdong, China
Contact: Ms Susan Zhou
Price: $95.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Classification:	Laboratory Heating Equipments;	Temperature Display:	LED;
Packaging Detail:	Export Carton Packing;	Warranty:	24 months;
Work Plate Material:	Stainless steel with ceramic coated;	Port:	China;
Model Number:	MI0102003;	Safety Temperature[°C]:	50-320;
External temperature sensor:	PT1000;	Protection class:	IP42;
Motor Type:	DC Motor;	Place of Origin:	Guangdong China;
Speed range:	50-1500rpm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Heating Temperature Range [°C]:	Room Temp.-280;	Dimensions[WHD,mm]:	26816085;
Brand Name:	Four E's Scientific;	Supply Ability:	2000 Unit/Units per Month LED Digital Hotplate;

Product Description

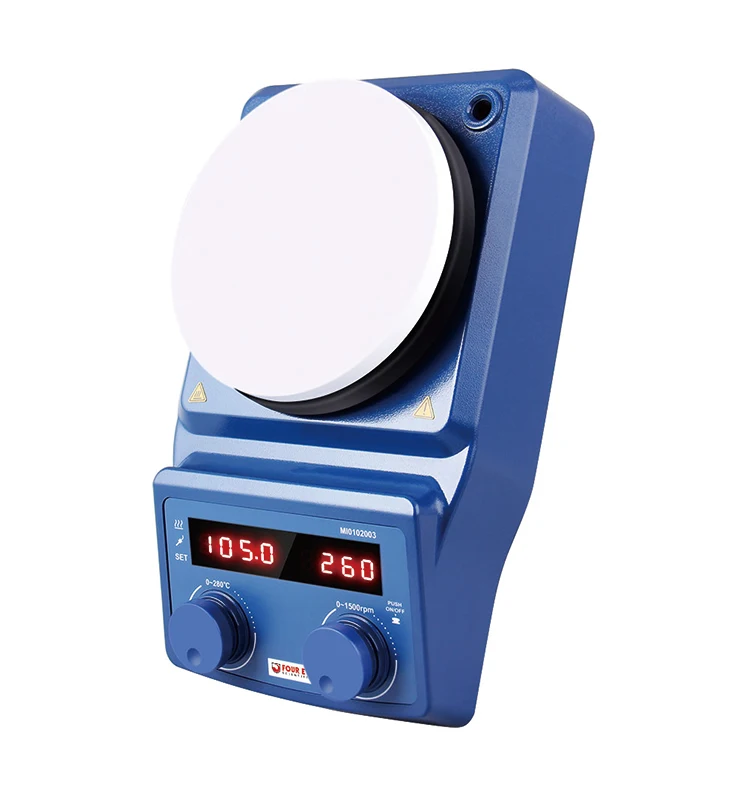

Four E's Scientific MI0102003 Hot plate Magnetic Agitator Stirrer With DC Motor

Introduction

The 5 inch Round-top LED digital Magnetic Hotplate Stirrer is with 280℃ heating temperature, which is the only low temperature magnetic stirrer in the world. It has micro controller and LED display, especially the stirrer can work with external temperature sensor PT1000.

Features

LED digital display for easy reading
Special plastic casing is high-temperature resistant and strong flame-retardant
Temperature is up to 280°C and the safety temperature is 50-320°C
Stainless steel with ceramic coated hotplate allows for immediate heat transfer
3D digital wheel operation to adjust the speed and temperature
Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode

Specifications

Model	MI0102003
Stirring positions	1
Set-up plate dimensions	Ø 135 mm
Set-up plate material	Stainless steel with ceramic coated
Motor type	DC motor
Max. stirring quantity (H₂O) [L]	5
Max. stirring bar [L x Φ, mm]	55*10
Motor rating input [W]	3
Motor rating output [W]	2.5
Speed range [rpm]	100-1500
Speed display	LED
Heating output [W]	600
Heating temperature range [°C]	Room temp.- 280
Temperature display	LED
Temperature display accuracy [°C]	±0.1
Safety temperature [°C]	50-320
External temperature sensor	PT1000
Control accuracy with external temperature sensor PT1000 [°C]	±1
Hot surface warning	50°C
Permissible ambient temperature [°C]	5 - 40
Permissible relative humidity	80%
Protection class according to DIN EN 60529	IP 42
Voltage [VAC]	200-240/100-120
Frequency [Hz]	50/60
Power[W]	630
Dimensions [W x D x H, mm]	268 x 160 x 86
Weight	1.8 kg
