Heat output[W]: | 430; | Classification: | Laboratory Thermostatic Devices; |
Power Supply: | AC 220V/110V 50Hz/60Hz; | Weight: | 7.5kg; |
Number of blocks: | 4; | Packaging Detail: | Packing of dry bath incubator: neutral carton; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; | Display accuracy: | 0.1 / LED; |
Supply Ability: | 2000 Unit/Units per Month Dry Bath Incubator; | Place of Origin: | Guangdong China; |
Heating Lid: | NO; | Port: | China; |
Model Number: | TC0401004; | Dimension(L x W x H) mm: | 152 x 86 x 465; |
Certificate: | CE; | Timer: | Yes; |
Heating Temperature Range: | RT+5°C~120°C; | Brand Name: | Four E's Scientific; |
About us
• Part of the FOUR E's Industrial Group, established in 2009
• The Scientific business was incorporated in 2014
• Focused on providing high-quality Scientific instruments and Laboratory and Medical supplies
• Strong track record of providing OEM/ODM Solutions to some of the big names in the Industry
• Certified by ISO 9001 and ISO 13485
Dry Bath Incubator with 2 blocks

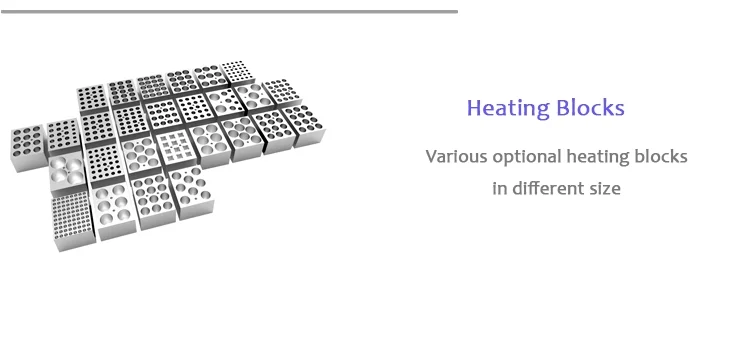

Features
Specification
Model |
TC0401003 |
Number of blocks |
4 |
Heat output [W] |
430 |
Heating temperature range [°C] |
room temp. +5° - 150℃ |

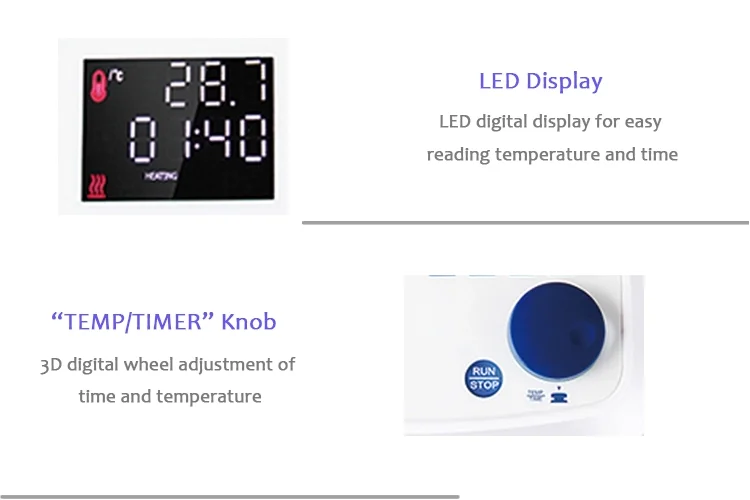

Temperature display |
LED |
Adjustment and display resolution [K] |
0.1 |

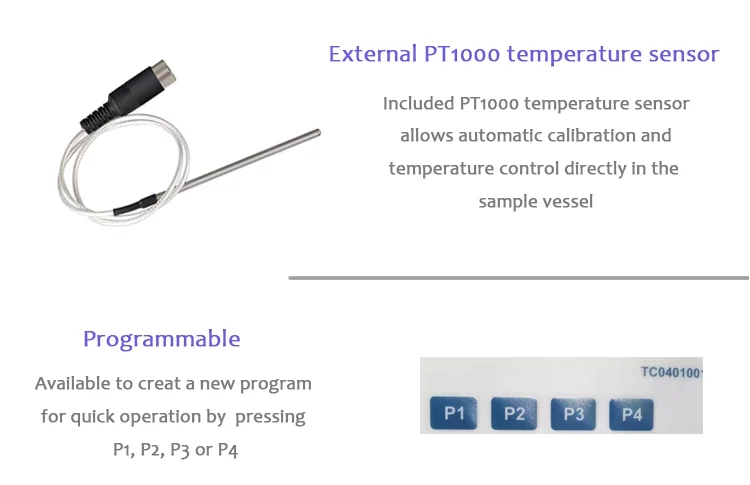

Connection for ext. temperature sensor |
DIN 12 878 |
PT 1000 variation; DIN EN 60751 Kl. A [K] |
<= ± (0,15 +0,002xITI) |
Temperature stability within the blocks<60°C * [±°C] |
0.5 |
Temperature stability within the blocks> 60°C * [±°C] |
1 |
Temperature Uniformity < 60°C * [K] |
0.2 |
Temperature Uniformity > 60°C * [K] |
0.2 |
Heating rate / Heat up time with external sensor * [K/min] |
5 |
Set-up plate material |
Aluminium alloy |
Set-up plate dimensions [mm] |
96 x 304 |
Fixed safety circuit [°C] |
180 |
Timer |
yes |
Time setting range |
1min - 99h59min |
Dimensions (W x H x D) [mm] |
152 x 86 x 465 |
Weight [kg] |
7.5kg |
Permissible ambient temperature [°C] |
5 - 40 |
Permissible relative humidity [%] |
80 |
Protection class according to DIN EN 60529 |
IP 21 |
Voltage [V] |
220 - 240 / 115 |
Frequency [Hz] |
50/60 |
Power input [W] |
412 |

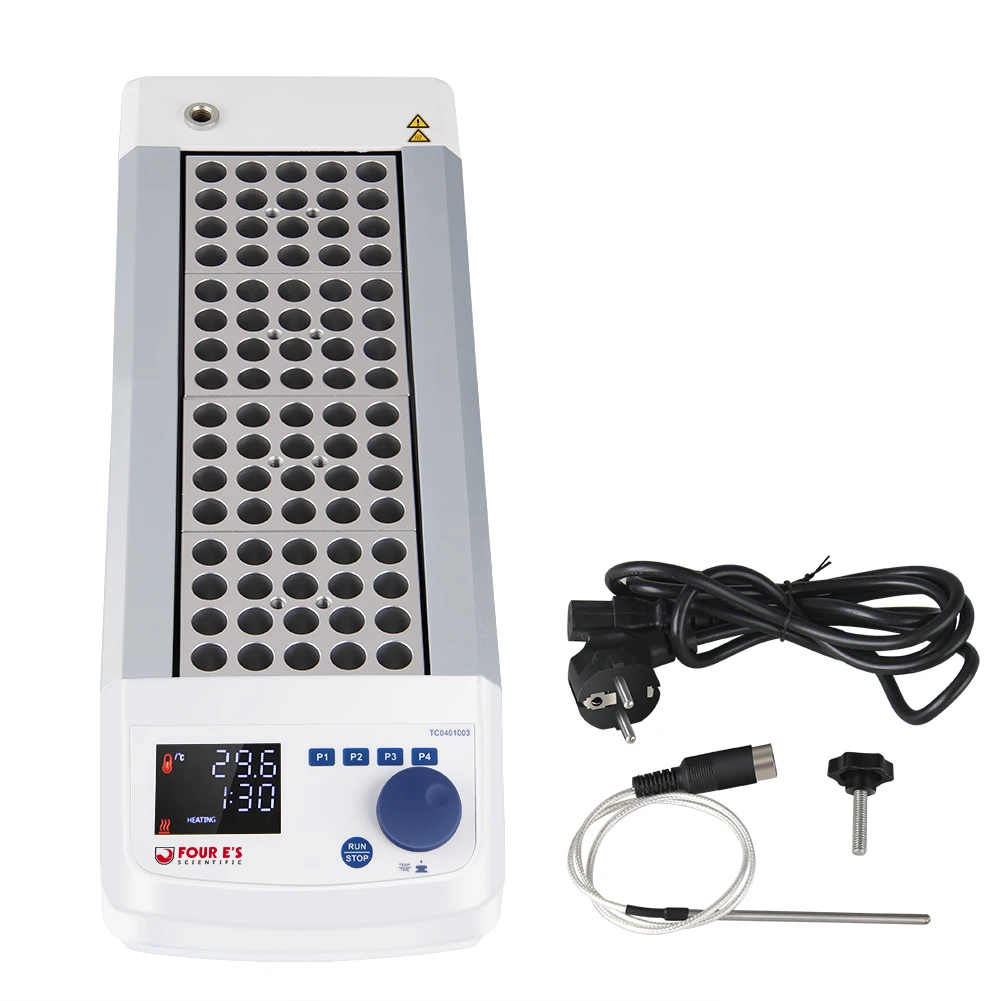

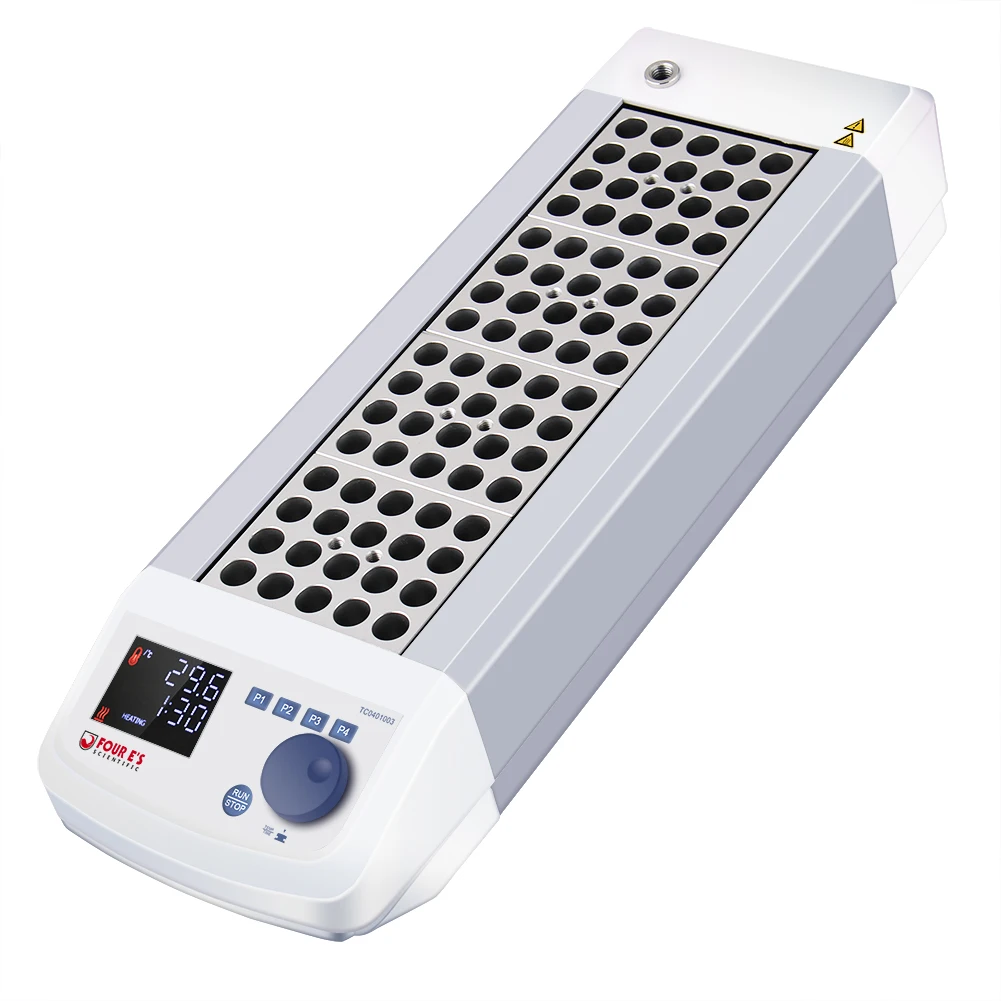

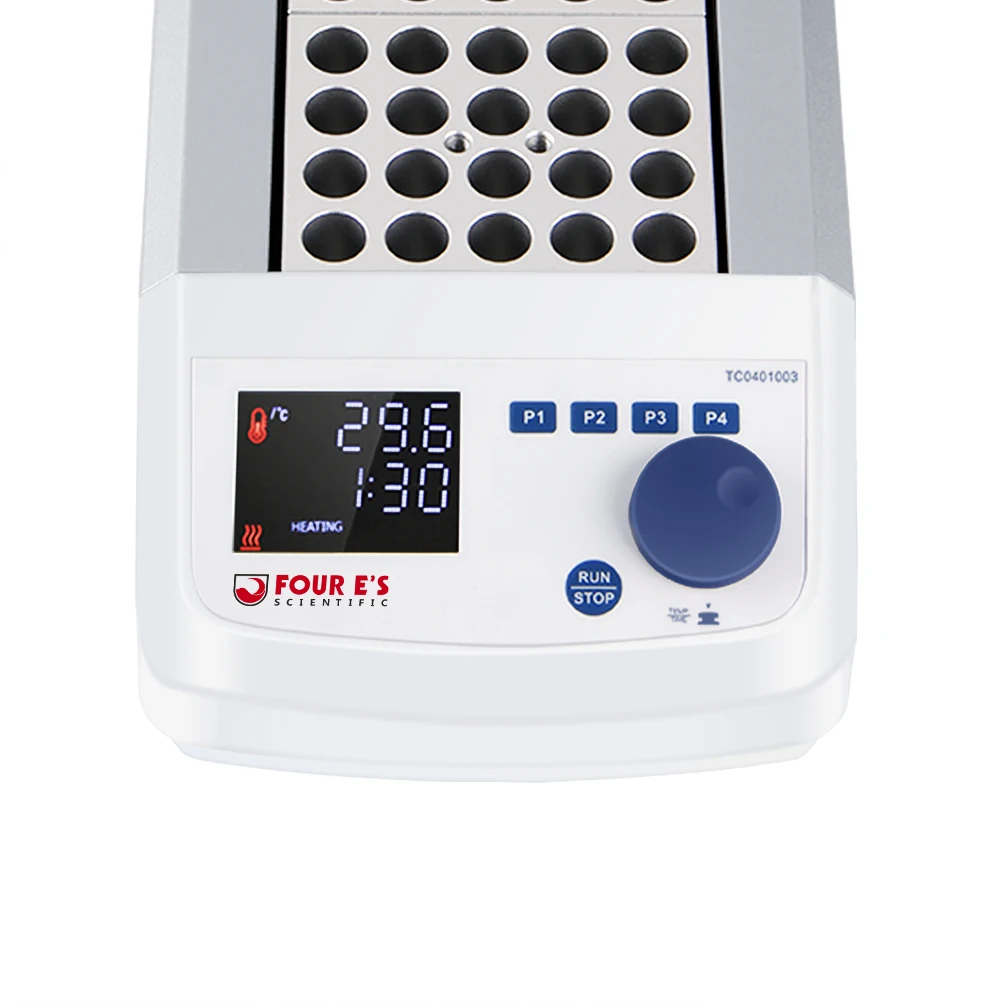

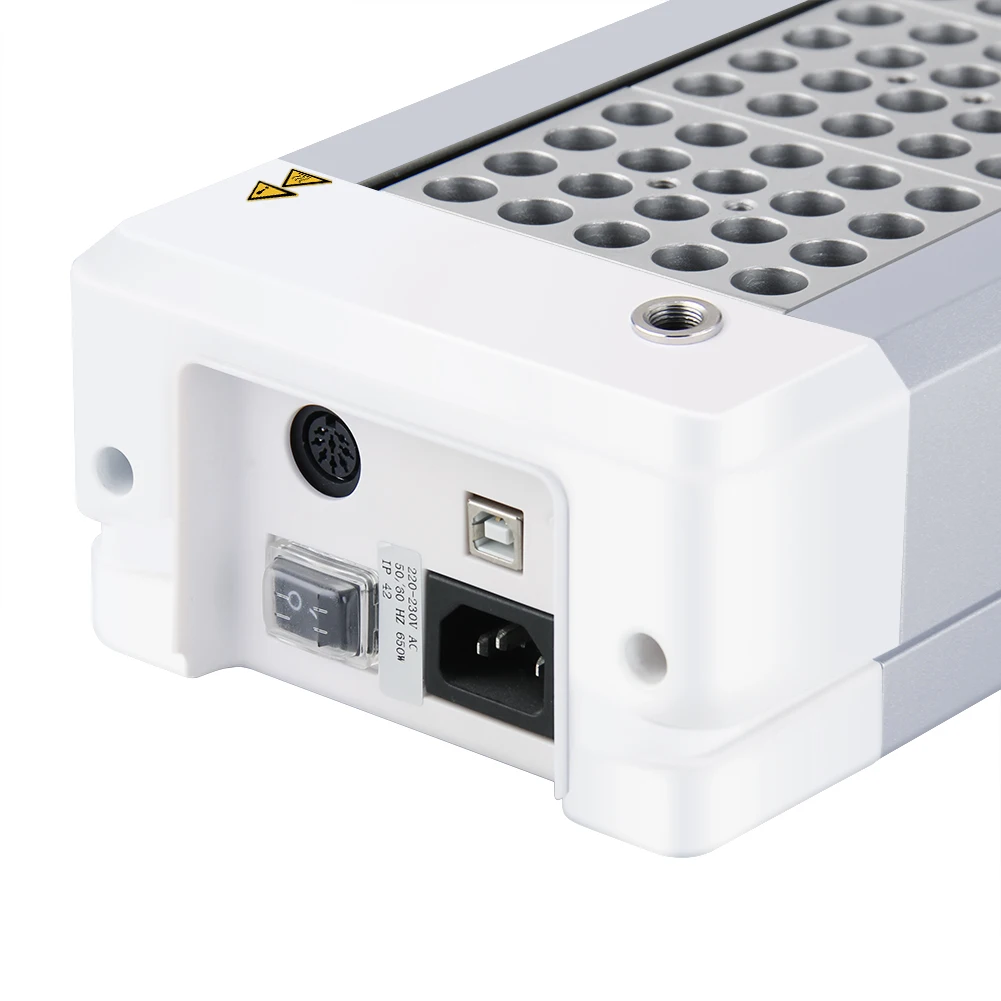

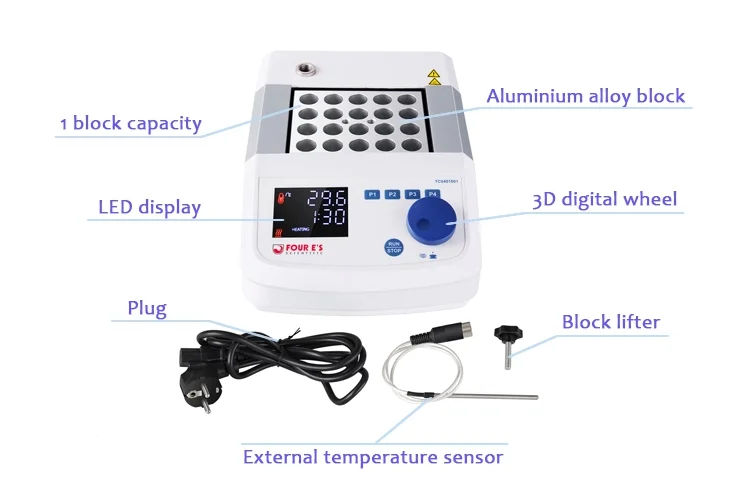

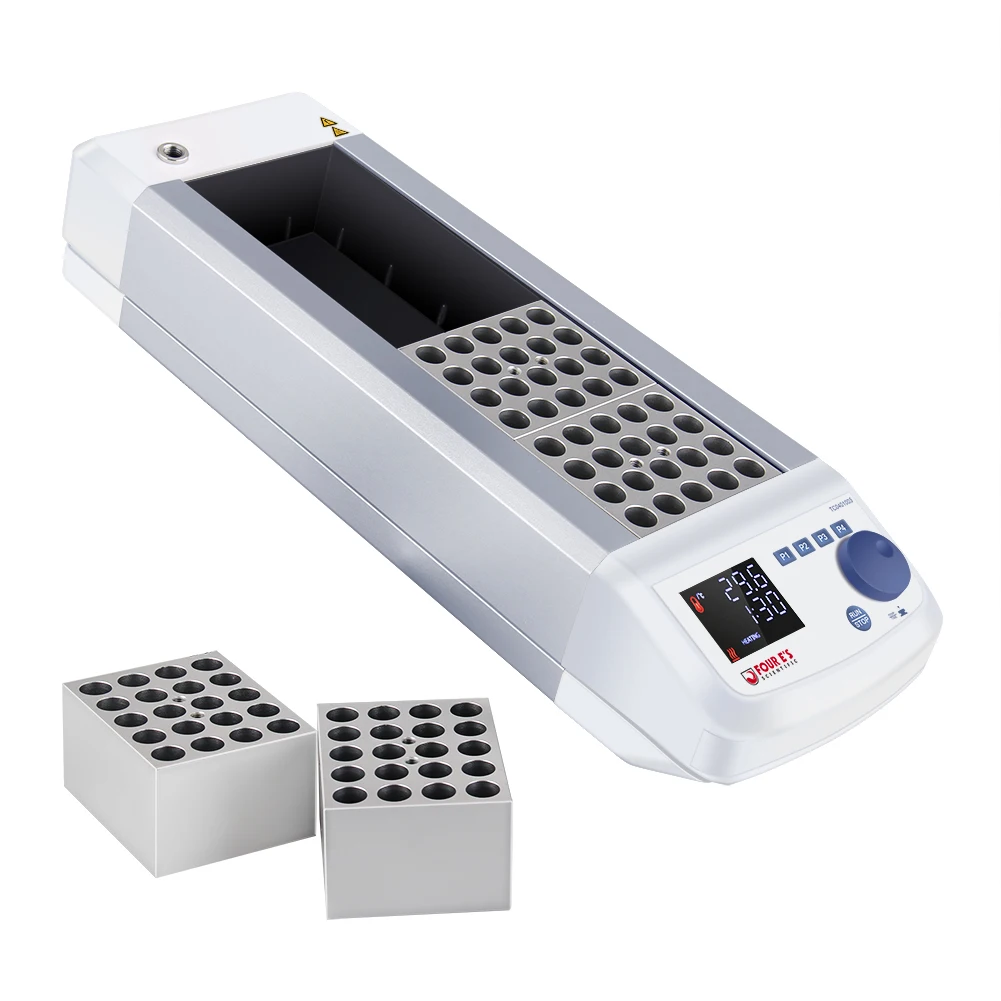

Product Pictures
Certificates
Delivery and FAQ
FAQ
1. Q: How about the color of products?
A: Please check the regular colors from our catalog (Asking from our customer service or downdoading from our website). We accept customized colors for large order quantites.
2. Q: How about the quality of products and warranty.
A: We have the full set of qualifications and certificates like ISO, CE,TUV and Rohs.
Each unit will be strictly tested on our production line before the shipment, also we offer the warranty of 12-24 months
3. Q: Can you provide samples ?
A: yes, we are able to offer samples, but customer is required to pay for the sample and shipping cost.
4. Q: How about the time of delivery?
A: Most of our products can be shipped in one month after we received the order payments. Please contact with us for specific ship date checking.
6. Q: What are your payment terms?
A: All payments should be made in US dollars, unless specified in the quotation sent to you.
