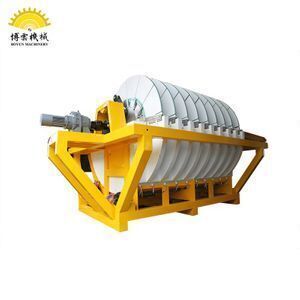

High Quality Ceramic Filter

Product details
energy saved ratio:80%;Selling Units:Single item;
Remark:filters for olive oil;L*W*H:5.1m*3.1m*2.6m;
Ceramic disk cleaning:ultrasonic and acid wash;hole diameter of ceramic plate:1-5um;
Plate diameter:1520mm;After-sales Service Provided:Engineers available to service machinery overseas;
Single gross weight:3,600 KG;use life:more than 10 years;
volumn of tank:5.4L;Single package size:1220X244X259 cm;
Brand Name:BOYUN;Warranty:1 Year;
After-sales Service Provided:Field installation, commissioning and training;Package Type:wood case or up to the customer' s demands;
filter area:30 square meter;Place of Origin:Jiangsu China;
advertising



Type

FilterArea(m2)

Disk

number

Plate number

(a)

Filter

Plate

Diameter

(mm)

Main size(L*W*H)

Weight

(KG)

Installed

Power

(kw)

BY-45

45

15/12

1920

7300×3200×2580

12000

27.55

BY-60

60

15/12

2060

7440×3260×2885

20100

37.5

BY-80

80

16/12

2100

7600×3260×3060

28000

48.5

BY-120

120

24/12

2100

10000×3260×3060

36000

48.5

BY-150

150

80/12

2100

11800×3260×3060

42000

48.5

selling points

SELLING POINTS

•  Energy saving and high efficiency, higher processing capacity;

• Automatic control, automatic feeding, automatic cleaning, highly automation, lower labor cost;

• Perfect automatic protection function: with automatic fault alarm system, fault screen display function, high and low liquid level display, and automatic removal or shut down manual processing;

• Firmly and durable structure: more than 10 years service life;

• Higher quality of products and lower cost of transportation;

• Obvious environmental protection effect: reusable, reduction of emissions,

conforming to current trend of clean production and environmental protection;

Application range
Boyun’s vacuum disc filters widely use for dewatering of concentrate and tailing in mine industries of non-ferrous metal, precious metal rare metal and minerals, and dehydration of electro slag, leaching slag, slag cement such like gold, silver, copper, iron, aluminum, tin, lead, zinc, nickel, palladium, cobalt, molybdenum, phosphorus, sulfur, silicon, silica, feldspar, electro slag, leaching slag, slag cement dehydration,coal washing, lead oxide, rare earth Zinc Oxide, zinc sulfide, as well as waste acid treatment. It is also using in such industries of chemical,food,power plant,stone fabrication,construction material,fertilize,pharmaceutical etc.
Related product

Company information
Lianyungang Boyun Machinery Co., Ltd. is a professional manufacturer of mineral machinery, specialized in the design, research & development, manufacture & sales. We have owned 60 products including feeding, cracked, transportation, ore grinding, classification, flotation, concentration, drilling & magnetic separation. Those are widely used in mines, drilling and engineering construction.
Boyun is located in Donghai County, Lianyungang City. There are 10 engineers & 100 staff members more or less. Boyun pays much attention to product quality, and actively follows ISO9001 standards. We have many advanced performance test equipment and continuously make improvements to our quality assurance system. Quality service is considered as an important part of our product quality, and we honor our commitments we make before and after sales. We take seriously on every machine production so that we make sure it meets demand of our customers. Besides, we also can supply our customers mineral separation program design, mineral separation technological process design and standard & non-standard design. Donghai has beautiful scenery and beaches, convenient transportation that included harbors, an airport, railroads, and highways.
Welcome friends all over the world to visit our factory.

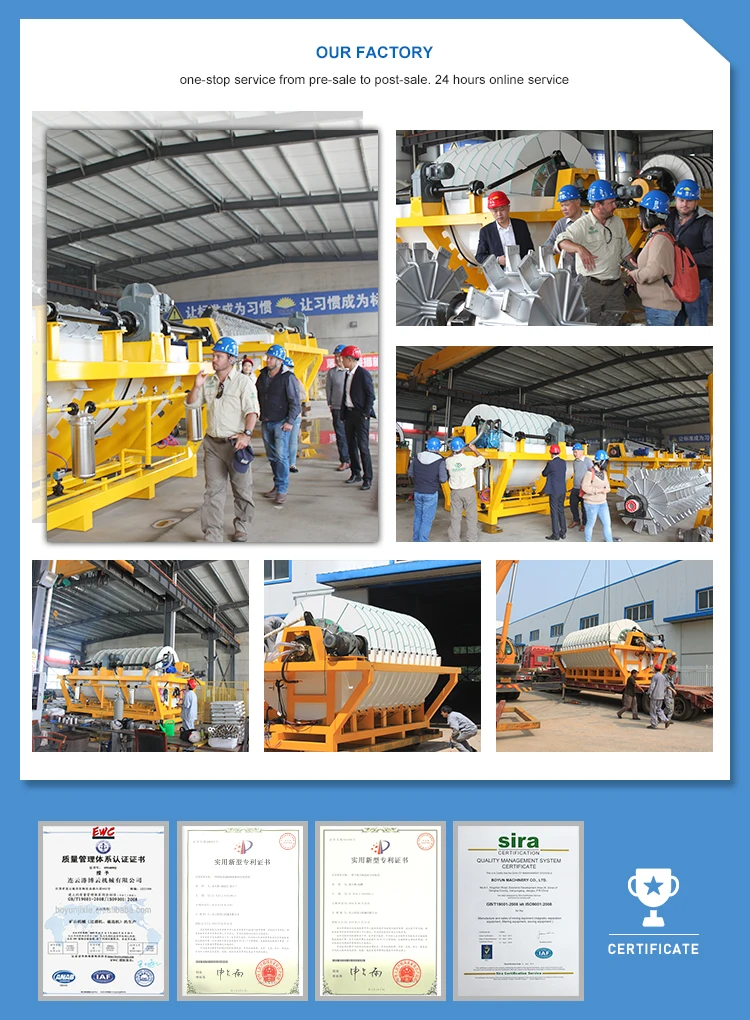

Our factory
