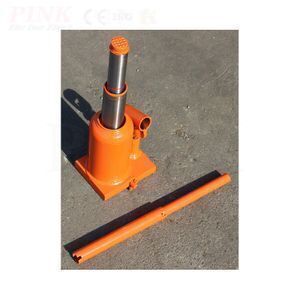

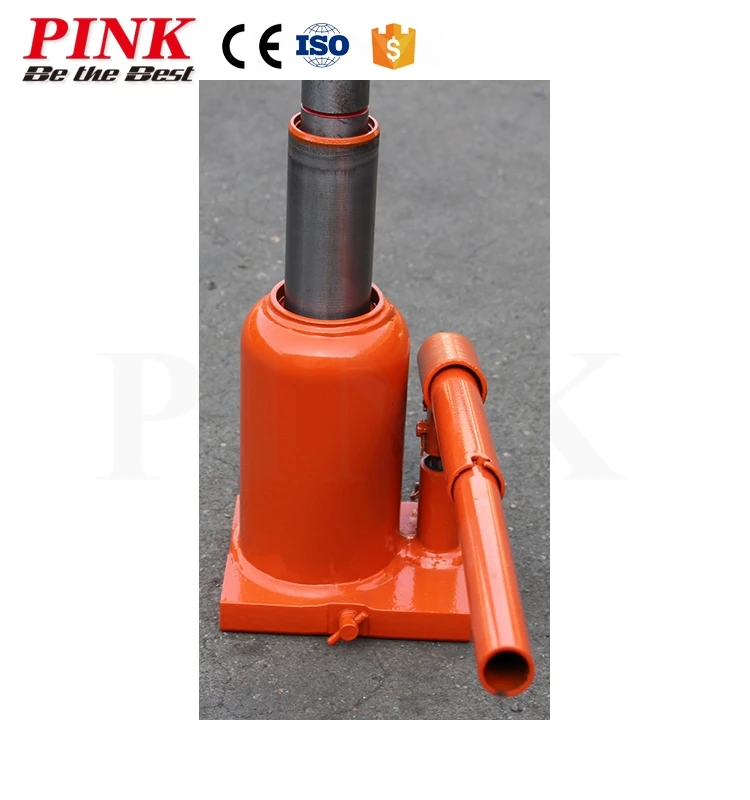

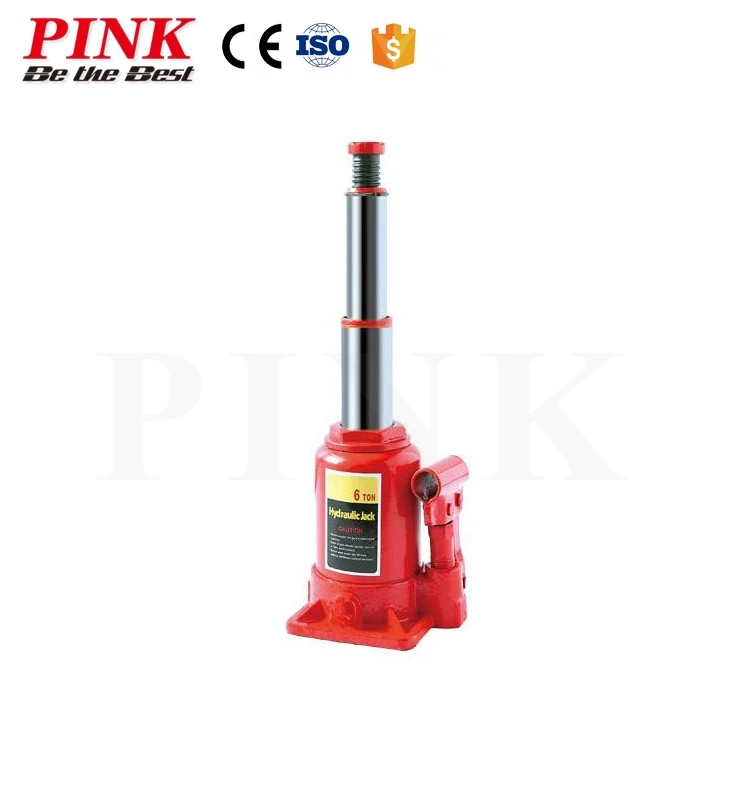

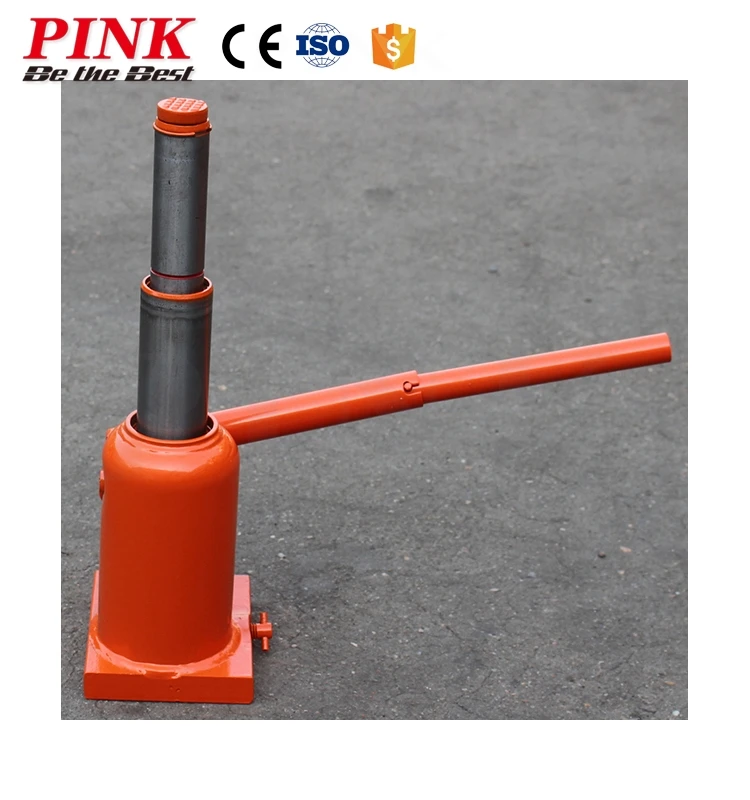

Two Stage Hydraulic Jack

Product details
Port:Shainghai;Place of Origin:Zhejiang China;
Precision:High Precision;Name:Double Ram Jack;
Brand Name:PINK;Capacity:2, 4,6,12,20,32T;
Model Number:NEDRJ-03;Material:Steel;
Application:Automotive Repair Tools;Warranty:1 Years;
Supply Ability:15000 Piece/Pieces per Month;Payment Terms:L/C,D/P,T/T,Western Union;
Certification:GS,CE;Color:Customer's Requirement;
Used for:Reapiring Car;N.W:3.5,3.8,5.5,10,14,20kg;
Use:Car Jack;Rising Range:180-400,160-380mm;
Type:Bottle Jack;Package:BMC Packing;
Packaging Detail:Carton Box Packing;
Product Description
Double Ram Jack Product Features:
1.Capacity: 2, 4,6,12,20,32T
2.Rising Range:180-400,160-380mm
3.N.W: 3.5,3.8,5.5,10,14,20kg
4.Certificate:GS,CE



Double Ram Jack Details & Function:

1. Jack refers to a light lifting device that uses a rigid lifting member as a working device to open a heavy object through a small stroke of the top bracket or the bottom bracket.
2. Jacks are mainly used in factories, mines, transportation and other departments for vehicle repair and other lifting and support work. The structure is light, sturdy, flexible and reliable, and can be carried and operated by one person.
3. Hydraulic jacks. It is used as an intermediate medium in the hydraulic transmission system to transmit and convert energy. It also plays the role of lubrication, anti-corrosion, cooling and flushing of various components in the hydraulic system.
4. When the hydraulic jack is used, the bottom should be flat and tough. Oil-free wood panels to expand the pressure surface for safety. It is not possible to replace the board with iron plates to prevent slipping.
5. When lifting, it is required to be stable. After the heavy object is lifted up, it is necessary to check whether there is any abnormality. If there is no abnormality, the ceiling can be continued. Do not arbitrarily lengthen the handle or operate too hard.
6. Not overloaded, super high. When the red line appears on the sleeve, it indicates that the rated height has been reached and the jacking should be stopped.
7. When several hydraulic jacks are working at the same time, a special person must be instructed to make the lifting or lowering synchronous. The wooden blocks should be supported between two adjacent hydraulic jacks to ensure the spacing to prevent sliding.
8. When using the hydraulic jack, always pay attention to the sealing part and the pipe joint part, it must be safe and reliable.
9. Hydraulic jacks are not suitable for use in places with acid, alkali or corrosive gases.



ModelProduct NameSpecificationMin.H.-Max.H.(mm)N.W(kg)20´GP(pcs)
NEDFJ-01Double Festival JackCapacity:2Ton;
Liftting:110,110mm
180-4003.55250
NEDFJ-02Double Festival JackCapacity:4Ton; Adjust:50mm
Lifting:85,85mm
160-3803.84800
NEDFJ-03Double Festival JackCapacity:6Ton; Adjust:50mm
Lifting:80,80mm
160-3805.53300
NEDFJ-04Double Festival JackCapacity:12Ton; Adjust:60mm
Lifting:110,110mm
220-50010.21800
NEDFJ-05Double Festival JackCapacity:20Ton; Adjust:60mm
Lifting:105,105mm
230-500141300
NEDFJ-06Double Festival JackCapacity:32Ton
Lifting:90,90mm
240-42020920
NEDFJ-07Double Festival JackCapacity:4Ton; Adjust:55mm
Lifting:92,92mm
175-41444600









Company Information



Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in Auto tool, we export during the past 10 years.



We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.



Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.



Packaging & Shipping





FAQ





If you are interested in our Double Ram Jack, please don't hesitate to contact us.
