2019 hot sale ISO9001 approved rolling mill aluminium

Product details
Voltage:380v;Finishing rolling exit thickness:0.5-0.06mm;
Type:Cold Rolling Mill;Weight:as designed;
Entry width:1000-2450mm;Rough rolling exit thickness:0.1-4.0mm;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;Certification:ISO9001:2008;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Payment Terms:L/C,T/T;
Place of Origin:Henan China;Entry thickness:Max 10mm;
Width of exit:950-2250mm;Rolling speed:1000max mm/min;
Packaging Detail:we use standard industrial requirement to pack the rolling mill aluminium;Supply Ability:20 Set/Sets per Year;
Power(W):as designed;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Aluminum alloy:1000,3000,8000 series;
Port:Qingdao or Shanghai;Weight of coil:20000Max kg;
Warranty:1 Year;Dimension(L*W*H):as drawing;
Rolling mode:Non-reversing;Brand Name:HZZG;

Product  description of rolling mill aluminium



rolling mill aluminium applies to product finished coil , using casting coil as blank,which provide blank for plate finishing and aluminum foil production.The entry thickness of the cold rolling mill is max7mm, and the exit thickness of the cold rolling mill is from 0.1 to 2 mm of pure aluminum and aluminum alloy.The whole cold rolling mill installed level is advanced, with convenient and reliable operation and maintenance. It also can bring good economic benefits for the user.



Technical Parameter of rolling mill aluminium

Aluminum alloy

1000,3000,8000 series

Entry thickness

10Max mm

Entry width

1000~2450mm

Dia. of work roll

Φ280~560 mm

Width of work roller

850~2500 mm

Dia. of back-up roll

Φ600~1500 mm

Width of back-up roller

800~2450 mm

Width of exit

950~2250 mm

O.D. of coil

Φ2500 max mm

Weight of coil

Max 20000 kg

Rolling speed

Max 1000 mm/min

Rough rolling exit thickness

0.1~4.0 mm

Finishing rolling exit thickness

0.5~0.06 mm

Rolling mode Non-reversing

Non-reversing

ABB Electric control system

SIEMENS  OMRON

Model type( rolling mill aluminium )



Φ280/φ780×1450

Φ380/φ960×1650

Φ420/φ1100×1850

Φ460/φ1300×2300



 Process flow of rolling mill aluminium

old rolling mill, cold rolling mill,  cold rolling mill,   cold rolling mill

Product advantage of rolling mill aluminium

This 4hi cold rolling mill adopts advanced technology all over the world,equipped with AGC. CVC system. And it has automatic control function with the full hydraulic machine electricity integration. The 4hi cold rolling mill can automatically balance and center, automatic thickness. It is the most advanced in the field of non-ferrous metal cold rolling mill

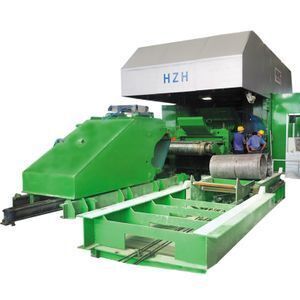

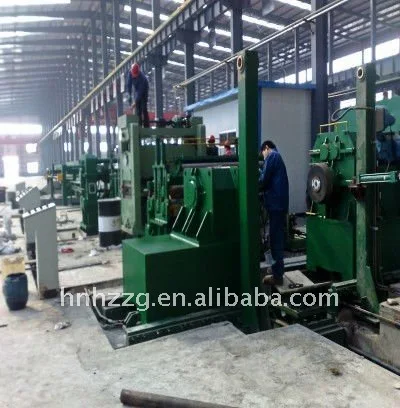

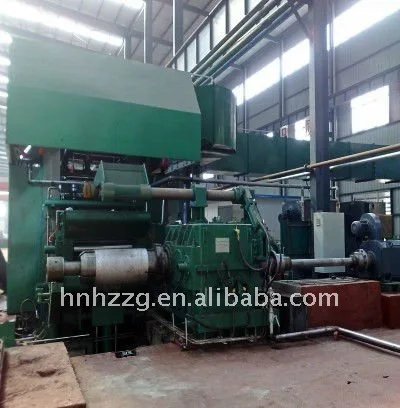

Detailed Images





   cold rolling mill ,cold rolling mill ,cold rolling mill



Company Information

Our company is specialized in manufacturing & installing aluminum equipment. We can also undertake the design and manufacture of other non-ferrous metal equipment. Our concrete products include such as cold rolling mill, aluminum cast rolling mill , aluminum foil rolling mill, tension leveler line, cut to length line, aluminum cleaning line ,cast roll, cast roller, steel sleeve, aluminum-related. We can undertake the mechanical, hydraulic & electrical upgrading of the above equipment.

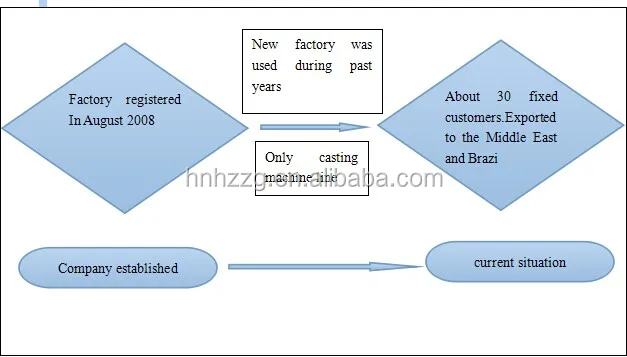

Compony development

Strategic partners



main product

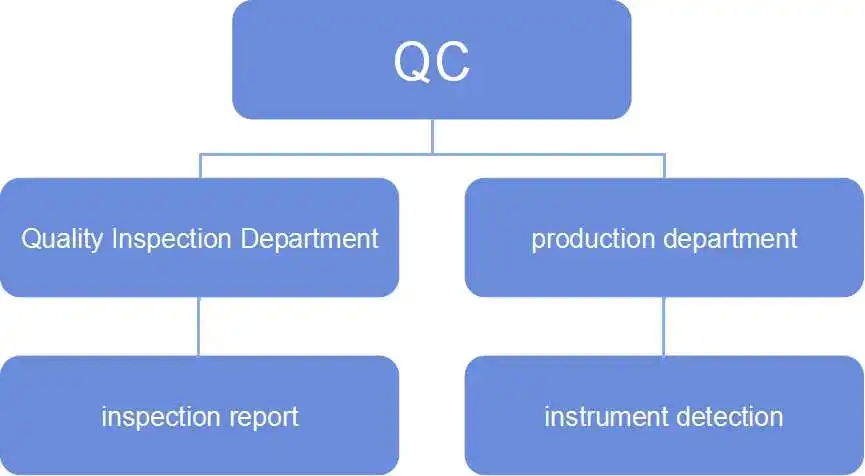

Quality control

Product certification

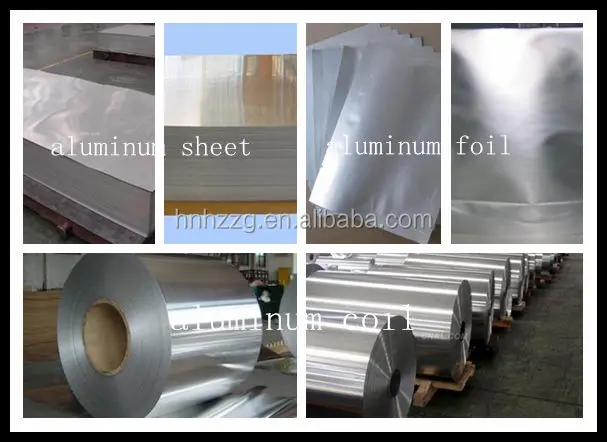

down-stream product

Why us?

1.we have We have professional engineers to help you design your machines.

2.We take care of your orders and ensure the quality.

3.reasonable price and good corporate image

4.Experience in international cooperation





Our Services

1.We have technical team to provide technical advice,confirm customer's needs and offer complete solutions.

2.We have professional experience in the design,manufacture and installation of machines.





Connect me

For more information about rolling mill aluminium, please contact us directly. We hope to receive your detailed inquiries soon, and we are looking forward to having the chance of cooperating with you in the near future.
