factory price usb capacitive touch panel square 1280*800 17 inch touch screen monitor
-
Supplier: Shenzhen Hopestar Sci-Tech Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Angel He -
Price: $109.00 / >=2 units -
Min. Order: 2 units
| Place of Origin: | Guangdong China; | Touch validity: | >1,000,000; |
| Contrast ration: | 800:1; | Keywords: | 17 inch touch screen montior; |
| Display ration: | 4:3; | Type: | Capacitive; |
| Brightness: | 350cd/㎡; | Pixel pitch: | 0.264H*0.264V; |
| Screen Size: | 17"; | Single gross weight: | 24 KG; |
| Products Status: | Stock; | Resolution: | 1280 x 1024; |
| Single package size: | 64X42X46 cm; | Brand: | HOPE or OEM; |
| Number of color: | 16.7M; | Brand Name: | Hope or OEM; |
| Selling Units: | Single item; | Response time: | 5ms; |
| Package Type: | Standard Package: 435*140*430mm one unit box 570*443*440mm external carton(4PCS); | Color: | Black; |

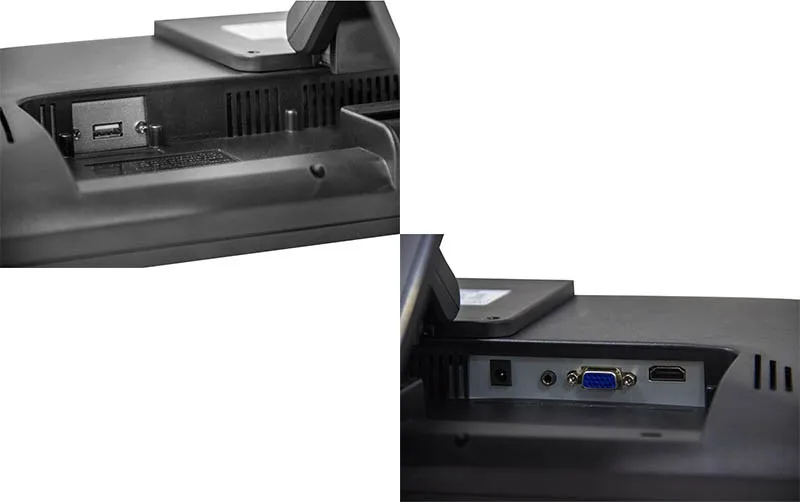

| Interface Type: | D-Sub,USB,hd/RS232; |
factory price usb capacitive touch panel square 1280*800 17 inch touch screen monitor
| General | |||||
| Series | Water-proof and Open frame | ||||
| LCD Type | 17” Active matrix TFT-LCD | ||||
| Video Input | VGA, DVI and hd | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Power Supply | Type: External brick | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12 volts at 4 amps max | |||||
| Mount Interface | 1)VESA 75mm and 100mm | ||||
| 2)Mount bracket, horizontal or vertical | |||||
| LCD Specification | |||||
| Active Area(mm) | 337.920(H)×270.336(V) | ||||
| Resolution | 1280×1024@75Hz | ||||
| Dot Pitch(mm) | 0.264×0.264 | ||||
| Nominal Input Voltage VDD | +5.0V(Typ) | ||||
| Viewing angle (v/h) | 85°/88° | ||||
| Contrast | 1000:1 | ||||
| Luminance(cd/m2) | 250 | ||||
| Response Time(Rising) | 5s/5s | ||||
| Support Color | 16.7M | ||||
| Backlight MTBF(hr) | 30000 | ||||
| Touchscreen Specification | |||||
| Type | Projected Capacitive touch screen | ||||
| Multi touch | 10points touch | ||||
| Touch Life Cycle | 10 millions | ||||
| Touch Response time | 8ms | ||||
| Touch System Interface | USB interface | ||||
| Power consumption | +5V@80mA | ||||
| External AC Power Adapter | |||||
| Output | DC 12V /4A | ||||
| Input | 100-240 VAC, 50-60 Hz | ||||
| MTBF | 50000 hr at 25°C | ||||
| Environment | |||||
| Operating Temp. | 0~50°C | ||||
| Storage Temp. | -20~60°C | ||||
| Operating RH: | 20%~80% | ||||
| Storage RH: | 10%~90% | ||||
Professional Applications:
A. Game Monitor
B. Design
C. Film and Movie Display
D. Office Monitor
Shenzhen Hopestar Sci-tech Co., Ltd. is a leading company of LCD and LED Monitor in shenzhen ,China ,As a High - tech enterprise, we have our own R&D, Factory,Marketing and after sales service department,We are specialized in LCD Monitor, Touch Screen Monitor,CCTV Monitor , Open Frame Monitor, All in one PC since 2002
HOPESTRAR Factory
Area: 10,000M² Non-dust standard workshop
Worker: 300 workers
Annual :1,000,000pcs of monitors annually
Shipping:
| Dimension | Unit (W xD x H) | 462x170x350mm |
| Packed (W xD x H) | 523x120x353 mm | |
| Weight | N.W | 2.5kg |
| G.W | 3.5kg | |
| Loading qty. | 20GP | 1380pcs(without pallet) / 1000pcs (by pallet) |
| 40GP | 2780pcs(without pallet) / 2000pcs (by pallet) | |
| 40HQ | 3080pcs(without pallet) / 2160pcs (by pallet) |
Sample Availability & Policy:
Paid samples are available in 3 - 7 days.
Buyer covers the shipping cost, Sample fee can be deducted from the first order
OEM & ODM sample lead time to be discussed.
Product Compliance :
All our Products can be compliant with RoHS, CE, FCC.
We can also do WEEE / REACH Complaint.
Recycle Material Compliant
UL / CSA Complaint can be done upon requirement
PSE / NCC can be done upon requirement
Warranty & Spare parts Conditions :
1. Our Products comes with 3 Year Warranty
2. We offer Premium Quality for Customer to make better profits
3. We maintain High Quality Standard
4. Our Products makes Customer Best Seller Product
5. We provide Best Product for futher sales
6. We sell Original Authentic Product to Customer
7. Our Products are Environment Friendly Products.
TRADE INFO
Trade Terms: FOB, CIF, EXW
Payment terms: T/T, Western Union, PayPal, Escrow, MoneyGram.
Payment Condition: 30% deposit in advance, 70% balance after delivery
Delivery Time:5-7 working days after deposit,3-4 working days for inventory
Packing: Neutral Carton, Wooden case for large size
Shipping: By sea, by air and by express delivery
1) Q:What is the minimum order?A: Yes, our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
2) Q:What payment methods your company accept?A:We accept most of the payment methods, Western Union, Paypal, T/T
3) Q:How long is the warranty time for your products?A:3 years
4) Q:I haven't done business with you guys before,how can i trust your company?A:Our company has been in Alibaba.com for 7,almost 8 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.
5) Q:what's the shipment terms and delivery time of your company?A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-5 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.A:We hope you know that our company Hopestar perfectly support customized logo service.
