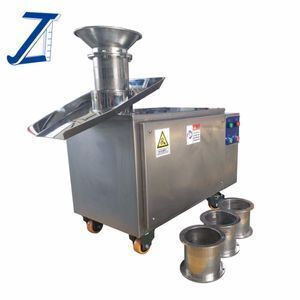

Lab basket extruding granulator
-
Supplier: Jiangyin Junzhuo Machinery Manufacturing Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Cindy Xin -
Price: $1000.00 /unit -
Min. Order: 1 unit
| Place of Origin: | Jiangsu China; | Supply Ability: | 50 Unit/Units per Month; |
| Brand Name: | junzhuo; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Food Shop,Energy & Mining,Food & Beverage Shops; |
| Voltage: | 380V/50HZ; | Raw material: | 304/316SS; |
| Weight (KG): | 90; | Machine Type: | Granulator; |
| Application: | Pharmaceutical,Chemical,Food,Cosmetic; | Capacity: | 5-20kg/h; |
| Dimension(L*W*H): | 680*380*680mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Total Power: | 1.5kw; | Port: | shanghai; |
| Rotation Speed: | 55rpm; | Condition: | New; |
| Warranty: | 1 Year; | After-sales Service Provided: | Video technical support,Online support; |
| Certification: | ISO9001; | Power (kW): | 1.5; |
| Granule Diameter: | 0.8-2mm; | Payment Terms: | L/C,T/T; |
| Packaging Detail: | International woden case; | Product Type: | Cosmetic; |
| Output (kg/h): | 20; | Overall Size: | 680*380*680mm; |
Basket Granulator
The product is gently pressed to granulate with a loose structure and large surface area.
In the product chamber of the basket granulator, two rotors operate in counter rotation. The upper rotor ensures good mixture and carries the material downwards. The lower extrusion rotor compresses the material and extrudes it through the screen basket.
The basket granulator is often used in pellets with a porous structure and large surface area, easily dispersible granulate, drinks powder, sauces and soups, detergent, pesticides and so on.
Features
Extruding granulation by compression/rotating extruding blade and cylinder screen
Continuous granulation into φ 0.8~8mm columnar granules
Extremely efficient with the screen opening 360-degrees
Improvement of handling and dosing properties
Low densification
Low dust cylindrical pellets with large surface
Good deformation properties
Wet mixed powder is added into the feeding hopper. In the upper chamber of our basket extruders the counter rotating internal breaker bar system breaks larger clumps of wet feed material to allow gravity to convey the wetted mass down into the bottom extrusion rotor arms which, in turn, densifies the material and extrudes it through the screen basket. Formed extrudates are discharged without damage by our proprietary discharge chute design. After drying, final granules will be obtained.
Optional
AC variable frequency drive for accurate control
Explosion proof electrical are available.
CGMP, Food, or Industrial design
316L, 316, 304 Stainless Steel process wetted parts
Packing Details : International Wooden Case
Delivery Details : 15-30 Days After Payment
Jiangyin Junzhuo Machinery Manufacturer Co.,Ltd offers a sophisticated lines of mixers, crushers, granulators and blenders to meet all requirements of cGMP. Our history starts in 2008, as an ever-evolving industry and a full-service provider, we are committed to delivering solutions for the pharmaceutical, nutraceutical, food, chemical and cosmetic industries.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shippment.
-
