DW-HL678S 7inch touch screen controller -86 degree ultra low temperature freezer

Product details
Product name:Ultra low freezer DW-HL678S;Type:Vertical;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Input power:1200W;
Brand Name:OEM;Packaging Detail:According to the require of customer.;
Supply Ability:100 Unit/Units per Month;Place of Origin:Zhejiang China;
Storage temperature (℃):- 10 ℃ ~ -86 ℃;Racks(5*5):20;
Weight (kg):340;Port:Any port in china.;
Max Vials (1.5ml):50000;Classification:Laboratory Refrigeration Equipments;
Application:blood stations, hospitals;Model Number:DW-HL678S;
External size (W* D * H) mm:1090*998*1968;Inside size (W* D * H) mm:750* 696 * 1268;

DW-HL678S 7inch touch screen controller -86 degree ultra low temperature freezer

DW-HL678S

Features

  • CFC-FREE mixture refrigerant ensure fast refrigeration and environmental friendly

  • Adopted famous SECOP compressor and Germany brand EBM fans

  • 7”inches LED screen control system has clear display and allows more accurate temperature control

  • Equipped with VIP plus vacuum insulation foaming inside the door for better temperature performance

  • High quality structure steel external material and 304 grade stainless steel inner material, exquisite beauty and easy to clean

  • 2-layers of solid doors with 2 independent inner doors to protect your lab and medical materials in proper temperature

  • Allow storage of inventory 2”box in 500 pieces and inventory 2ml vial in 50000 pieces

  • Lockable door and keyboard lock with password to prevent unauthorized operating and access

  • Fitted with 4 PCS casters & level feet for easy moving the ultra low temperature freezer

  • Enable machine startup delay, power off protection, and 72 hours battery backup for controller display

  • Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked

  • Optional temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system

  • Certificate: CE certificate, ISO9001, ISO14001,ISO13485

Applications

Apply to blood stations, hospitals, health and epidemic prevention system, scientific research institutes, biological engineering, laboratory in colleges and universities, military industrial enterprises, etc.

Description

Control System:

7inch touch screen controller,  -40℃~-86℃ adjustable, controlling precision is 1℃.

Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and being terminated.

Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.

Structure Design:

Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing

Front opening lockable door with newingenioushandle, easy open and close.

Vacuum release port

Adjustable stainless steel shelves with inner insulation doors, double silicon gasket seal.

Two-times foaming technology. 120mm foaming insulation , with VIP insulation board.

With USB store functions.

Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.

Refrigeration System:

Imported famous brand compressor, Lower the noise and reduce the power consumption

Fan electromotor with internationally famous of Germany EBM

China Patent technology of mixture refrigerant, specially Single stage refrigeration design

Parameters
Model: DW-HL678S

Capacity(L):678

Input power:1200W

External size (W* D * H) mm: 1090*998*1968

Inside size (W* D * H) mm: 750* 696 * 1268

Storage temperature (℃): - 10 ℃ ~ -86 ℃

Weight (kg): 340

Racks(5*5):20

Max Vials (1.5ml): 50000



Specifications

ModelDW-HL678SDW-HL778SDW-HL858SDW-HL1008S
Effective Volume(L)6787788581008
Input Power(W)1450145018251900
External Dimensions(W*D*H,mm)1090*1025*19551205*1025*19551217*1025*20051362*1025*2002
Internal Dimensions(W*D*H,mm)750*696*1286865*696*1286877*696*13781022*696*1378
Net Weight(Kg)330380390430
Inventory Rack(Model & Quantity)ZKL304-552B-CT:20ZKL304-552B-CT:24ZKL304-552B-CT:12+
ZKL304-552B-CT 12
ZKL304-552B-CT:14+
ZKL304-552B-CT 14
Inventory 2"Box (pc)5*5*20=5005*5*24=6005*5*12+6*5*12=6605*5*14+6*5*14=770
Inventory 2ml Vial (pc)50000600006600077000
Rated Current (A)7.57.58.59.3
Power Consumption (kWh/24h)14.414.516.519.15
Shelves3 pcs3 pcs4 pcs3 pcs
Inner Doors4 pcs4 pcs2 pcs2 pcs
Performance
Temp.Range(°C)-10 ~ -86Ambient Temperature16°C - 32°C
CoolingDirect coolingEvaportorD-form copper tube
Data OutputUSBDefrostManual defrost
AlarmVisual & Audio;
High/low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm
Construction
Compressor2 pcFan MotorEBM
Compressor BrandSecop (danfoss)Inner MaterialSS304
Casters4 casters with 2  leveling feetExternal MaterialSPCC steel with  powder coating
Access Test Port3 pcsSealing MaterialMVQ
Door LockYesDisplayTouch screen
Insulation  Thickness (mm)130RefrigerantCFC-Free mixture gas
InsulationVIP Plus vacuum  insulation panelClimaticN
Optional
Chart RecorderOptionalData LoggerOptional
CO2 Back up SystemOptionalBackup BatteryOptional

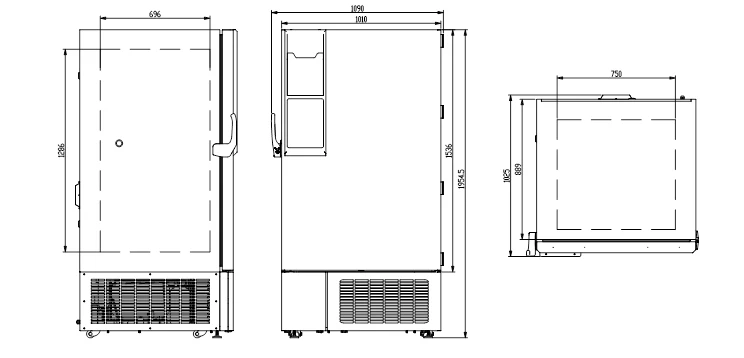

Dimensions
