electric hoist

Supplier: Shandong Tavol Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Cecilia Liu
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	Construction Hoist;	Place of Origin:	Shandong China;
Lift Speed:	8m/min;	Power Source:	Electric;
Port:	Qingdao China;	Name:	Wire Rope Electric Hoist Crane;
Supply Ability:	100 Set/Sets per Week;	Voltage:	220V-440V;
quality:	highest;	Packaging Detail:	wooden box by LCL;
Power supply:	380V 50Hz Three-phase;	Capacity:	0.5-30T;
After-sales Service Provided:	Free spare parts;	Condition:	New;
Application:	Lifting Goods;	Sling Type:	Wire Rope;
Type:	Moveable;	Warranty:	1 Year;
Certification:	CCC CE ISO SGS;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Product name:	Electric Wire Rope Hoist;	Brand Name:	Tavol;
Lifting height:	6m-30m(max 100m);	Color:	Optional;

NEW Type!20t electric hoist 1t 3t 5t 10t 15t 25t 30t

Product Description

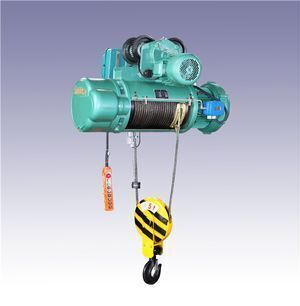

Wire Rope Electric Hoist

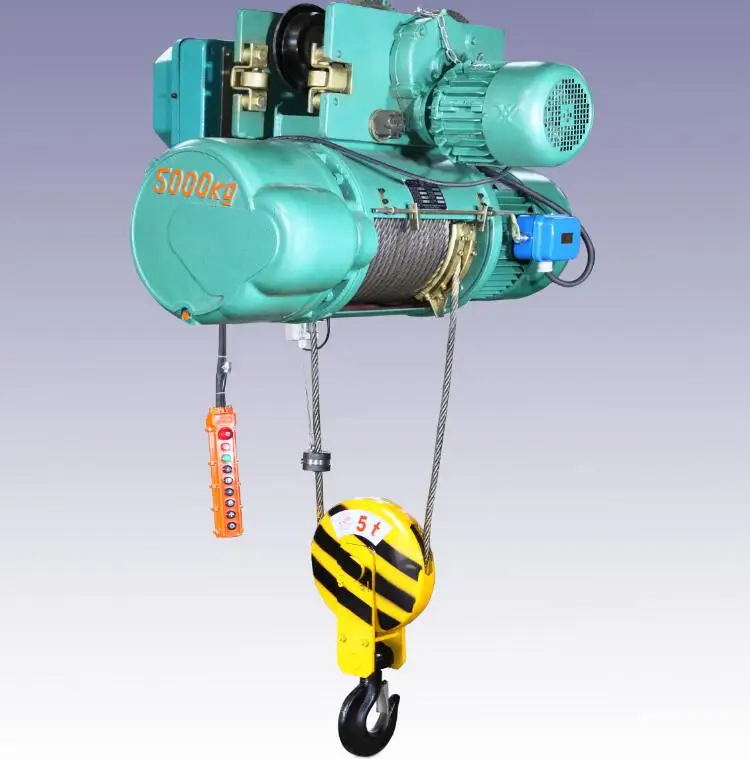

Wire Rope Electric Hoists 5t

Lifting capacity: 1-20tons
Lifting height: 6- 40m
Specification same with CD1/MD1 hoist.

Model		CD1 MD1
Capacity		Tons	0.25	0.5	1	2	3	5	10	16
Hoisting height		M	3,6,9	6,9,12	6,9,12,18,24,30				9,12,18,24,30
Hoisting speed		M/MIN	8(0.8/8)	8(0.8/8)	8(0.8/8)				7(0.7/7)	3.5 (0.35/3.5)
Travel speed		M/MIN	20	20/30	20/30	20/30	20/30	20/30	20/30	18
Wirerope		Dia.(mm)	3.6	4.8	7.4	11	13	15	15	17.5
Wirerope		Spec.	6x39	6x37+FC	6x37+FC				6x37+FC	6x37+FC
Hoisting motor	Type	Type	ZD112-4	ZD121-4	ZD122-4	ZD131-4	ZD132-4	ZD141-4	ZD151-4	ZD151-4
	Type	Type	ZD112-4	ZDS1 0.2/0.8	ZDS1 0.2/1.5	ZDS1 0.4/3.0	ZDS1 0.4/4.5	ZDS1 0.8/7.5	ZDS1 1.5/13	ZDS1 1.5/13
	Power	Power(kW)	0.4	0.8(0.2/0.8)	1.5(0.2/1.5)	3.0(0.4/3.0)	4.5(0.4/4.5)	7.5(0.8/7.5)	13(1.5/13)	13(1.5/13)
	Rotation speed	Rotation speed(r/min)	1380	1380	1380	1380	1380	1400	1400	1400
	Current	(A)	1.25	2.2(0.72/2.4)	4.3(0.72/4.3)	7.6(1.25/7.6)	11(2.4/11)	18(2.4/18)	30(5.2/30)	30(5.2/30)
Travel motor	Type	Type	ZDY110-4	ZDY111-4	ZDY111-4	ZDY112-4	ZDY112-4	ZDY121-4	ZDY121-4	ZDY121-4
	Power	Power(kW)	0.06	0.2	0.2	0.4	0.4	0.8	0.8x2	0.8x2
	Rotation speed	Rotation speed(r/min)	1400	1380	1380	1380	1380	1380	1380	1380
	Current	Current(A)	0.3	0.72	0.72	1.25	1.25	2.4	2.4	2.4
Power			AC 380V,50HZ,3P

Packaging & Shipping

Our Services

1. Once provide us the requirement, the details technical data and CAD drawing will provide you at the first time.

2. Strict quality control system, supervision the work to ensure the best crane for you.

3. Strict production line, make sure manufacture the goods on time.

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

5. If needed, senior engineers can be your side do the installation guide and training.

Company Information

Shandong Tavol Machinery Co.,Ltd is a leading manufacturer and service provider of lifting and Materials handling products, including Overhead crane, Gantry crane, Jib crane Hoist,Scissor Lift, Lift Platform, Port Machinery,and all kinds spare parts for these machines and so on.

Tavol Cranes has been in the International Market Since 2005, Join all kinds International Bidding for the Cranes and Warehouse Building, Own Three (03) International Installation Team, has Sales and Service more than 40 countries, Such as: Indonesia, Vietnam,UAE,Australia, Bangladesh, Jordan, Iran, Egypt, Ethiopia, Romania, Russia, Kazakhstan,Brazil, Mexico, Philippines etc.

As kinds of cranes are customized, in order to offer you most suitable design and best solution, please kindly tell us the following information when you send inquiry.

FAQ

Buyer Notice:

As kinds of cranes are customized, in order to offer you most suitable design and best solution, please kindly tell us the following information when you send inquiry.

1- Lifting Capacity ?

2- Lifting height ?

3-Fixed type or Trolley type

4- power supply: 380V/50Hz/3phase is acceptable or not ?
