Cross travel speed: | 0~20m/min; | Showroom Location: | Philippines,Brazil,Peru,Indonesia,Pakistan,Mexico,Argentina,Colombia,Algeria,Sri Lanka,Bangladesh,South Africa; |
Applicable Industries: | Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Packaging Detail: | 1) Standard container packing; 2) According to customer's requirements; |
Control method: | Ground control or cabin control; | Application: | Widely used; |
Lifting mechanism: | Electric hoist; | Port: | Qingdao Port, China; |
Color: | Yellow; | Payment Terms: | L/C,T/T,Western Union; |
Brand Name: | Tavol; | Place of Origin: | Shandong China; |
Span: | 6-40m; | Main electrical parts: | International famous brand; |
Overhang part: | Needed or not; | Certification: | ISO; |
Max. Lifting Height: | 40m; | Warranty: | 4 years; |
Key Word: | gantry crane; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Lifting speed: | 0~8m/min; | Local Service Location: | Philippines,Brazil,Peru,Indonesia,Pakistan,Mexico,Argentina,Sri Lanka,Bangladesh,South Africa; |
Rated Loading Capacity: | 1 ton~32 tons; | Long travel speed: | 0~30m/min; |
Rated Lifting Moment: | 50KN~3000KN; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; |
Supply Ability: | 100 Set/Sets per Month; | Work duty: | A3~A5; |
Feature: | Gantry Crane; | Condition: | New; |
5 ton 10 ton Single Girder Chinese Gantry Crane for Industrial Factory
Project Story
We received the inquiry from this client on April 6, 2019. But at that time, they told us they
were looking for overhead crane.
After checking the design drawing of their workshop, we found that it cost too much to add
steel structures to support overhead crane. And on the other hand, it was not easy to meet customer’s requirement on lifting height by overhead crane. Finally we recommended gantry
crane design with European type electric hoist.
Our client was moved by our design since we were considering saving cost from the
perspective of customers but not focused on profit. They did not ask any discount for
Proforma Inovice and paid the deposit on April 21, 2019. When the 5 tons single girder gantry crane arrived at client’s factory, they are very satisfied because we treated each package well.

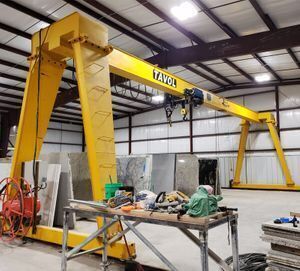

Our USA client finished installation and commissioning of the 5 ton single girder gantry
crane on October 29, 2019. They spoke highly of our professional service online though
time between China and USA is quite different.
On December 26, 2019, we got an email from our USA client. They wrote our gantry crane
are working perfectly and they are in the planning stages of their next building. And also they
will be contacting us for another crane in the new 2020.
Main Specification
SI | Description | Reference Data |
1 | Lift capacity | 5 Tons |
2 | Span | 13.9 Meters |
3 | Lift height | 3 Meters |
4 | Work duty | A5 |
5 | Lift motor | 6.1/1KW |
6 | Lift speed | 5/0.8M/Min |
7 | Cross travel motor | 0.5KW |
8 | Cross travel speed | 5/20M/Min |
9 | Long travel motor | 1.5KW X 2 |
10 | Long travel speed | 2/20M/Min |
11 | Power supply | 480V/50Hz/3P |
12 | Hook | Hook with safety lock |
13 | Runway | P24 with accessories |
14 | Cable spring | Included with accessories |
15 | Safety features | 1) Emergency stop 2) Phase and terminal protection relay 3) Limit switch for lifting 4) Limit switch for travelling 5) Warning system with horn and light 6) Overload limit switch |
Pictures of Main Components

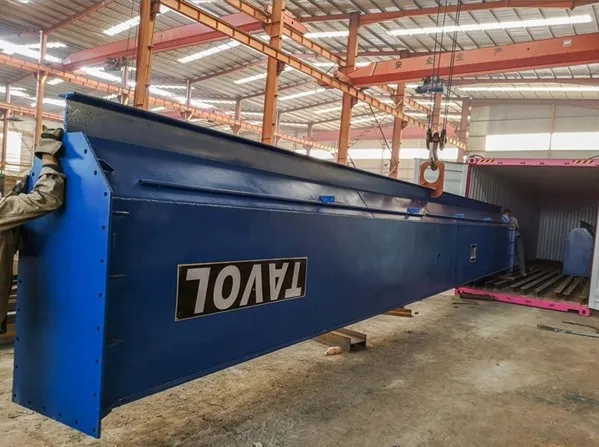

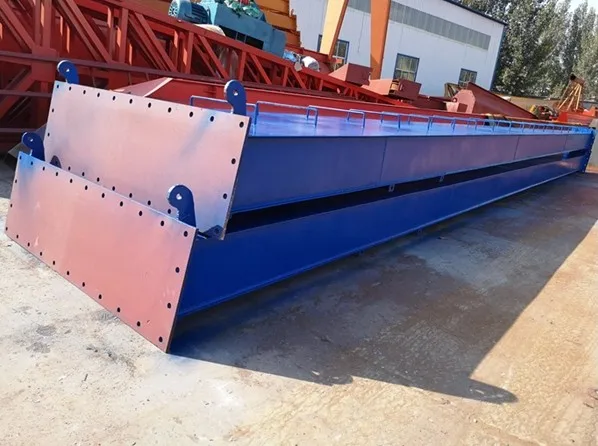

Main Girder | Ground Girder |

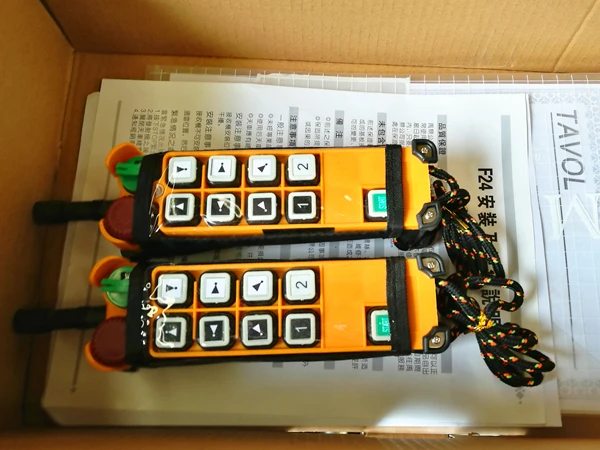

Supporting Legs | Wireless Remote |

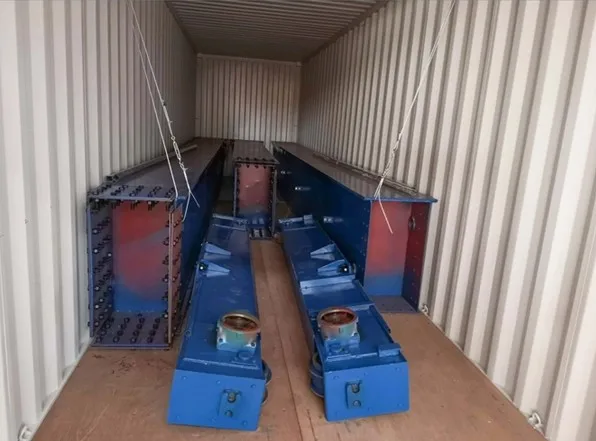

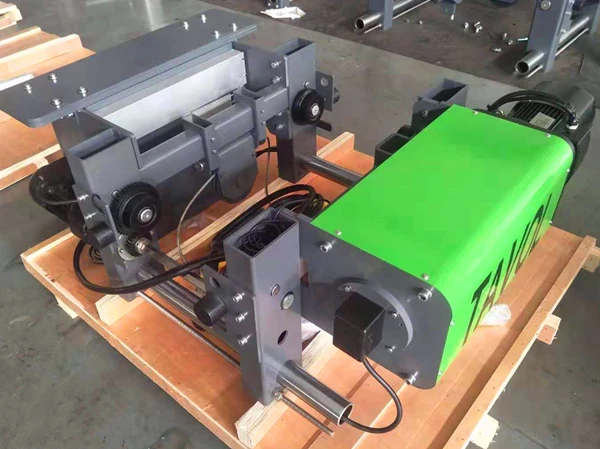

European Electric Hoist | Container Loading |
Business Terms
1 | Payment Term | TT or L/C. |
2 | Delivery Term | Within 25 working days after the seller get the deposit or original L/C. |
3 | Packing Term | Standard container packing, 1 pieces of 40 feet container |
4 | Warranty Term | 1. 12 months from the Test run date or 14 months from B/L date which one comes earlier, once any spare parts broken down during this period, the seller should send the broken-down parts with free charges. Steel structure is Five Years and electrical parts is One Year. |
Free Spare Parts as Backup
SI | Description | Quantity |
1 | Rope guide | 1 PCS |
2 | Brake block | 1 PCS |
3 | AC contactor | 2 PCS |
4 | Travel switch | 1 PCS |
5 | Fire limit switch | 1 PCS |
6 | Warning alarm | 1 PCS |
7 | Buffer | 2 PCS |
8 | Pendent handle | 1 PCS |

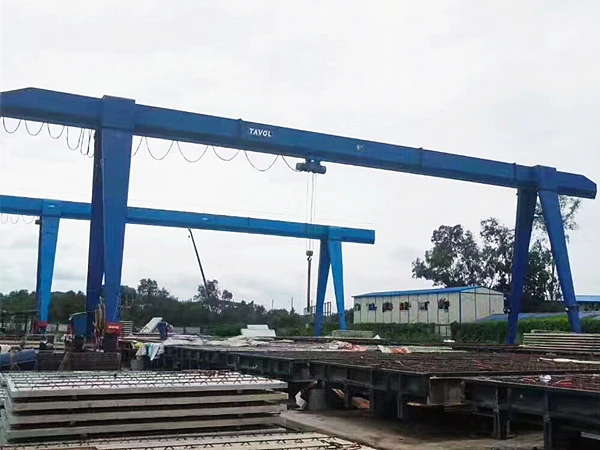

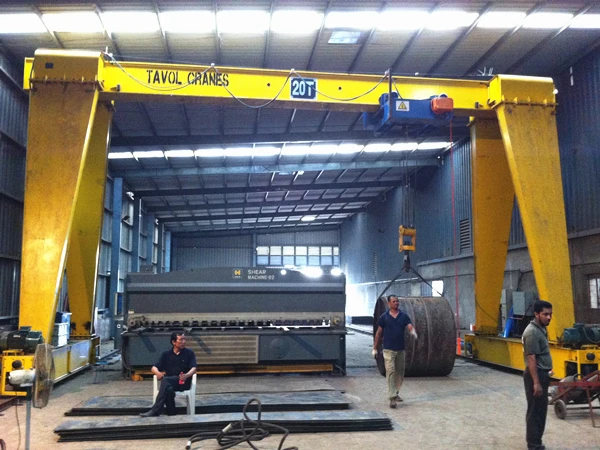

Overseas Project of Single Girder Gantry Crane
Bangladesh | Qatar |
Philippines | Myanmar |
RFQ:
If you want to get a price of our single girder gantry crane, please help to confirm the
details as below:
1) What kind of goods will this overhead crane deal with?
2) Lift capacity? 5ton, 10ton or 15ton?
3) Span? 10 meters, 19 meters or 25 meters?
4) Lift height? 6 meters, 8 meters or 12 meters?
5) Travel length?
6) Power supply in your local? Is 380V/50Hz/3P?
