Warranty: | 12 months | maximum. Lifting height: | 32m, customized |
Origin: | Henan, China | Health status: | new |
Supply capacity: | 10000 best yacht/ship lifting cranes customized in China every year | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
feature: | Gantry crane | Rated load capacity: | 5-500 tons |
Core component warranty: | 1 year | Applicable industries: | Manufacturing plants, construction works, energy and mining, other, advertising agencies, ship lifts, offshore industry |
Energy source: | Three-phase 380V 50Hz | Video outbound inspection: | if |
Showroom location: | Egypt, Canada, Turkey, USA, France, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh China, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia | application: | port |
Mechanical test report: | if | color: | Elective |
Marketing Type: | Hot Products of 2023 | span: | 18m-35m |
port: | Any port in China, depends on customer inquiry | Job Responsibilities: | A7~A8 |
Main electrical part: | Schneider | control method: | remote control |
Lifting mechanism: | Wire Rope Electric Hoist | Weight (kg): | 30000 kg |
type: | box girder | After-sales service provided: | Engineers available to repair machinery overseas |
Rated lifting moment: | Carrying capacity | Key words: | Rubber wheel gantry crane |
product name: | boat lifting | brand: | Wei Hua |
payment terms: | L/C, Western Union, T/T, MoneyGram | Packaging Details: | Electric hoists and small parts are packed in wooden boxes, main girders and end vehicles are packed in polyethylene cloth, and shipped in containers or bulk carriers. |
Package preview: | | | |

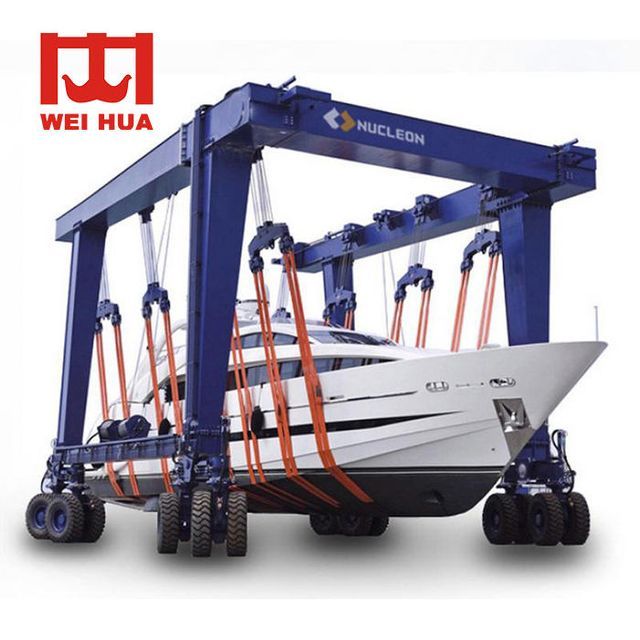

China Customized Best Yacht/Ship Lifting Crane

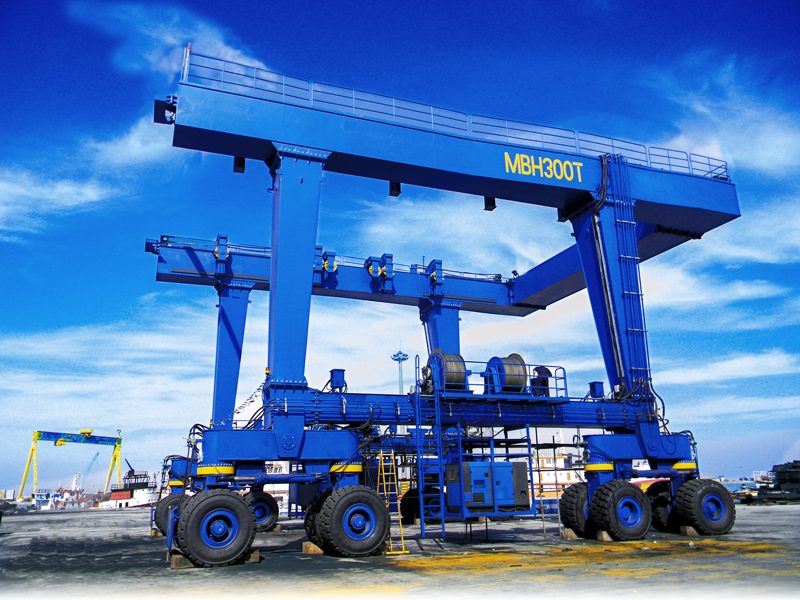

Weihua Project Phase I: Capacity 300TYacht tire mobile hoist, model: MGK
Product Description
Yacht handling cranes, also known as ship handling cranes. Widely used in water sports competitions, yacht clubs, sailing, shipping, learning and other fields. Ships or yachts of different tonnages can be transported out of the shore wharf for shore maintenance, repair or new ship launch.

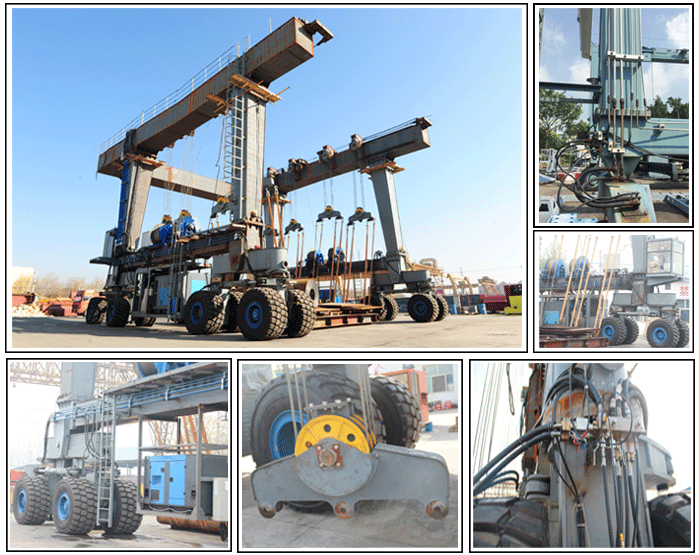

Ship and yacht handling cranesinclude the following items: Main structure, walking wheel set, lifting mechanism, steering mechanism, hydraulic transmission system, electrical control system. The main structure is N-type, which can transfer ships/yachts whose height exceeds the height of the crane.
According to the different requirements of customers, the ship loading and unloading crane can handle ships or yachts of different tonnages(10T-800T)Viewed from the shore, it can be used for shore repairs or a new boat can be put into the water. This yacht handling crane has soft yet strong straps to lift boats and yachts so that it never mars the surface. The crane can also quickly put the boats in sequence with little gap between each two boats.
Contact us for more information!

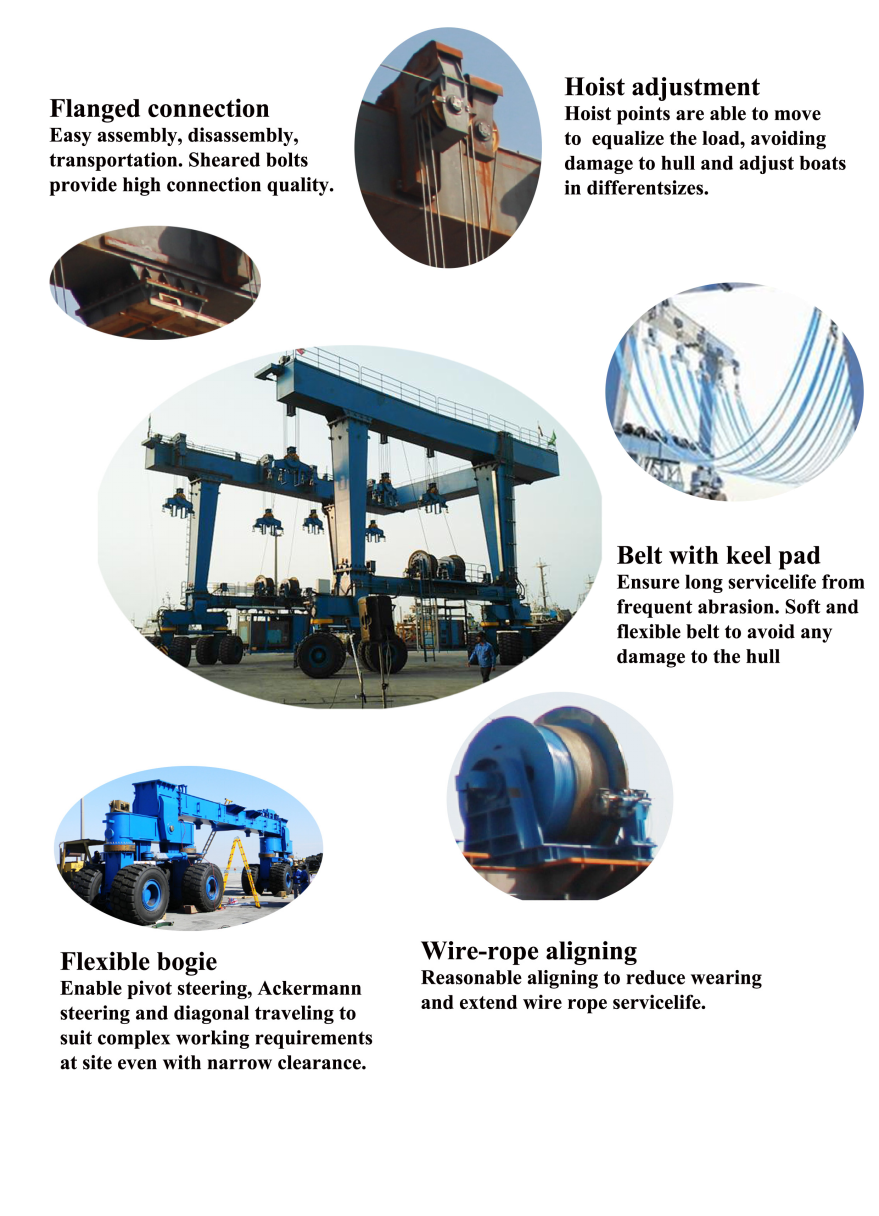

Yacht lift features:
1. For crane travel, the crane can move in a diagonal direction, and the ship and yacht loading and unloading crane can also turn 90 degrees, and place the ship in any designated position as required.
2. The crane can adjust the width of the main girder according to the ship type to adapt to ships with different sides.
3. Low cost, high performance, convenient operation and maintenance, etc.
4. The daily operation cost is low, and the soft and firm belt is used to ensure no damage to the hull during hoisting.
5. The boat crane can quickly arrange the boats; it can also adjust the gap between each boat according to different situations.

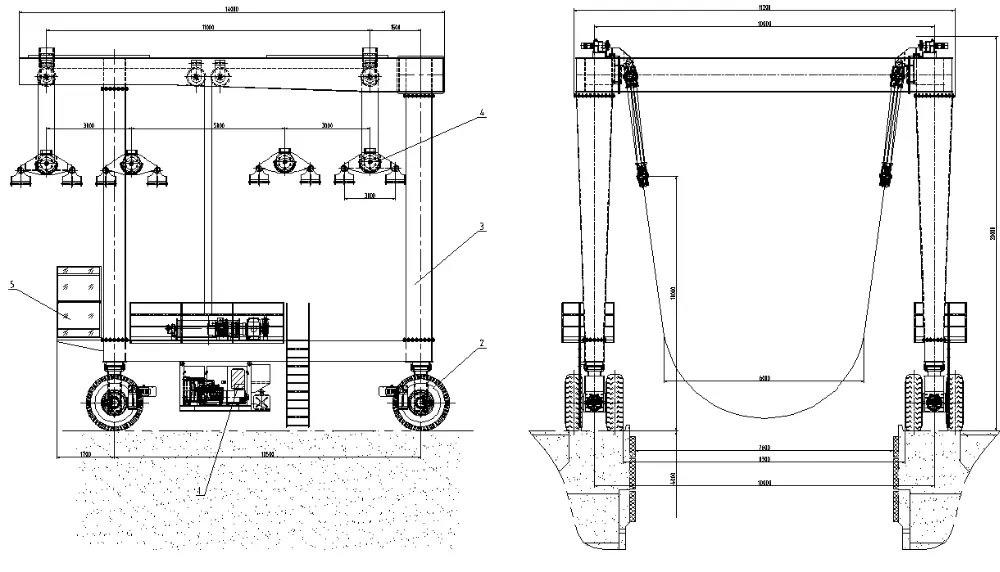

sketch
Technical Parameters
For more parameters and quotations, please contact me!
Rated Capacity | | | 100 | 150 | 200 | 300 |
(kg/cm2) Ground specific pressure | | | 11.5 | 11 | 11.5 | 6.5 |
(m/min) level ability | | | 2% | 4% | 4% | 4% |
(m/min) Lifting speed | fully loaded | 0~2 | | 0~1 | 0~2 | 0~1 |
| no load | 0~5 | | 0~4 | 0~3 | 0~3 |
(m/min) running speed | fully loaded | 0~20 | | 0~20 | 0~20 | 0~20 |
| no load | 0~35 | | 0~35 | 0~35 | 0~35 |
Working temperature | | | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |

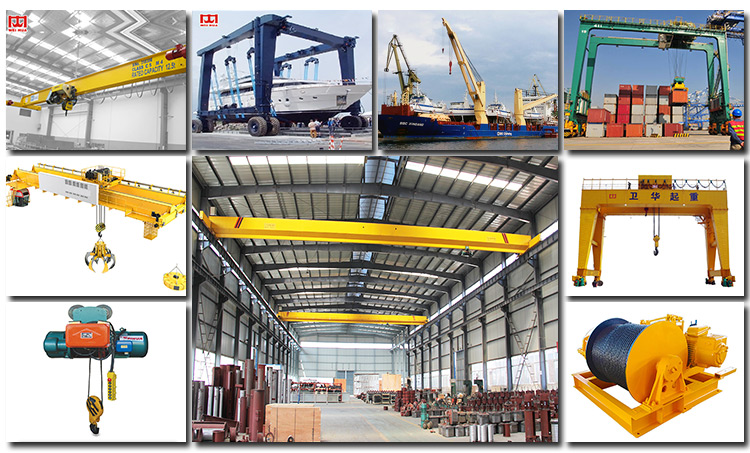

main products
The products meet the requirements of general bridge cranes, bridge cranes, EOT cranes, general gantry cranes, rubber tires and rail container gantry in factories, workshops, ports, mines, garbage disposal, cargo dispersion, petrochemical, aerospace, military and other industries Crane Four-link gantry crane, grab crane, jib crane, marine deck crane, electric hoist, electric winch, mobile platform and other hydraulic crane technical requirements.
