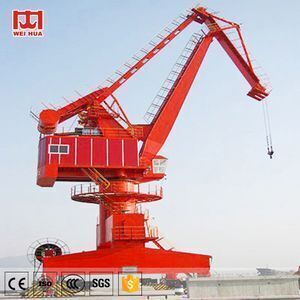

Jetty Offshore 40 ton Port Portal Marine Dock Crane

Supplier: Henan Weihua Heavy Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Jack Zhou
Price: $1325.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,Viet Nam,Philippines,Peru,Saudi Arabia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Kyrgyzstan,Nigeria,Uzbekistan;	Rated Lifting Moment:	different;
Place of Origin:	Henan China;	Application:	port, outdoor;
Machinery Test Report:	Provided;	Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Retail,Printing Shops,Construction works ,Energy & Mining,Advertising Company,shipyard;
Warranty:	1 YEAR;	Span:	different;
Product name:	Jetty Offshore 40 ton Port Portal Marine Dock Crane;	Rail Recommended:	P50;
Supply Ability:	20000.0 Set/Sets per Year Jetty Offshore 40 ton Port Portal Marine Dock Crane;	Core Components:	Motor;
Brand Name:	WEIHUA;	Ex Factory Inspection:	yes;
Max. Lifting Load:	45Tons;	Condition:	New;
Video outgoing-inspection:	Provided;	Type:	jib portal crane;
Name:	Cargo Ship Unloading Crane;	Payment Terms:	L/C,T/T,Western Union;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Rated Loading Capacity:	25ton;
Product Specification:	1030,1633;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Free spare parts;
Showroom Location:	Egypt,Canada,United Kingdom,Viet Nam,Philippines,Peru,Saudi Arabia,Pakistan,India,Mexico,Russia,Thailand,Morocco,Kenya,Argentina,Chile,Sri Lanka,Romania,Bangladesh,Kazakhstan,Kyrgyzstan,Nigeria,Uzbekistan,Malaysia,Australia;	Marketing Type:	New Product 2020;
Max. Lifting Height:	28m;	Warranty of core components:	1 YEAR;
Package Preview:	;	Packaging Detail:	Jetty Offshore 40 ton Port Portal Marine Dock Crane : international standard packaging or as your requirement;
Certification:	CE,3C,CNAS;	Power Source:	380V,50Hz;
Main Electrical Parts:	Schneider;	Feature:	Portal Crane;
Lifting Capacity:	Grab16 Hook25;	Port:	Shanghai, Qingdao, Tianjin and other ports;

Jetty Offshore 40 ton Port Portal Marine Dock Crane

Product Introduction

CE Certificated four link type shipyard portal crane has various applications, such as loading and unloading at port, materual handing at dockyard, ship building and repairing yard, metalluygy industry. The four link type shipyard portal crane is composed of frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader, hook), electrical equipment and other aiding devices for safety

Four link type shipyard portal crane design and manufacturing standards: Specification for the harbor portal crane (GB/T17495-1998), Safety rules for lifting appliances (GB/T14406-1993); ISO standards, FEMstandards and JIS standards

Portal crane devides into two types :

One is single-link portal crane, and the other is four-link portal crane.

Four-link portal crane

Four-link portal crane has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, the mainstructures are composedof steel frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism,spreader device (grab, container spreader, and hook and electric dist), electrical equipment
and other accessory equipments for safety.

Single-link portal crane

Single-link portal crane is a kind of hoisting machine especially used inport,harbour, dock, shipyard with small investment for loading and unloading front apron container, sundries and bulk cargo.It mainly includes the following units: crane strong steel frame, lifting mechanism,luffing mechanism, slewing mechanism, traveling mechanism .

Contact us for more information

Product Details

Technical parameters and structure chart

Please contact me for customized parameters

Four-bar linkage Type
Load Capacity	16t	25t	40t
Working Range	30m, 33m, 35m, 37m	28m, 30m, 35m, 36m	30m, 35m, 39m, 40m, 43m
Wheel Dis.	10.5m, 12m, 16m	10.5m, 12m, 16m	10.5m, 12m, 16m
Lifting Speed	60m/min	55m/min	50m/min
Luffing speed	50m/min	50m/min	45m/min
Rotating Speed	1.0~1.5r/min	1.0~1.3r/min	1.0~1.2r/min
Traveling Speed	26m/min	26m/min	26m/min

Single Mast Type
Load Capacity	40t	45t
Working Range	11~30m, 12~35m	12~35m, 13~28m
Wheel Dis.	10.5m, 16m	10.5m, 16m
Lifting Speed	25m/min	25m/min
Luffing speed	25m/min	25m/min
Rotating Speed	0.8~1.0r/min	0.8~1.0r/min
Traveling Speed	26m/min	26m/min

Single-link portal crane

Features

1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request.

Application

Four link type shipyard portal crane is a kind of hoisting machine especially used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo, also used in materual handing dockyard, ship building and repairing yard, metalluygy industry.

Safety Device

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows :

♦ Overload Limit Switch
♦ Rubber Buffers
♦ Electric Protective Devices
♦ Emergency Stop System
♦ Voltage Lower Protection Function
♦ Current Overload Protection System
♦ Rail Anchoring
♦ Lifting Height Limit Device

Related products and pictures

What's your phone number and email address?We'll give you our best offer!

Main Products

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

MORE PRODUCT SERIES

Quality Control

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
