Grab Ship Unloader Portal Crane for the Quay or Port

  • Supplier: Henan Yuntian Crane Co., Ltd.
  • Region: Henan, China
  • Contact: Mr Chris Cai
  • Price: $12000.00 / 1 - 1 sets
    $11800.00 / 2 - 2 sets
    $11600.00 / >=3 sets
  • Min. Order: 1 set
Product details
Rated Lifting Moment:50~800KN.m;Max. front outreach (m):20~55;
Weight (KG):75600 kg;Warranty:12 Months,1 Year;
Supply Ability:1000 Sets per Year;Showroom Location:Canada,Turkey,United Kingdom,France,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Morocco,Kenya,Chile,UAE,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kyrgyzstan,Malaysia,Australia;
Machinery Test Report:Provided;Max. Lifting Height:25m;
Max. Lifting Load:600-2500t;Port:Tianjin/Shanghai/Qingdao Port,China;
slewing:0.03~0.4r/min;Brand Name:YUNTian;
Place of Origin:Henan, China;Certificates:GOST;
Condition:New;Material specific gravity (t/h):0.9~3.0;
Span:4-30m;Feature:Portal Crane;
Application:ship loading/unloading;Video outgoing-inspection:Provided;
Product Name:Grab Ship Unloader Used on the quay port;Rated Loading Capacity:16,32,55t,2-20t;
Warranty of core components:1 Year;luffing:1.5~20;
Packaging Detail:Packing of Grab Ship Unloader Portal Crane Used: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport. Delivery of Grab bucket ship unloader: 1. If the size are suitable for container ship, usually by container; 2.Big size, usually by bulk ship or by container after truncation; 3.Transport way is based on reducing cost for you and keep the crane good.;Aux hoisting:1.6~25m/min;
Marketing Type:Ordinary Product;Core Components:Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump,Steel frame;
Payment Terms:L/C,Western Union,T/T;Applicable Industries:Building Material Shops,Retail,Other,Port,Shipyard,Harour;

Grab Ship Unloader Portal Crane Used on the Quay/Port

Product Description

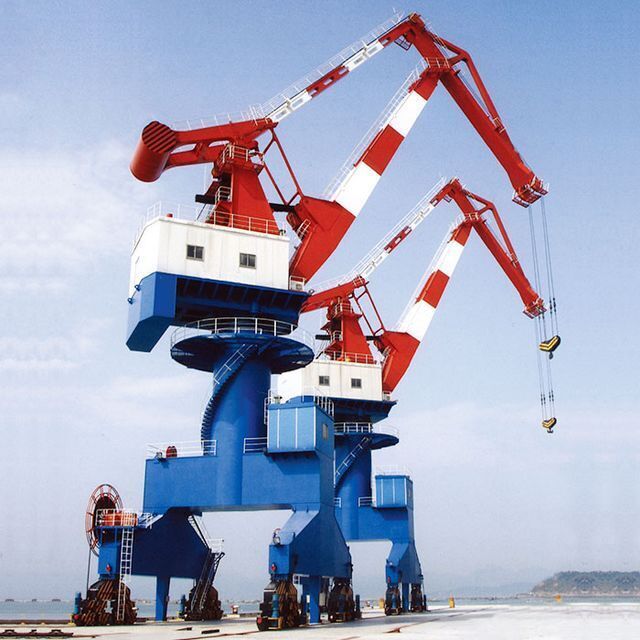

Four-link type portal crane has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, The main structures are composed of steel frame, lifting mechanism, luffing mechanism, slewing mechanism, crane travel mechanism spreader device (grab,container spreader, and hook and electrmangnetdisk), electrical equipment and other necessary equipments for safety. Steel structures include jib and A-frame, slewing platform and gantry frame.

Referenced standards: GB17495-1998 Harbor portal crane technical specifications, GB6067-85 liftequipments safety specification, GB3811-2008 crane design standards, ISO standards, FEM standards and JIS standards.

This kind portal crane is a mobile, full-revolving, and four-bar combined crane. Its arms and counter-weight are balanced. There are 2 types of portal frame: cylinder and four outriggers. This portal carne is for lifting containers with hooks or grabs.

Advantages: long arms, suitable for bigger ship, beautiful exterior, safe and reliable, durable advanced performance, convenient for maintenance. It's the best choice for comprehensive multi-typed cargo ports.

 Contact us for more information



Drawings

Please click here for details communication



Technical parameters

  Please contact me for customized parameters

Type

Cap.
/t

Lifting/m

Lift height/m

Span*
Base/m

Speed/

Max
Wheel load/kW

Capability
/t

Ship
/DWT





Max

Min

Up

Down



Hoist m/min

Luffing
m/min

Slewing
r/min

Travel
m/min







BP209

2

9

4

6

6

4.5×4.5

18

15

1.3

15

40

22

200

BP315

3.2

15

5.6

12

8

6×6

30

20

1.5

15

80

42

500-2500

BP322

3.2

22

7

14

8

6×6

40

20

1.5

15

90

58

1000-3000

BP515

5

15

6

12

9

6×6

40

24

1.5

15

120

120

500-1500

BP518

5

18

6

15

9

6×6

50

24

1.7

15

<200

125

1000-3000

BP520

5

20

7.5

16

18

6×6

58

20

1.6

15



138

1000-3000

BP522

5

22

8

15

12

10.5×10.5

50

20

1.4

15

142

125

1000-3000

BP525

5

25

9

20

10

6×7

46

22

1.4

15

<200

115

5000

BP1020

Hook10

20

7

15

10

10.5×10.5

36

20

1.5

15

115

103

3000



Grab5

























BP2020

20

20

7

16

10

10.5×10.5

40

25

1.6

27

165

145

5000

BP-1025

Hook10

25

8

20

12

10.5×10.5

50

48

1.6

27

185

132.8

5000



Grab5

























BP-1625

Hook16

25

8

20

12

10.5×10.5

56

48

1.6

27

185

305

10000



Grab10

























BP-1627

Hook16

27

10

22

15

10.5×10.5

56

50

1.6

27



305

10000

Features

1) Reasonable structure

2) Favorable performance

3) Smooth starting and stopping

4) Safe and reliable traveling

5) Low noise, commodious cabin and good view

6) Convenient maintenance, excellent exchangeability for parts and components

7) Saves electricity specifications
