Single boom gantry crane workshop for sale

Supplier: Henan Crane Co., Ltd.
Region: Henan, China
Contact: Mr Basheer Zhang
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Core Components Warranty:	1 year
Health status:	new	Original Equipment Manufacturer:	usable
Warranty:	1 year	Packaging Details:	Packaging standard of hook single-arm coal gantry crane: 1. Electrical components are packed in high-quality plywood boxes to reduce transportation deformation. 2. The main beam, end beam, trolley/winch are all packed with plastic woven cloth. It reduces wear and tear during transportation. 3. Usually by container if the size is suitable for container ship. 4. Large in size, generally in bulk ships or cut-off containers. 5. The shipping method is based on reducing costs and maintaining safety.
Rated load capacity:	Standard, 5-20 tons	Blood vessel:	Various seaport ships
payment terms:	L/C,Western Union,T/T,MoneyGram	product name:	Single boom gantry crane workshop for sale
place of origin; place of origin:	Henan, China	Core components:	Engines, Bearings, Gearboxes, Motors, Gears, Pumps
Showroom location:	Turkey, United Kingdom, Indonesia, Pakistan, Russia, Thailand, Kenya, Bangladesh, South Africa, Malaysia, Australia	Luffing speed of single arm gantry crane:	15m/min ~50m/min
Supply capacity:	5000 sets per year	Maximum wheel load:	40~200KN
Marketing Type:	New Products 2021	Arm length:	8m~70m
span:	according to your request	Applicable industries:	Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Retail, Energy & Mining, Others, Seaports, Shipyards, Ports, etc.
Single-arm gantry rotation speed:	1.3m/min~1.6m/min	Single jib crane span and base:	10.5m*10.5m
Main electrical components:	Siemens, Schneider and Chint	feature:	Gantry crane
application:	Seaports, shipyards, ports, etc.	Rated lifting moment:	Crane standard capacity
Gantry crane lifting speed:	1.8m/min ~56m/min	brand:	Yufei
Video external inspection:	if	Weight (kg):	5600 kg
port:	Tianjin, Qingdao Port	maximum. Lifting height:	25M, 15M

Single boom gantry crane workshop for sale

Single boom material handling gantry cranes are mainly used for loading and unloading bulk materials in small and medium-sized ports. Light weight and small wheel pressure are conducive to reducing investment and creating considerable income. Adopt rack luffing or wire rope luffing (sled) to realize luffing with load, horizontal displacement, rotation or lifting at any angle. The amplitude coordination makes the crane work smoothly and efficiently. Can be equipped with hooks and grabs.

feature

1. Speed up the turnover and loading and unloading operations.
2. High work efficiency, compact frame,
3. Smooth action, comfortable operation, safe and reliable.
4, easy maintenance, beautiful appearance, etc.
5. Crane drive: IP54 or IP44, Class F insulation
6. Especially suitable for port lifting.
7. Design according to your requirements.

To learn more, contact me!

Product Details

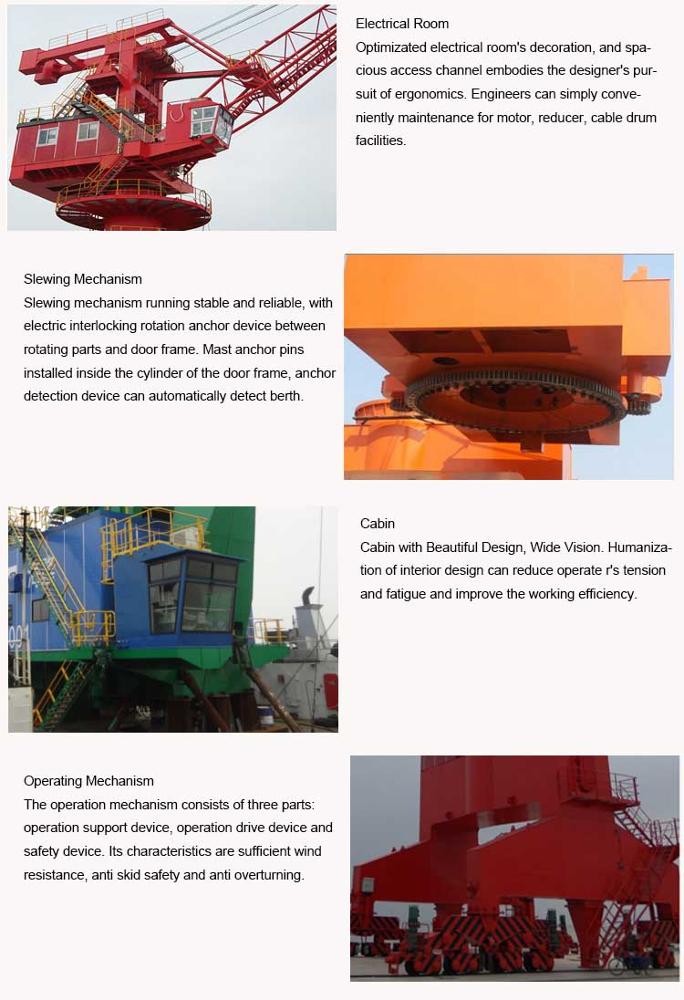

Single-arm material handling gantry cranes generally include the following units: steel frame, hoisting mechanism, slewing mechanism, crane traveling mechanism, spreader device (grab, container spreader, magnet, hook), electrical equipment and other necessary safety equipment. The steel structure includes jib and A-frame, slewing platform and gantry.

Reference standards: GB17495-1998 Technical Specification for 10-ton Port Material Handling Gantry Crane, GB6067-85 Safety Specification for Lifting Equipment, GB3811-2008 Crane Design Standard, ISO Standard, FEM Standard and JIS Standard.

Contact me for more details!

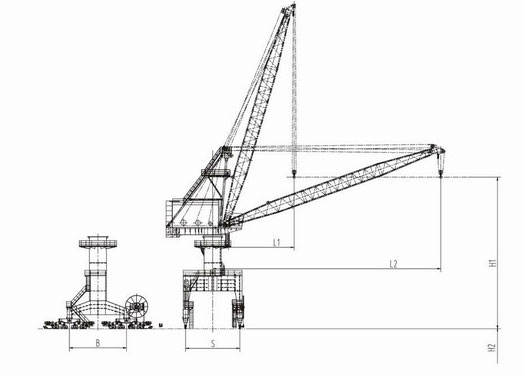

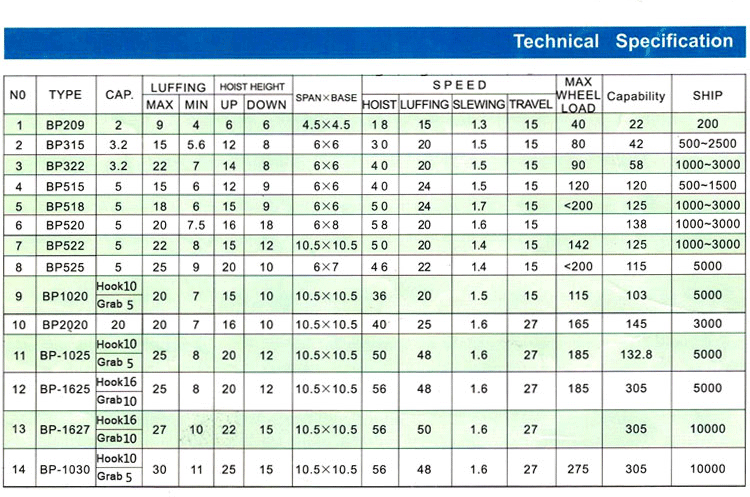

Technical parameters and structure diagram

Send us your special needs!

Single Link Gantry Crane

safety equipment

In order to ensure the normal operation of the crane and avoid personal injury and mechanical damage, the safety devices we provide are not only electrical protection devices or alarm bells, but also the following other equipment:

♦ Overload limit switch
♦ Rubber bumper
♦ Electrical protection device
♦ Emergency stop system
♦ Low voltage protection function
♦ Current overload protection system
♦ Rail anchorage
♦ Lifting height limiter

application

The 10-ton single-boom material handling gantry crane is mainly used for loading and unloading bulk materials in small and medium-sized ports. Light weight and small wheel pressure are conducive to reducing investment and creating considerable income. Adopt rack luffing or wire rope luffing (sled) to realize luffing with load, horizontal displacement, rotation or lifting at any angle. The amplitude coordination makes the crane work smoothly and efficiently. Can be equipped with hooks and grabs.

Contact me for the best quote!

main products

YufeiCranes have been widely used in machinery, metallurgy, electric power, chemical industry, military industry, railway, water conservancy, shipbuilding, ports and large warehouses and other industries. The crane series includes gantry cranes, bridge cranes, shipbuilding cranes, container cranes, port cranes, electric single-girder cranes, electric double-girder cranes and electric hoists, etc.
