Fixed or Movable Port JIB Crane Deck Crane with Low Price

Supplier: Henan Crane Co., Ltd.
Region: Henan, China
Contact: Mr Basheer Zhang
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Four link portal jib crane span and base:	16m*10.5m;	Max. Lifting Height:	Above rail 40m+Under rail 36m;
Arm length:	8m~70m;	Vessel:	All kinds seaport vessel;
Feature:	Portal Crane;	Four link portal jib crane slewing speed:	0.26m/min~26m/min;
Supply Ability:	5000 Set/Sets per Year;	Single jib portal crane Luffing speed:	15m/min ~60m/min;
Rated Loading Capacity:	standard;	Main electrical parts:	Siemens, Schneider and CHINT;
Packaging Detail:	Port Mobile Dock Crane Packaging Standard: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.;	Application:	Seaport, shipyard, port etc.;
OEM:	Available;	Warranty:	1 year;
Portal crane Lifting speed:	1.8m/min ~56m/min;	Rated Lifting Moment:	Crane standard capacity;
Certification:	CE, ISO, GOST, CCC;	Product name:	Fixed or Movable Port JIB Crane Deck Crane with Low Price;
Brand Name:	Yufei;	Max wheel load:	180~300KN;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Energy & Mining;	Place of Origin:	Henan China;
Condition:	New;	Span:	As your demand;
Payment Terms:	L/C,T/T,Western Union;	After-sales Service Provided:	Field maintenance and repair service;
Port:	Tianjin, Qingdao Port;

Fixed or Movable Port JIB Crane Deck Crane with Low Price

CE Certificated four link type shipyard Wharf Portal Crane has various applications, such as loading and unloading at port, materual handing at dockyard, ship building and repairing yard, metalluygy industry. The four link type shipyard Wharf Portal Crane is composed of frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader, hook), electrical equipment and other aiding devices for safety

Four link type shipyard Wharf Portal Crane design and manufacturing standards: Specification for the harbor Wharf Portal Crane (GB/T17495-1998), Safety rules for lifting appliances (GB/T14406-1993); ISO standards, FEMstandards and JIS standards

Features

1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request.

Want to know more, contact me!

Portal crane devides into two types :

One is single-link Wharf Portal Crane, and the other is four-link Wharf Portal Crane.

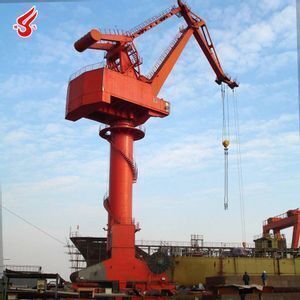

Four-link portal crane

Four-link Wharf Portal Crane has been extensively applied to loading and unloading at port and materiel handing at dockyard and metallurgy industry, the mainstructures are composedof steel frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism,spreader device (grab, container spreader, and hook and electric dist), electrical equipment
and other accessory equipments for safety.

Single-link portal crane

Single-link Wharf Portal Crane is a kind of hoisting machine especially used inport,harbour, dock, shipyard with small investment for loading and unloading front apron container, sundries and bulk cargo.It mainly includes the following units: crane strong steel frame, lifting mechanism,luffing mechanism, slewing mechanism, traveling mechanism .

Product Details

Want to know more details to contact me!

Technical parameters and structure chart

Send your special needs to us!

Four-bar linkage Type
Load Capacity	16t	25t	40t
Working Range	30m, 33m, 35m, 37m	28m, 30m, 35m, 36m	30m, 35m, 39m, 40m, 43m
Wheel Dis.	10.5m, 12m, 16m	10.5m, 12m, 16m	10.5m, 12m, 16m
Lifting Speed	60m/min	55m/min	50m/min
Luffing speed	50m/min	50m/min	45m/min
Rotating Speed	1.0~1.5r/min	1.0~1.3r/min	1.0~1.2r/min
Traveling Speed	26m/min	26m/min	26m/min

Single Mast Type
Load Capacity	40t	45t
Working Range	11~30m, 12~35m	12~35m, 13~28m
Wheel Dis.	10.5m, 16m	10.5m, 16m
Lifting Speed	25m/min	25m/min
Luffing speed	25m/min	25m/min
Rotating Speed	0.8~1.0r/min	0.8~1.0r/min
Traveling Speed	26m/min	26m/min

Single-link portal crane

Application

Four link type shipyard Wharf Portal Crane is a kind of hoisting machine especially used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo, also used in materual handing dockyard, ship building and repairing yard, metalluygy industry.

Safety Device

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows :

♦ Overload Limit Switch
♦ Rubber Buffers
♦ Electric Protective Devices
♦ Emergency Stop System
♦ Voltage Lower Protection Function
♦ Current Overload Protection System
♦ Rail Anchoring
♦ Lifting Height Limit Device

Application

Contact me for the best offer!

Main Products

YUFEI cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on. The crane series includes Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
