Manufacturer of RMG Mobile Rail Mounted Lift Container Crane

Supplier: Henan Crane Co., Ltd.
Region: Henan, China
Contact: Mr Basheer Zhang
Price: $45000.00 / 1 - 1 sets
$38000.00 / 2 - 2 sets
$22000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

application:	port or container area	type:	RMG Container Yard Port Crane
Packaging details:	RMG container yard port rail crane packaging standards: 1. Electrical components are packed in high-quality plywood boxes to reduce transportation deformation. 2. The main beam, end beam, trolley/winch are packed with plastic woven cloth. Can reduce wear and tear during transportation. 3. Usually via container if the size fits the container ship. 4. Large in size, usually transported by bulk carrier or truncated container. 5. The transportation method is based on reducing costs and ensuring safety.	Marketing type:	Hot Products of 2023
feature:	Gantry crane	Frequency converter:	include
engine:	NGP/other	Core components:	PLC, engine, bearings, gearbox, motor, gear, steel frame, hoisting mechanism, minimum slewing mechanism, crane traveling mechanism
Rated load capacity:	30-50 tons according to your requirements	port:	Tianjin, Qingdao
payment terms:	L/C, Western Union, T/T, MoneyGram	working class:	A6
Main electrical components:	Siemens or Schneider	Applicable industries:	Building materials store, machine repair shop, retail, construction engineering, other, port or container area
product name:	ISO FEM standard mobile rail-mounted lifting container crane for sale	temperature:	-40~40℃
Rated lifting moment:	\	Supply capacity:	1000 sets per year
span:	35m	Protect:	IP55
Core component warranty:	1 year	Mechanical test report:	if
control:	Pendant control, remote control, cab control	maximum. Lifting height:	Others,18m
Package preview:		Place of origin:	Henan, China
Showroom location:	Canada, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, Romania, Bangladesh, South Africa, Kazakhstan, Uzbekistan, Tajikistan, Malaysia, Australia	Weight (kg):	75600kg
brand:	Yu Fei	Health status:	new
Video outbound inspection:	if	Warranty:	12 months, 1 year

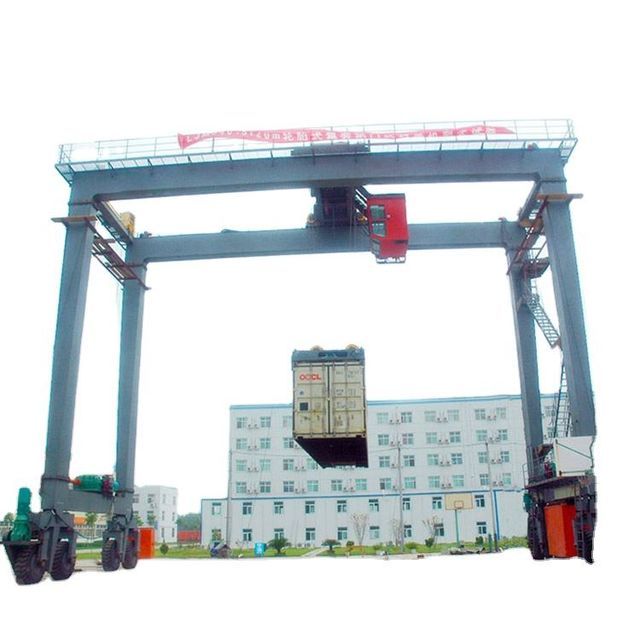

RMG mobile rail-mounted lifting container crane manufacturer

Product Description

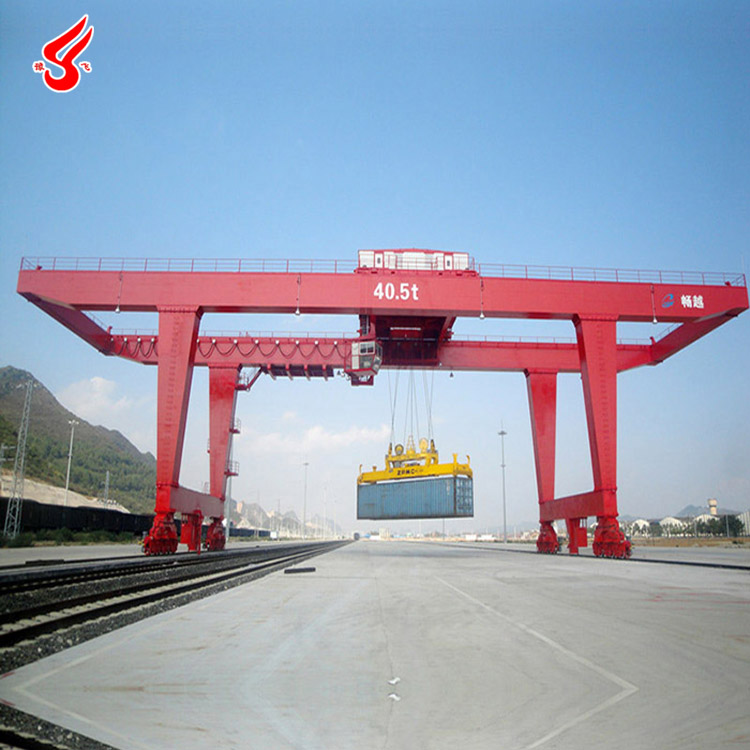

1.1Rail-mounted Small Rail Container Large Span 35 Ton Gantry Crane The rail-mounted crane for sale is a rail-mounted crane used for unloading, stacking and loading 20-foot, 40-foot, and 45-foot ISO standard containers. Its power supply is provided by a cable drum. The crane consists of three mechanisms: lifting, trolley operation and mast operation. The trolley runs along a track mounted on the gantry beam and can run between the legs. The crane can move straight along the track.

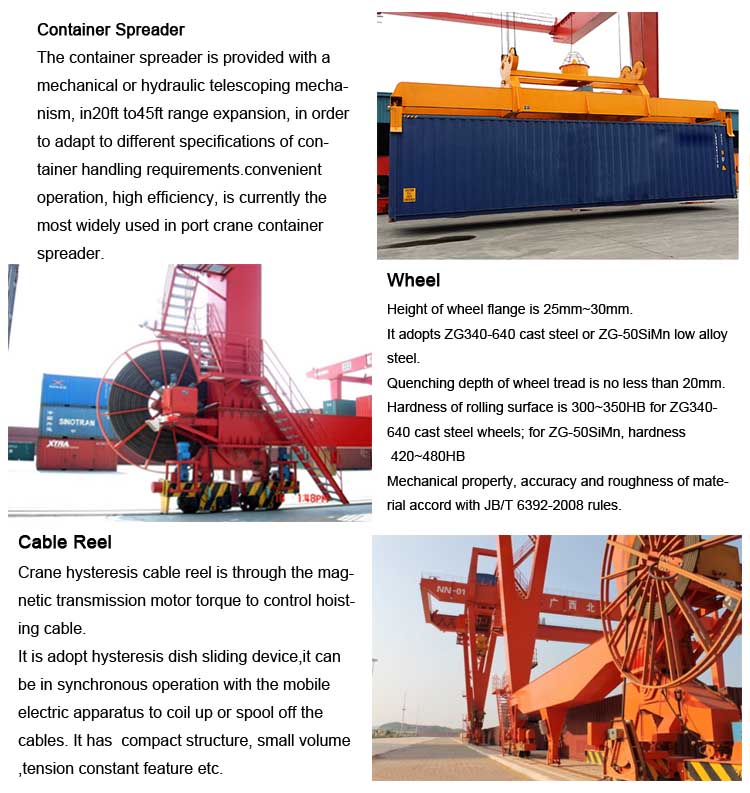

1.2The crane is equipped with a suitable flexible hydraulic container spreader, connected to the trolley via an upper frame and a wire rope system.
The hydraulic power comes from the spreader itself, we only provide power and communication
1.3The hoisting mechanism and trolley travel can work simultaneously or separately; the same applies to gantry travel and trolley travel.
1.4The electrical drive of the main working mechanism adopts a fully digital AC frequency converter, a PLC speed regulator and a constant power adjustment device for the lifting mechanism.
1.5The crane has a monitoring and management system. It has data collection, analysis, management and fault diagnosis functions, and can transmit main parameters and operating conditions to the electrical room, cabin and control center for monitoring and control.

If you want to know more please contact me!

Product section display

If you want to know more details, please contact me!

1. Modular designsIan

According to the general rules of products and components, the lifting mechanism module, trolley traction mechanism module, trolley assembly module,Steel structure modules, functional modules, general modules, etc.

Standard module production ensures the stability of product quality and shortens the delivery cycle.

2. Advanced manufacturing technology

The steel is pre-treated by shot blasting, and the surface quality reaches Sa 2.5 level.

The crane wheel and axle undergo high-frequency quenching and tempering treatment to eliminate internal stress and ensure processing accuracy. A welding robot is used, and the internal seam welds of the main beam are welded using advanced MAG welding. Main beam welding uses radiographic flaw detection and ultrasonic flaw detection to ensure welding quality.

3. High reliability

The motors and reducers are all imported from well-known domestic brands and have been certified by the industry to ensure quality. It has reliable quality.

The main electrical components are all from internationally renowned brands such as Schneider, Siemens, and ABB, and the protection level of the electric control box is less than IP54.

4. Safety parameters
1. Automatic correction control
2. Weight overload protection device
3.High quality polyurethane buffer
4. Phase loss protection
5.Lifting limit switch
6. Lateral travel limit switch

Send us your special needs!

Technical data

spreader cao acat			time	30.5	35	40.5	50
Job responsibilities				A6	A6	A6	A6
Span (meter)			S	35	35	35	35
Base(m)			Second	16	16	16	16
Lifting height (meters)			H	15.4	15.4	18.2	18.2
speed	Hoisting	When fully loaded	m/min	12	12	18	18
	Hoisting	The only funny communicator		twenty four	twenty four	36	36
	Travese			60	60	70	70
	travel			45	45	45	45
total power			kilowatt	~200	~230	~255	~300
maximum. wheel working load			thousand	260	260	280	300
crane track				P50	P50	P50	QU80
energy source			Three-phase AC 50Hz 380V

Contact me for the best quote!

main products

YufeiCranes have been widely used in machinery, metallurgy, electric power, chemical industry, military industry, railways, water conservancy, shipbuilding, ports, large warehouses and other industries. The crane series includes gantry cranes, bridge cranes, shipbuilding cranes, container cranes, port cranes, electric single-girder cranes, electric double-girder cranes, electric hoists, etc.
