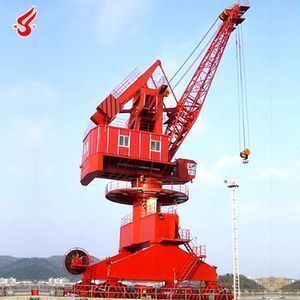

Portal Container 10 Ton Jib Crane

Supplier: Henan Crane Co., Ltd.
Region: Henan, China
Contact: Mr Basheer Zhang
Price: $800000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rated Loading Capacity:	40~45t;	Applicable Industries:	Energy & Mining;
Packaging Detail:	Portal Container 10 Ton Jib Crane: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.;	Main electrical parts:	Siemens, Schneider and CHINT;
Feature:	Portal Crane;	Vessel:	All kinds seaport vessel;
Span:	Different;	Rated Lifting Moment:	Crane standard capacity;
Single jib portal crane slewing speed:	1.3m/min~1.6m/min;	OEM:	Available;
Product name:	Portal Container 10 Ton Jib Crane;	Warranty:	1 year;
Single jib portal crane Luffing speed:	15m/min ~48m/min;	Single jib Portal crane span and base:	10.5m*10.5m;
Port:	Tianjin, Qingdao;	Payment Terms:	L/C,T/T,Western Union;
After-sales Service Provided:	Field maintenance and repair service;	Supply Ability:	37000 Set/Sets per Year;
Max. Lifting Height:	Above rail 25m+Under rail18m;	Condition:	New;
Arm length:	4m~30m;	Max wheel load:	40~275KN;
Application:	Seaport, Vessel plant;	Certification:	CE ISO SGS FEM JIS;
Place of Origin:	Henan China;	Portal crane Lifting speed:	1.8m/min ~56m/min;
Brand Name:	Yufei;

Portal Container 10 Ton Jib Crane

Single jib portal crane is mainly used in small and medium-sized port to load and unload bulk material. Light weight and small wheel pressure benefit to reduce investment and create considerable gains. It adopts rack amplitude or wire-rope amplitude (block and tackle) to accomplish variable amplitudes with load, horizontal displacement, and rotating or lifting in any degree. Cooperation of amplitudes makes the crane work smoothly and efficiently. Hooks and grabs can be equipped with it.

Features

1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
7. Designed according to your request.

Want to know more, contact me!

Product Details

Single jib portal crane generally includes the following units: steel frame, lift mechanism, slew mechanism, crane travel mechanism, spreader device (grab,container spreader, magnet, and hook), electrical equipment and other necessary equipments for safety. Steel structures include jib and A-frame, slewing platform and gantry frame.

Referenced standards: GB17495-1998 Harbor portal crane technical specifications, GB6067-85 liftequipments safety specification, GB3811-2008 crane design standards, ISO standards, FEM standards and JIS standards.

Want to know more details to contact me!

Technical parameters and structure chart

Send your special needs to us!

Single Mast Type
Load Capacity	40t	45t
Working Range	11~30m, 12~35m	12~35m, 13~28m
Wheel Dis.	10.5m, 16m	10.5m, 16m
Lifting Speed	25m/min	25m/min
Luffing speed	25m/min	25m/min
Rotating Speed	0.8~1.0r/min	0.8~1.0r/min
Traveling Speed	26m/min	26m/min

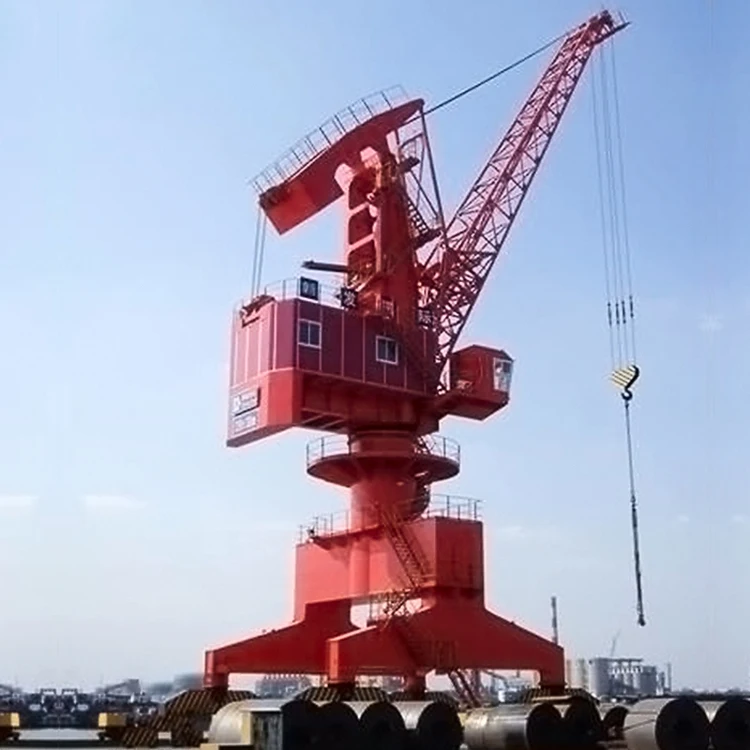

Single-link portal crane

Safety Device

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows :

♦ Overload Limit Switch
♦ Rubber Buffers
♦ Electric Protective Devices
♦ Emergency Stop System
♦ Voltage Lower Protection Function
♦ Current Overload Protection System
♦ Rail Anchoring
♦ Lifting Height Limit Device

Application

Contact me for the best offer!

Main Products

YUFEI cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on. The crane series includes Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
