loading and unloading at port Portal Crane Fixed Four-bar Portal Crane

  • Supplier: Henan Crane Co., Ltd.
  • Region: Henan, China
  • Contact: Mr Basheer Zhang
  • Price: $6000.00 /set
  • Min. Order: 1 set
Product details
Max. Lifting Height:Above rail 40m+Under rail 36m;Core Components:Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Brand Name:Yufei;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Rated Lifting Moment:Crane standard capacity;Packaging Detail:Workshop Portal Crane Fixed Four-bar Portal Crane Packaging Standard: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.;
Portal crane Lifting speed:1.8m/min ~56m/min;OEM:Available;
Video outgoing-inspection:Provided;Product name:Workshop Portal Crane Fixed Four-bar Portal Crane;
Rated Loading Capacity:5 ton,10 TON,16ton,25ton,32ton,45ton,50ton;Main electrical parts:Siemens, Schneider and CHINT;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining,Other,Seaport, shipyard, port etc.;Application:Seaport, shipyard, port etc.;
Max wheel load:180~300KN;Four link portal jib crane span and base:16m*10.5m;
Four link portal jib crane slewing speed:0.26m/min~26m/min;Feature:Portal Crane;
Arm length:8m~70m;Warranty:1 Year;
Marketing Type:New Product 2021;Condition:New;
Warranty of core components:1 Year;Place of Origin:Henan, China;
Supply Ability:5000 Sets per Year;Vessel:All kinds seaport vessel;
Span:As your demand;Machinery Test Report:Provided;
Showroom Location:Canada,Turkey,Viet Nam,Philippines,Brazil,Indonesia,Pakistan,Mexico,Russia,Morocco,Kenya,Chile,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kyrgyzstan,Malaysia,Australia;Single jib portal crane Luffing speed:15m/min ~60m/min;
Weight (KG):465310 kg;Port:Tianjin, Qingdao Port;
Portal Crane
YUFEI Portal Crane design and manufacturing standards: Specification for the harbor Wharf Portal Crane (GB/T17495-1998), Safety rules for lifting appliances (GB/T14406-1993); ISO standards, FEMstandards and JIS standards;
CE Certificated Portal Crane has various applications, such as loading and unloading at port, materual handing atdockyard, ship building and repairing yard, metalluygy industry. The four link type shipyard Wharf Portal Crane is composed offrame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader,hook), electrical equipment and other aiding devices for safety.

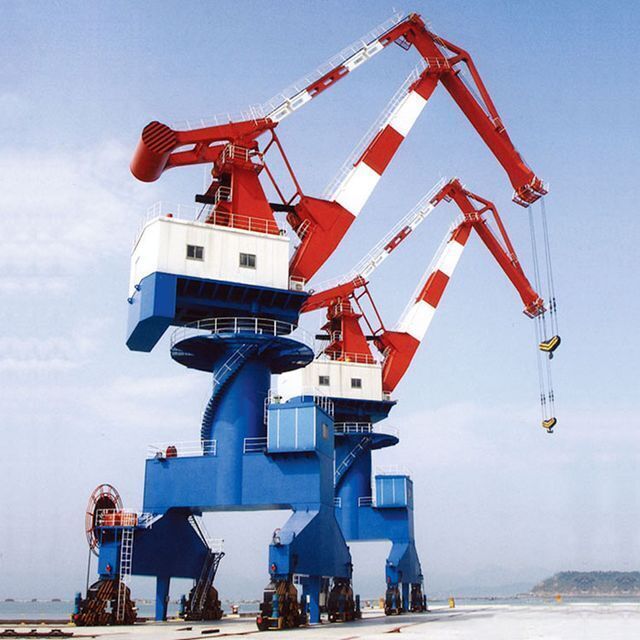

Four-link Type Portal Crane
Single jib Portal Crane
Runing Portal Crane
Float Portal Crane
Want to know more, contact me!
Features:
1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54 or IP44, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request.
Want to know more, contact me!
Single jib Type Portal Crane
Four-link Type Portal Crane
Type
Cap(t)
Max(m)
Min(m)
Up(m)
Down(m)
Span*Base
Max wheel load
MQ0525
5
25
8
12
9
10.5*10.5
180
MQ1033
10
33
9.5
20
12
10.5*10.5
185
MQ1633
16
33
9.5
28
15
10.5*10.5
250
MQ2533
25
33
9.5
28
15
10.5*10.5
260
MQ3240
32
40
12
35
13
12*10.5
320
MQ4570
45
70
25
45
13
12*12
320
MQ5035
50
35
11.5
40
0
12*10.5
280
Single-jib Type Portal Crane
Type
Cap(t)
Max(m)
Min(m)
Up(m)
Down(m)
Span*Base
Max wheel load
MQC0209
2
9
4
6
6
4.5*4.5
40
MQC0315
3.2
15
5.6
12
8
6*6
80
MQC0322
3.2
22
7
14
8
6*6
90
MQC0515
5
15
6
12
9
6*6
120
MQC0518
5
18
6
15
9
6*6
200
MQC0520
5
20
7.5
16
18
6*6
200
MQC3056
30
56
18
45
5
10*10.5
300
MQC4580
45
80
24
50
14
12*14
340
MQC5070
50
22
70
50
13
10.5*14
300
MQC6345
63
45
17
40
10
10*10.5
250
