Loading Unloading Offshore Pedestal Port Crane

Supplier: Henan Crane Co., Ltd.
Region: Henan, China
Contact: Mr Basheer Zhang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE ISO SGS FEM JIS;
Max. Lifting Height:	Above rail 40m+Under rail 36m;	Portal crane Lifting speed:	1.8m/min ~56m/min;
After-sales Service Provided:	Field maintenance and repair service;	Lifting spreader:	For 20feet 40feet 45feet container;
Brand Name:	Yufei;	Max wheel load:	180~300KN;
Arm length:	8m~70m;	Port:	Tianjin/Shanghai/Qingdao;
Four link portal jib crane span and base:	16m*10.5m;	Warranty:	1 Year;
Place of Origin:	Henan China;	Condition:	New;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Construction works ;	Span:	Arm legth as your demand;
Application:	Seaport, Vessel plant;	Item:	Four link type portal crane;
Four link portal jib crane slewing speed:	0.26m/min~26m/min;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Rated Loading Capacity:	Crane standard capacity;	Feature:	Portal Crane;
Supply Ability:	1000 Set/Sets per Year;	Rated Lifting Moment:	Crane standard capacity;
Main electrical parts:	Siemens, Schneider and CHINT;	Packaging Detail:	1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying; 2. Portal crane jib beams are packed by plastic woven cloth. It can reduce abrasion when transport. Delivery: 1. If the size of whole crane are suitable for container ship, usually by container; 2. If the size is too big, usually by bulk ship or by container after truncation; 3. Transport ways are based on reducing;
Single jib portal crane Luffing speed:	15m/min ~60m/min;

Brief introduction:

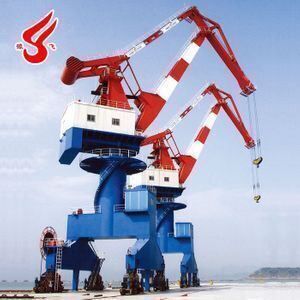

Loading Unloading Offshore Pedestal Port Crane Rotating 360 Degree

Introduction of four link type portal crane:

Four link type portal crane has been extensively applied to loading and unloading at port and material handing at dockyard and metallurgy industry.

1.Steel frame

3.Luffing mechanism

5.Crane travel mechanism

7.Electrical equipment

8.Other accessory equipments for safety.

Use of four link type portal crane:

Four link type portal crane is a kind of hoisting machine especially used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo, also used in materual handing dockyard, ship building and repairing yard, metalluygy industry.

Referenced standards:

2.GB6067-85 lift equipments safety specification.

GB3811-2008 crane design standards.

5.FEM standards.

Working condition of four link type portal crane:

2.In-service the wind speed should be no higher than 20m/s.

4. Not applicable to explosive environment, fire danger carrier and places full of corrosive gas.

6.Please notice in advance when to grab underwater materials or special materials.

7.Water roof cloth is needed in out door operation.

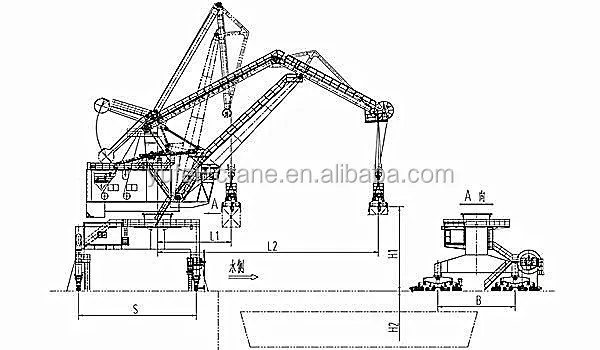

Technical data four link type portal crane

Advantages of four link type portal crane:

2. High working efficiency, compact frame,

4. Convenience maintenance, nice appearance and so on

6. Especially suitable for the port lifting.

7. Designed according to your request.

Safety devices of four link type portal crane:

Mechanical		Electrical
No	Item	No	Item
1	Overload limiter	1	Main isolating switch
2	Limit switch(lifting and traveling)	2	Short-circuit protection
3	Interlock protection device	3	Under-voltage protection
4	Buffer	4	Zero protection
5	Rail tongs,anchor device	5	Motor overload protection
6	Rail clear plate	6	Emergency stop system
7	Protective cover	7	Current overload protection system
8	Anti-collision device	8	Security chain protection
9	Anti-overturn safety device	9	Ground protection
10	Anemometer

Main Products

YUFEI cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on. The crane series includes Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
