Hot Sale 75t RTG Mobile Port rubber type Container Gantry Crane Price

Supplier: Henan Weihua Heavy Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Jack Zhou
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	;	Applicable Industries:	port;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Main Electrical Parts:	Schneider;
Max. Lifting Height:	28m;	Application:	port, outdoor;
Port:	Shanghai, Qingdao, Tianjin and other ports;	Payment Terms:	L/C,T/T,Western Union;
Rated Loading Capacity:	40ton;	Local Service Location:	Egypt,Brazil,Pakistan,India,Russia,Thailand,Malaysia,Kenya,Bangladesh,South Africa,Kyrgyzstan,Nigeria;
Packaging Detail:	Hot Sale 75t RTG Mobile Port rubber type Container Gantry Crane Price: international standard packaging or as your requirement;	Work Duty:	A7-A8;
Rated Lifting Moment:	different;	Machinery Test Report:	Provided;
Condition:	New;	Portal crane Lifting Speed:	18m/min ~56m/min;
Place of Origin:	Henan China;	Installed capacity:	220~450KW;
Certification:	CE,3C,CNAS;	Model Number:	RTG;
Marketing Type:	New Product 2020;	Video outgoing-inspection:	Provided;
Core Components:	Motor;	Feature:	Portal Crane;
Span:	different;	Supply Ability:	20000 Set/Sets per Year Hot Sale 75t RTG model Mobile Port rubber tyre Container Gantry;
Warranty of core components:	1 Year;	Type:	Rubber Tyre container Gantry Crane;
Showroom Location:	Egypt,Pakistan,Russia,Thailand,Kenya,South Korea,Algeria,Sri Lanka,Bangladesh,South Africa,Kazakhstan,Tajikistan;	Power Source:	380V,50Hz;
Structure:	Box;	Product name:	75t RTG model Mobile Port rubber tyre Container Gantry Crane Price;
Authentication:	IQNET;	Brand Name:	WEIHUA;
Warranty:	12 months;

Hot Sale 75t RTG Mobile Port rubber type Container Gantry Crane Price

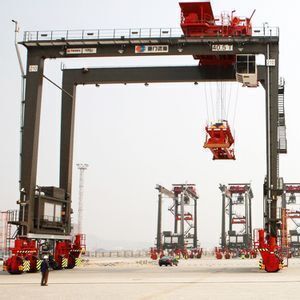

Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.

Contact us for more information !

Environmental Conditions:

1,The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2,The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3,In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4,The working duty is A6-A7.
5,The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6,The crane which has the special requirement for working conditions, can be manufactured following the contracts.

Modular design:

According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module,

steel structure module, founction module, general module and etc.

The standard module production ensures product stability of quality and shortens the delivery cycle.

Advanced Manufacturing Technology:

Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.

Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.

High Reliability:

The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.

The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.

Safety features:

1. Automatic rectify deviation control

2. Weight overload protection device

3. Top quality polyurethane buffer

4. Phase protection

5. Lifting limit switch,cross traveling limit switch,long traveling limit switch

6. Voltage lower protection function

7. Emergency stop system

8. Current overload protection system

9. Lighting system

10. Audio and video alarm system

Detailed Images

Sketch Drawing

Technical Parameters

Contact me for more parameters and quotation !

Model	LJ35/40-23	LightType LJ40-23
Capacity(under spreader) (t)	35,40	40
Work Duty	A7,A8	A6,A7
Span (m)	23.47	23.47
Lifting Height (m)	12.2~17.8	16.5
Stack Layers/Passing Layers	3/4~5/6	5/6
Container Model	20',40',45'	20',40',45'
Spreader Rotating Angle	±5°	±5°
Hoisting Speed (m/min)	13/26,23/52	12/18,18/28
Cross Travel Speed (m/min)	50,70	24
Long Travel Speed (m/min)	Full Load-90,Without Load-130	Full Load-20,Without Load-40
Max.Wheel Load (kN)	310	310
Total Rating (kW)	150,230	110,150
Power Supply	Electric,Diesel engine,Electric-Diesel drive

What's your phone number and email address?We'll give you our best offer !

Main Products

WEIHUA crane meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

MORE PRODUCT SERIES

Company Information

Weihua Group was founded in 1988. After 32 years of development, it has developed products such as lifting machinery, port machinery, mining machinery, truck cranes, electric hoists, reducers, parking equipment, concrete prefabricated component production lines, special robots and other products. The main equipment manufacturing and the two major business segments, mainly construction contracting. The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.

Packaging & Shipping

FAQ

Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
