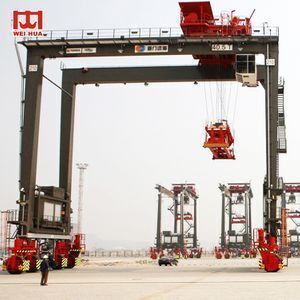

Double Girder RTG 35 Ton Mobile Container Used Gantry Crane For Sale

Supplier: Henan Weihua Heavy Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Jack Zhou
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rated Loading Capacity:	40ton;	Supply Ability:	20000 Set/Sets per Year;
Warranty:	12 months;	Condition:	New;
Oversea Installation:	yes;	Port:	Shanghai, Qingdao, Tianjin and other ports;
Brand Name:	WEIHUA;	After-sales Service Provided:	Field maintenance and repair service;
Model Number:	RTG;	Container Model:	20',40',45';
Type:	Rubber Tyre Gantry Crane;	Power Source:	380V,50Hz;
Cross Travel Speed:	50,70.24m/min;	Packaging Detail:	Double Girder RTG 35 Ton Mobile Container Used Gantry Crane For Sale:international standard packaging or as your requirement;
Certification:	CE,3C,CNAS,SGS;	Payment Terms:	L/C,T/T,Western Union;
Place of Origin:	Henan China;	Brake Control:	Hydraulic/Electric/Mechanical;
Max. Lifting Height:	28m;	Product Specification:	1030,1633;
Span:	different;	Feature:	Portal Crane;
Overload Protection:	yes;	Model:	LJ35/40-23; light type LJ40-23;
Application:	port, outdoor;	Rated Lifting Moment:	different;

Double Girder RTG 35 Ton Mobile Container Used Gantry Crane For Sale

Product Description:

Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.

Contact us for more information !

Product structure :

Environmental Conditions:

1,The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2,The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3,In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4,The working duty is A6-A7.
5,The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6,The crane which has the special requirement for working conditions, can be manufactured following the contracts.

Modular design:

According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module,

steel structure module, founction module, general module and etc.

The standard module production ensures product stability of quality and shortens the delivery cycle.

Advanced Manufacturing Technology:

Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.

Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.

High Reliability:

The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.

The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.

Safety features:

1. Automatic rectify deviation control

2. Weight overload protection device

3. Top quality polyurethane buffer

4. Phase protection

5. Lifting limit switch,cross traveling limit switch,long traveling limit switch

6. Voltage lower protection function

7. Emergency stop system

8. Current overload protection system

9. Lighting system

10. Audio and video alarm system

Technical Parameters:

Please contact me for customized parameters !

Model	LJ35/40-23	LightType LJ40-23
Capacity(under spreader) (t)	35,40	40
Work Duty	A7,A8	A6,A7
Span (m)	23.47	23.47
Lifting Height (m)	12.2~17.8	16.5
Stack Layers/Passing Layers	3/4~5/6	5/6
Container Model	20',40',45'	20',40',45'
Spreader Rotating Angle	±5°	±5°
Hoisting Speed (m/min)	13/26,23/52	12/18,18/28
Cross Travel Speed (m/min)	50,70	24
Long Travel Speed (m/min)	Full Load-90,Without Load-130	Full Load-20,Without Load-40
Max.Wheel Load (kN)	310	310
Total Rating (kW)	150,230	110,150
Power Supply	Electric,Diesel engine,Electric-Diesel drive

Related products and pictures

What's your phone number and email address?We'll give you our best offer !

Main Products

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

MORE PRODUCT SERIES

Quality Control

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.

Company Information

From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, ¥100,000 investment in the workshops to the current development of The employees is more than 6,800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached ¥10,000,000 in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

Packaging&Delivery

FAQ

Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
