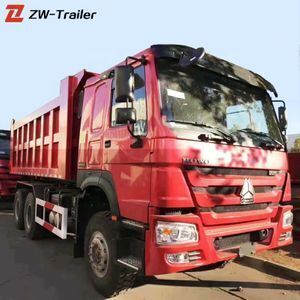

Discount Dumper Self Loading Star Product HOWO Mining 6X4 Dump Truck

Product details
Brand:SIONTRUK;Color:Optional;
Certification:ISO;Transmission Type:Manual;
Horsepower:351 - 450hp;Condition:New;
Fuel Type:Diesel;Packaging Detail:Nude;
Tire:12.00R20;Capacity (Load):11 - 20t;
Port:Any Port In China for Discount Dumper Self Loading Star Product HOWO Mining 6X4 Dump Truck;Transmission:HW19710;
Payment Terms:L/C,T/T;Place of Origin:Shandong China;
Gross Vehicle Weight:12220;Driving type:Left Hand Drive;
Cab:HW76;Drive Wheel:6x4;
Type:Rear Dump;Supply Ability:100 Set/Sets per Month 6X4 Dump Truck;
Dimensions (L x W x H) (mm):8214*2496*3170;Brand Name:Sinotruck;
Emission Standard:Euro 2;Engine:WD615.47;
Product name:6X4 Dump Truck;Engine Capacity:4 - 6L;





Discount Dumper Self Loading Star Product HOWO  Mining 6X4 Dump Truck







Product Description

6X4 dump truck is a type of truck that carries a dump truck with a dump truck. Also known as dump truck. By the car chassis, hydraulic lifting agencies, cargo and take-off devices and other components. Dump trucks in civil engineering, often with excavators, loaders, belt conveyors and other construction machinery joint operations, constitute loading, transportation and unloading production lines, earthwork, sand, bulk loading and unloading transport.



Used dump trucks :Sinotruk used dump trucks already had 40000Km to 80000Km,after maintenance,will still run over 500000Km.Exchange a new cab,and produce new load box that size is 5400x2500x1500mm. exchange a new engine and exchange new hydraulic lift cylinders. Made year 2014 to 2017 year.

We have factory to Refurbished truck, can follow many requirements from customers,Exchange a new cab,and produce new load box that size is 5400x2500x1500mm. exchange a new engine and exchange new hydraulic lift cylinders.

Trailer Parameters



Truck Model

ZZ3257S3647B

Driving Type

LHD

Truck Brand

SINOTRUK –HOWO

Dimension(Lx W xH)(unloaded)(mm)

8214*2496*3170



Cargo body size (L*W*H, mm) (mm)

5600x2300x1500=19.3 m3, bottom:8mm, side:6mm

Lift type of Carriage

Middle Lift

Approaching angle/Departure angle(°)



19/26

Overhang(front/rear) (mm)

1500/1670

Wheel base (mm)

3600+1350

Max speed(km/h)

75

Dead weight(kg)

12650

Gross Vechicle wegiht (kg)

12220

Fuel tanker capacity(L)

300

Fuel consumption(L/km)

20-40 L/100 km

Clutch

Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Fuel type

Diesel

Horse Power, max(kw/rpm)

371HP

Emission

EURO 2

Model

CNHTC Brand WD615.47

Transmission

Model

HW19710,10 forwards and 2 reverse

Brake system



Service brake

Dual circuit compressed air brake

Auxiliary brake

Engine exhaust brake

Steering system



Model

8118

Front axle

HF9

Rear axle

HC16

Color

Optional

Tyre

12.00R20  Chinese Brand   NO.10+1=11 tyres

Electrical system



Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW76 cab, one sleeper, with air-condition



Our Services

1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.

2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.

3: We are serious about after-sales service.

Our Service:

1.Reply your inquiry in 12 working hours;

2. Experienced staffs answer all your questions;

3.Customer’s design is available for certain products(OEM);

4.Spare parts for all types of engine machinery with reasonable price;

5.Different kinds of semi trailer can be provided with competitive price.

Company Information

Shandong ZF TruckTrailer Manufacture Co., Ltd is appointed Special Vehicle Manufacturer approved by NDRC (National Development and Reform Commission) whose products are into 'Announcement' management of national vehicles.The company is science, industry, and commerce integrated enterprise which combines products design, research development, production and marketing, owning Low bed semi trailer,Container semi trailer, Oil/fuel tank trailer,Side wall semi trailer, Cargo semi trailer, Box semi trailer,Dump truck trailer,Module trailer,LPG trailer and so on,more than 100 variety products,welcome to contact us.

Packaging & Shipping

Dump trucks are transported in roll-on, bulk, frame,We will help customers arrange the most cost-effective transportation methods.



Our Customer

Our factory hosted customers from all over the world. They visited our production workshop, painting workshop, and discussed professional problems with our engineers and technicians, and were well resolved.
