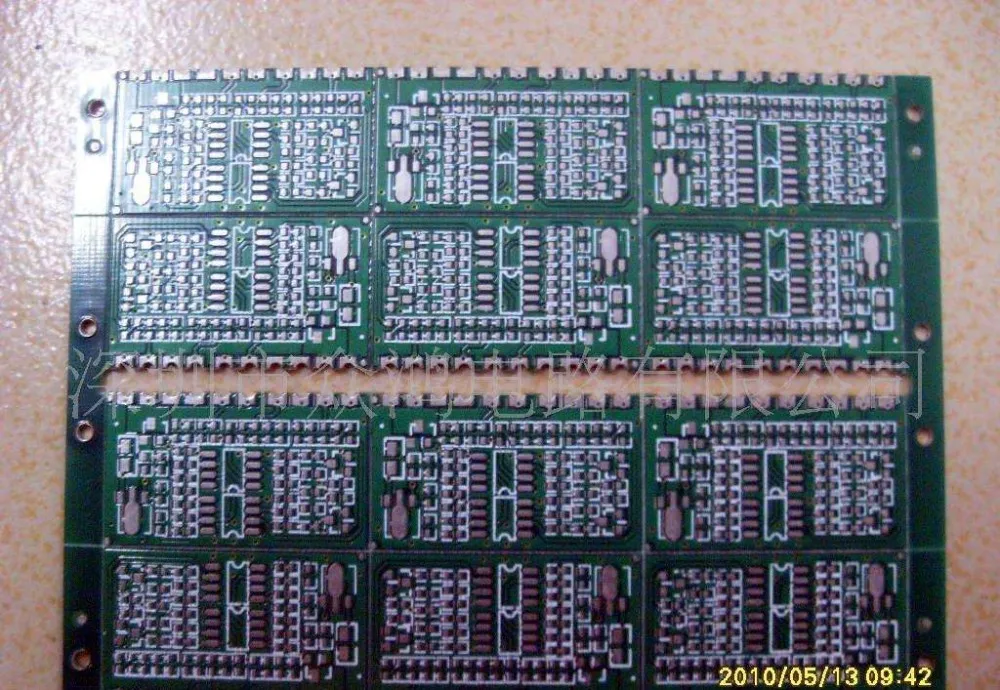

Custom wholesale half hole pcb board welding machine circuit board

Product details
Min. Hole Size:0.15mm;Color:Green,Black,Blue,Red,Yellow,W;
Supply Ability:100000 Square Meter/Square Meters per Month welding machine circuit board;Board Thickness:1.5mm+/-0.1mm;
Copper Thickness:0.5oz, 1oz, 2oz, 3oz;Keywords:welding machine circuit board;
Brand Name:LYH;Model Number:Customized;
Place of Origin:China;Number of Layers:2-16Layer;
Impedance tolerance:±10%;Packaging Detail:Vacuum and Bubble package,and then in high quality cartons.;
Board thickness:0.3-3.5mm;MOQ:1pcs;
Maritime port:Shenzhen, Nanchang, Jiujiang, Ganzhou;Min. Line Width:0.075mm;
Product name:Custom wholesale half hole pcb board welding machine circuit board;Laminate:FR-4,Halogen free,High TG,Resin,etc;
Surface Finishing:Gold finger,HASL,OSP,ENIG,etc.;Other Surface finish:Immersion silver/Tin/Au,Gold;
Min. Line Spacing:0.075mm;Layer Qty:Customized,2-16 layers available;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;Port:Shenzhen, Nanchang, Jiujiang, Ganzhou;
Base Material:FR-4,Resin,High TG,etc;
Product Description

Custom wholesale half hole pcb board welding machine circuit board

Advantages

1. Professional high precision PCB & PCBA manufacturer.
2. Core team with more than 10 years rich experience in PCB & PCB assembly industry
3. High & stable quality products

4. Prompt delivery

5. Competitive and reasonable price
6. Good after-sales Service

Technical Specifications Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LYH
Model Number:
Customized
Number of Layers:
Customized, up to 16 Layers
Base Material:
FR-4,Resin,Halogen free,High TG etc
Copper Thickness:
0.5oz, 1oz, 2oz, 3oz,etc.
Board Thickness:
1.5mm+/-0.1mm
Min. Hole Size:
0.15mm
Min. Line Width:
0.075mm
Min. Line Spacing:
0.075mm
Surface Finishing:
Gold finger,HASL/HASL LF,OSP,ENIG,Immersion,etc.
Laminate:
FR-4,Halogen free,High TG etc
Max. Pannel size:
22×32 (558mm×812mm)
Board thickness:
0.3-3.5mm
Solder mask color:
Green,Black,Blue,Red,white etc.
Board thickness Tol.:
±10%
Stackup alignment:
±2mil (±50μm)
Min.Via/PTH ring size:
6mil (0.15mm)
Min.line space/width:
3mil/3mil (0.075mm/0.075mm)
Max.PTH hole size:
5.0mm
Min.inner layer PAD:
4mil (0.1mm)
Min.inner layer thick:
4mil (0.1mm)
Inner layer Cu thick:
0.5-2.0 oz
Hole wall thick:
18-30μm
HAL(LF) tin thick:
150-1000u (3.75-25μm)
Outlayer Cu thick:
0.5-3.0 oz
Min.drill hole:
0.15mm
Hole to hole position:
±2mil (±50μm)
Hole tolerance:
±2mil (±50μm)
Inpendence control tolerance:
±10%
Etching tolerance:
±10%
Through hole aspect ratio:
10:1
Max.pulg via hole:
0.5mm
PAD alignment accuracy:
3mil/3mil (0.075mm/0.075mm)
Testing:
100% E-Testing
Min.solder mask bridge:
3mil (0.075mm)
ENIG thick:
Au:1-3u,Ni:100-300u
Max. hard gold thick:
30u" (0.75 μm)
Max. twist & warp:
0.75%
Capacity:
up to 100,000㎡/month
Surface finish:
HAL/HAL LF,OSP,ENIG,Immersion gold/silver/Tin/Au(EING), HASL, Gold finger board, Au plating board,Tin/Ce plating board,Carbon oil board,HAL,Naked Board,Bare copper,etc

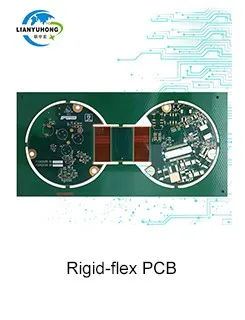

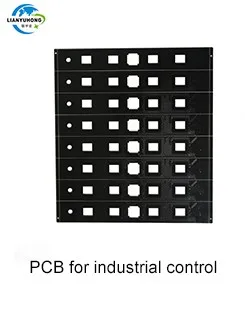

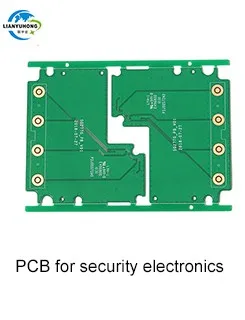

Related Products
Company Information
Our Service
Application

Our products are widely used in automotive electronics,industrial control,power supply,medical device,LED,security,aerospace,IOT,GPS tracking device and so on.

Packing & Delivery

Packing

Vacuum and Bubble package,and then in high quality cartons.

Delivery/Shipping

1. Sample delivery: 3 days or so.
2. Order delivery: 7-10 days, depends on the qty,tech & precision.
