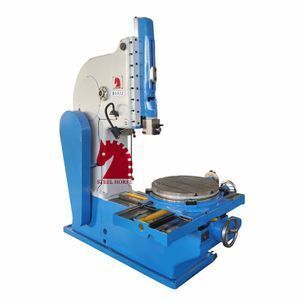

Supply Economy B5032 vertical keyway slotting machine

Click here to contact

Product details

Condition:	New;	Voltage:	380V,50Hz or as client need;
Max.dimensions of workplace(L*H):	485*200mmm;	Dimension(LWH):	194513251980mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Delivery Detail:	0 days after payment;
color:	white,blue,yellow,green;	Warranty:	1year;
Package Type:	111;	Certification:	CE;
Weight:	2400kg;	Single gross weight:	4,500 KG;
Brand Name:	Steel horse;	Single package size:	150X150X200 cm;
Power(W):	3kw;	Place of Origin:	Shandong China (Mainland);
Selling Units:	Single item;

Product Description

The machine plane type surface and keyway for the processing of various parts,etc.,

for single or small batch production workshop is most appropriate.

Means for rotating the main crank gear is changed to rotary motion of the reciprocating

motion of the ram,the table can be vertical,horizontal and rotary,manual and automatic

feed and fast moving, the table feed stops automatically in case of failure give.

The machine attentive design,standardization,universal,serialization,high degree of

automation,reasonable layout,compact coordination symmetry.Appearance,easy maintenance.

Work range	B5020	B5032
Max.slotting length	200mm	320mm
Max.dimensions of workplace(L*H)	485*200mmm	600*320mm
Max.weight of workpiece	400kg	500kg
Max.cutting force	5500N	7500N
No.of strokes per minutem	32,50,80,125,r ,p,m	20.32.50.80.r.p.m
Vertical ajustment of ram	230mm	315mm
Inclination of ram	0-8	0-8
Distance between tool holdingsurface and column front	485mm	600mm
Max.tool shank size (W*H)	25*40mm	25*40mm
Table diameter	500mm	630mm
Distance between table surface and low end of ram	320mm	490mm
Max.longitudinal travel of table	500mm	620mm
Max.cross travel of table	500mm	560mm
Range of table longitudinal and cross power feeds	0.08-1.12mm	0.08-1.12mm
Range of table power feeds	0.052o-0.783deg	0.052°-0.7893deg
Power of rapid drive motor	3kw	4kw
Rotating speeed of main drive motor	1430r.p.m	960r.p.m
Overall dimensions (LWH)	194513251980mm	229015252285mm
Weight(approx)	2400kg	3500kg
