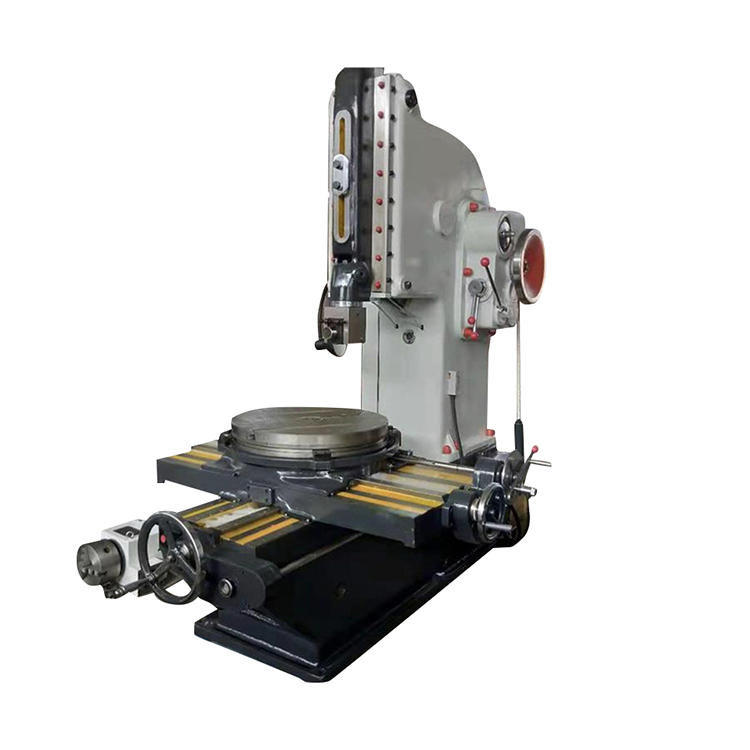

B5032 New Design Automatic Slotting CNC Slotting Machine

Click here to contact

Product details

Mechanical test report:	if	Power (kW):	5.5
Workpiece weight:	500 kg	payment terms:	wire transfer
Warranty:	1 year	Local service location:	not any
Weight (kg):	3200 kg	Certification:	International Organization for Standardization
Table diameter:	630mm	Origin:	Jiangsu, China
After-sales service provided:	Online support, video technical support	Dimensions (LWH):	226114952245mm
Sleeper travel:	320mm	Cutting force:	7500N
Packaging Details:	Plastic wrap or wooden box	Video shipment inspection:	if
Tool size (length and width):	25x40mm	Showroom location:	not any
Sleeper inclination:	0~8°	brand:	AGT
and the front wall of the bed:	is 600mm	Health status:	new
Core component warranty:	1 year	Applicable industries:	Manufacturing plants, machinery repair shops
Main selling points:	high security level	Voltage:	380/220
After warranty service:	Video technical support, online support, spare parts	Sleeper vertical adjustment distance:	315mm
Core components:	Gearboxes, motors, gears, pumps	Marketing Type:	New Products 2021
Model:	B5032	Plug length:	320mm

Product Description

Model	B5032
sleeper stroke	320mm
Plug length	320mm
Workpiece processing size (length * width)	600×320mm
Workpiece weight	500 kg
cutting force	7500N
The number of pillows reciprocating per minute is	20, 32, 50, 95 rpm
Vertical adjustment distance of sleepers	315mm
Sleeper inclination	0~8°
Distance between supporting surfaces of cutter head the front wall of the bed is	600mm
Tool size (length*width)	25×40mm
table diameter	630mm
The distance between the workbench and the lower end of the slider	790mm
Longitudinal movement distance of workbench (moving/manual)	480/620mm
Workbench lateral movement distance (moving/manual)	480/560mm
Table vertical and horizontal feed range	0.08-1.21mm
Table rotary feed range	0.052-0.783mm
main motor power	5.5KW
Machine tool profile size (lengthwidthheight)	2261×1495×2245mm
Machine weight (approx.)	3200 kg
